Variants

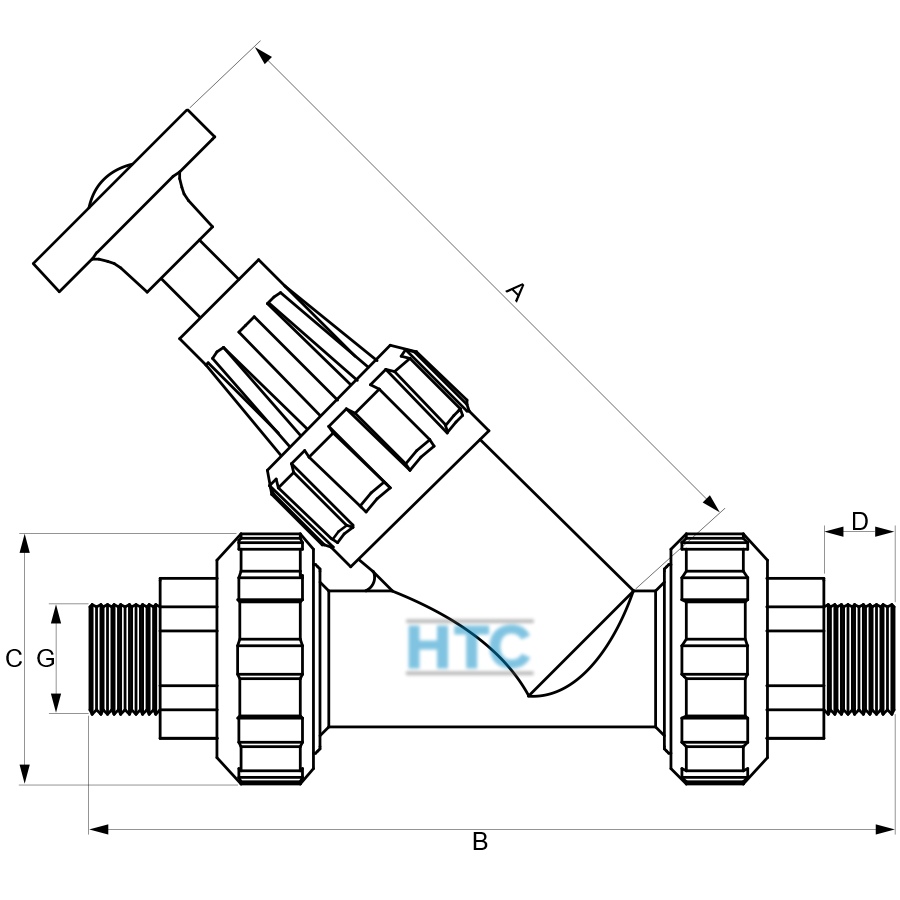

Item no.
Variation
A
B
C
D
DN
G
Weight
Price
Quantity
AK0052.0AG.020
1/2"
146
170
52
14
15
1/2" (20,96mm)
271
36,94 €*
pc:
AK0052.0AG.025
3/4"
173
196
59
16
20
3/4" (26,44mm)
404
50,37 €*
pc:
AK0052.0AG.032
1"
195
223
69
19
25
1" (33,25mm)
601
61,81 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Schrägsitz Absperrventil, 2fach Aussengewinde

Anschluss:
2fach Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Zertifikat:
WRAS Zertifikat (Trinkwasser)
Farbe:
Grau, Sterngriff Blau
Einsatzbereich:
Pikto
Zertifikat:
WRAS Qualitätslogo
WRAS geprüfte Industriequalität für den direkten Einsatz mit Trinkwasser sowie nährenden Flüssigkeiten.

Optische Positionsanzeige


Die Welle zum Sterngriff ist mit einer optischen Positionsanzeige ausgestattet. Die Skala ermöglicht es die Einstellung zu definieren und bei Veränderung der Durchflussmengeneinstellung die genaue vorherige Position leicht wieder herzustellen.

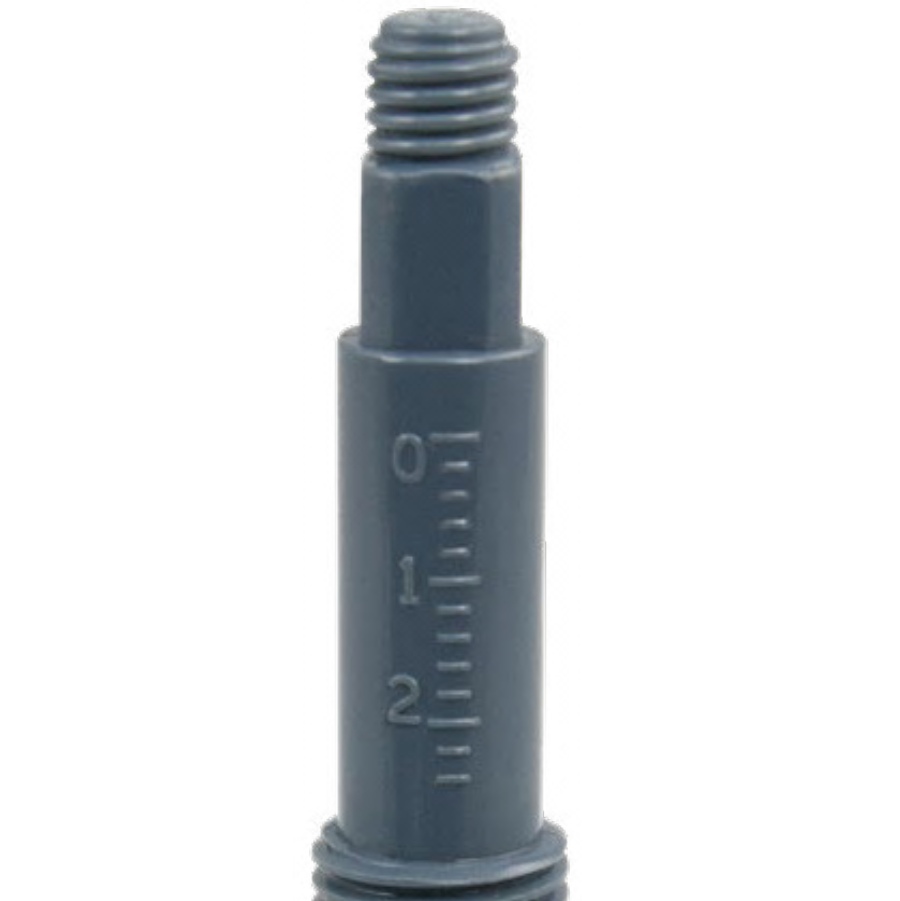

Schrägsitz Absperrventil Detail Einstellmöglichkeit

orange dot Ersatzteile Schrägsitz Absperrventil Hidroten Serie AK0050

DOWNLOAD WRAS Zertifikat (Trinkwasser)
DOWNLOAD RoHS Konformitätserklärung - Hidroten

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
