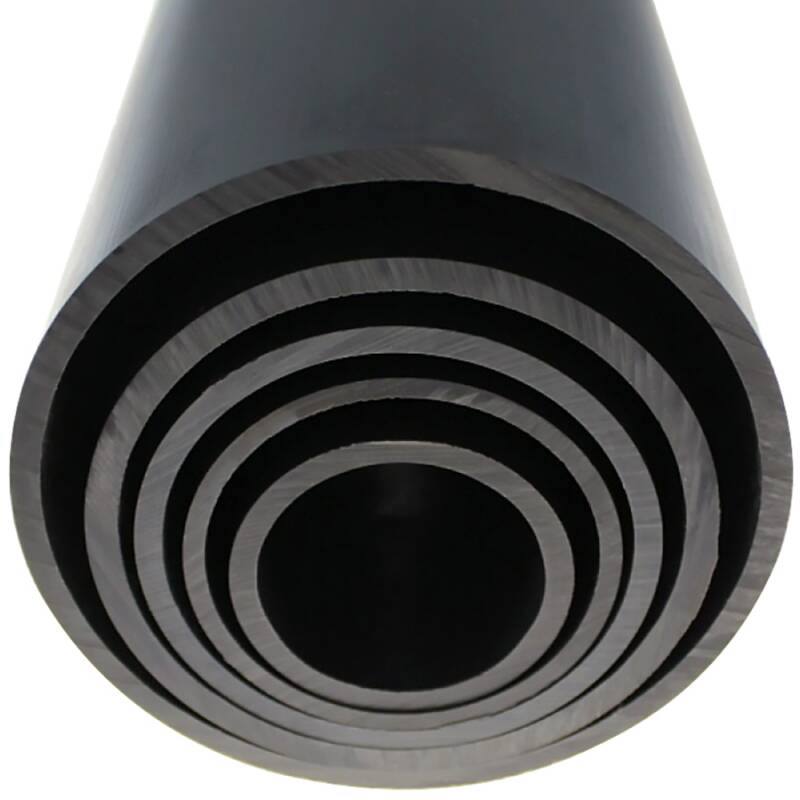

Tubo in PVC-U - 110mm

Codice articolo: AR0110.P10
a partire da
11,89 €
compr. 19% IVA , più Spedizione
  • disponibilità immediata

wichtiger Hinweis

Rohrzuschnitt 1m und 2m werden speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.

  • disponibilità immediata
Varianti

Cod. Art.
Versione
D
DN
W
Lunghezza
EN1452 (PN)
Prezzo
Quantità
AR0110.P10.001
1m Länge ohne Muffe
110
max. 101,6
mind. 4,2
1m ±1%
10
11,89 €*
Tubo:
AR0110.P10.002
2m Länge ohne Muffe
110
max. 101,6
mind. 4,2
2m ±1%
10
Keine Express-Lieferung
23,79 €*
Tubo:
Quantitá minima d'ordine: 2
AR0110.P10.005
5m Länge mit Muffe
110
max. 101,6
mind. 4,2
5m ±1%
10
52,32 €*
Tubo:

compr. 19% IVA , più Spedizione

Tutte le dimensioni sono espresse in millimetri, tutti i pesi sono espressi in grammi.
Le immagini sono fornite al solo scopo illustrativo, non costituiscono elemento contrattuale e si riferiscono ad una sola variante/dimensione. Le immagini, i dati tecnici, le dimensioni e i disegni non sono vincolanti. Ci riserviamo il diritto di apportare modifiche in qualsiasi momento senza preavviso. Le dimensioni sono definite e mostrate piú chiaramente nella descrizione dell'articolo. Altre dimensioni fungono solo da supporto e migliore chiarificazione.

Descrizione

PVC-U Rohr Industrierohr Grau 110 x 4,2mm - PN 10 bar

A-Ø:
110mm
Wandstärke:
siehe Tabelle
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck:
siehe Tabelle (DIN = DIN8062) (EN = EN 1452-2)
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:

Hinweis: Nenndruck bis 90mm, ISO 4065 basierend auf Auslegungskoeffizient C = 2,5. Nenndruck ab 110mm, ISO 4065 basierend auf Auslegungskoeffizient C = 2,0.

  • Abmessungen nach EN 1452-2
  • Lieferlänge +/- 1%
  • 1m Länge ohne Muffe
  • 2m Länge ohne Muffe
  • 5m Länge mit Muffe
  • Die Maßeinheit DN ergibt sich aus der Wandstärke und ist nach DIN 8062 als Soll plus Toleranz zu sehen und kein Nutzmaß

Unsere Qualität - keine Kompromisse

  • ausschließlich Reingranulat - kein Recyclinggranulat
  • LEAD FREE - frei von Blei oder andere Schwermetalle
  • Top Qualität zum top Preis
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD technisches Datenblatt PVC-U Rohr 110 x 4,2mm, PN 10

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD PVC-U technische Charakteristik
DOWNLOAD chemische Beständigkeit von Kunststoffen
