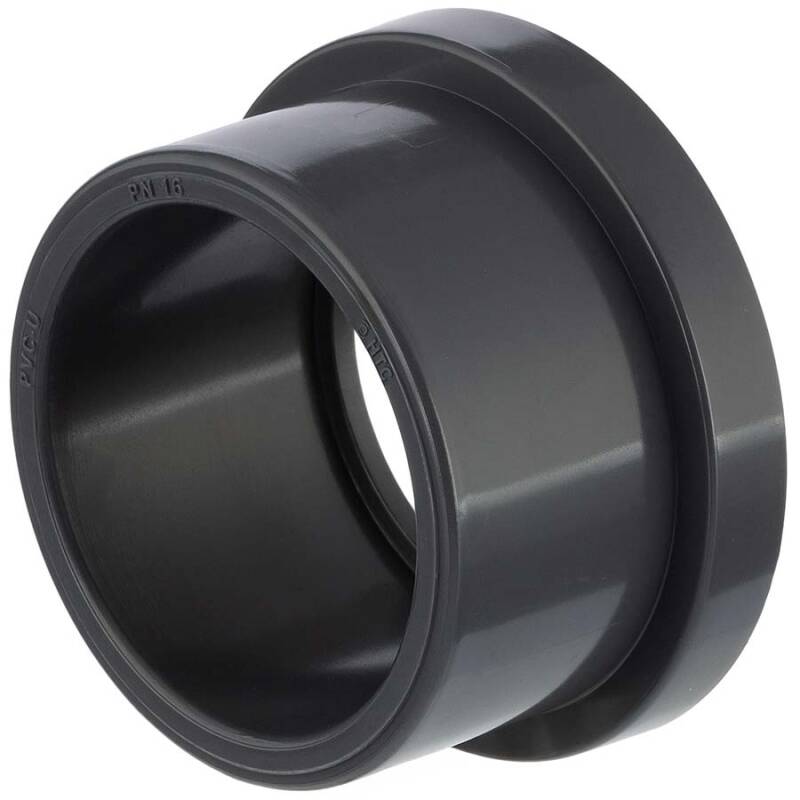

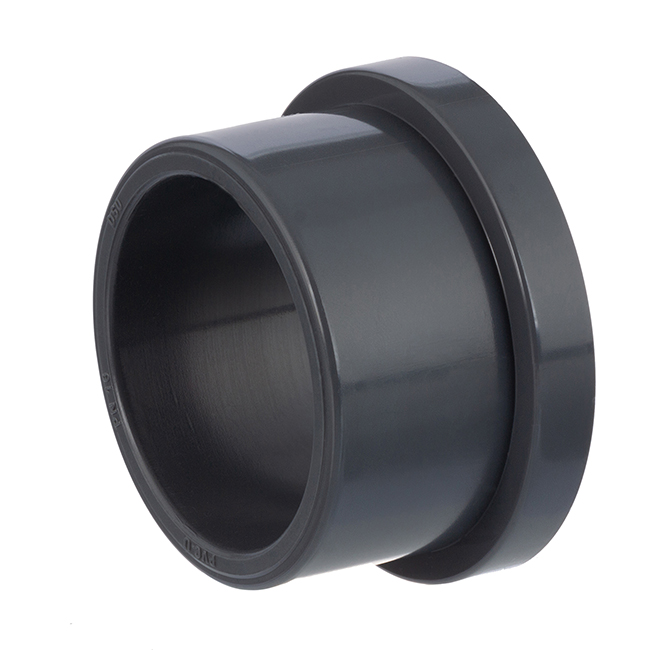

Collare, in PVC-U

Codice articolo: AF0701
Scegli la variante
Industrie

a partire da
0,52 €
compr. 19% IVA , più Spedizione
  • disponibilità immediata
  • disponibilità immediata

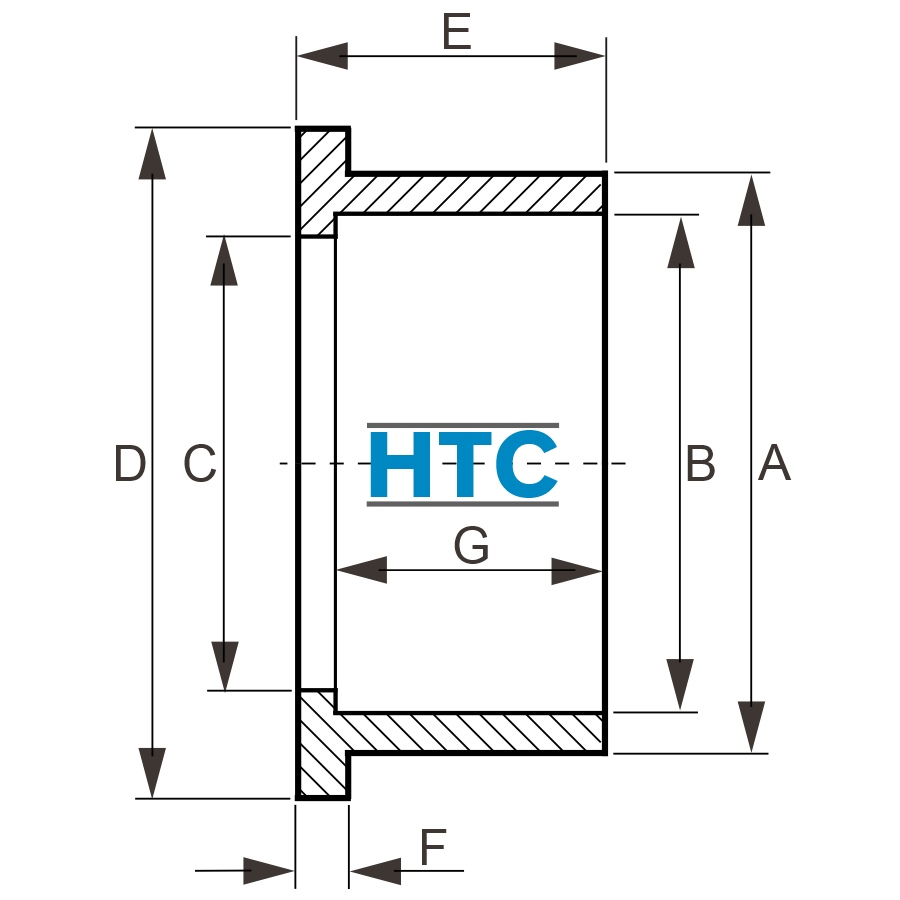

Varianti

Cod. Art.
Versione
A
B
C
D
E
F
G
Peso
Prezzo
Quantità
AF0701.000.020
20mm
27
20
15
34
19
6
16
10
0,52 €*
pz:
AF0701.000.025
25mm
33
25
22
41
22
7
19
15
0,55 €*
pz:
AF0701.000.032
32mm
41
32
25
50
25
7
22
23
0,62 €*
pz:
AF0701.000.040
40mm
50
40
36
61
29
8
26
44
0,92 €*
pz:
AF0701.000.050
50mm
61
50
40
73
34,5
8,5
32
62
1,55 €*
pz:
AF0701.000.063
63mm
76,5
63
50
91
42
4
38
116
1,64 €*
pz:
AF0701.000.075
75mm
85
75
68
97,5
48,5
10
45
114
1,92 €*
pz:
AF0701.000.090
90mm
105
90
80
121
57
10,5
50
185
2,83 €*
pz:
AF0701.000.110
110mm
130
110
103
150
69
13
61
297
4,56 €*
pz:
AF0701.000.125
125mm
147
125
119
170
75
13
69
583
7,81 €*
pz:
AF0701.000.160
160mm
188
160
150
213
90
16
86
1097
14,13 €*
pz:
AF0701.000.200
200mm
231
200
196
255
112
18,5
104
1861
31,01 €*
pz:
AF0701.000.315
315mm
345
315
288
376
177
33
168
4780
90,45 €*
pz:

compr. 19% IVA , più Spedizione

Tutte le dimensioni sono espresse in millimetri, tutti i pesi sono espressi in grammi.
Le immagini sono fornite al solo scopo illustrativo, non costituiscono elemento contrattuale e si riferiscono ad una sola variante/dimensione. Le immagini, i dati tecnici, le dimensioni e i disegni non sono vincolanti. Ci riserviamo il diritto di apportare modifiche in qualsiasi momento senza preavviso. Le dimensioni sono definite e mostrate piú chiaramente nella descrizione dell'articolo. Altre dimensioni fungono solo da supporto e migliore chiarificazione.

Descrizione

PVC-U Bundbuchse für Losflansch

Anschluss:
Bundbuchse mit Klebemuffe, in Verbindung mit Losflansch einzusetzen
technischer Hinweis:
ausschließlich für den Einsatz mit Losflansch verwendbar -
kein Ersatzteil von Armaturen o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser | ab 160mm max. 10 bar
Material:
PVC-U
Farbe:
Grau
Hersteller:
Diverse
Einsatzbereich:
Pikto
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.
DOWNLOAD RoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
DOWNLOAD Montageanleitung für Flanschverbindungen
