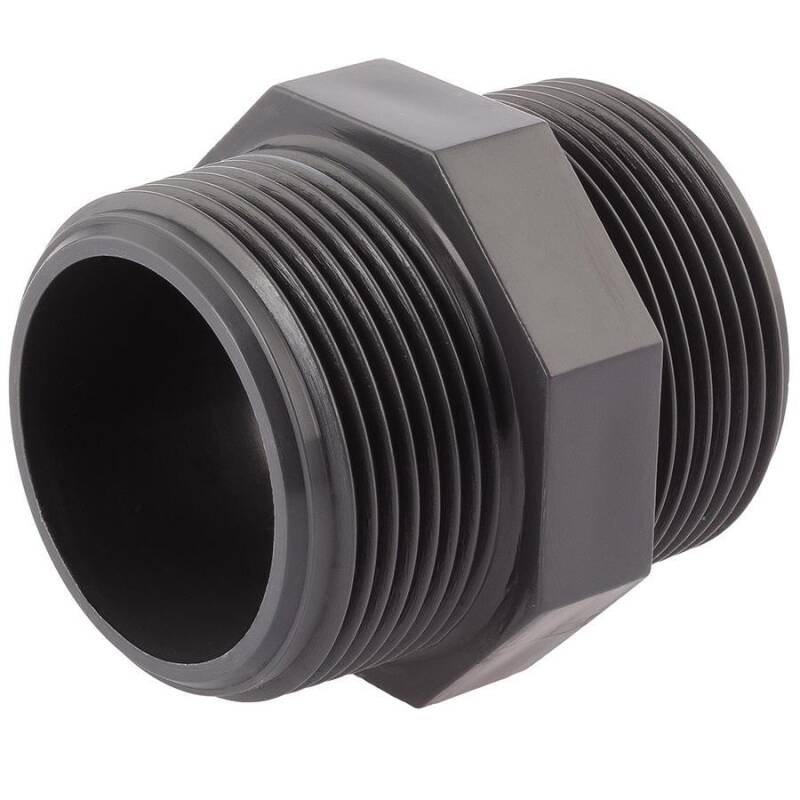

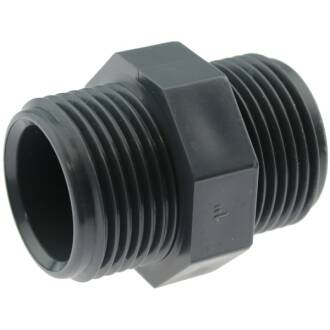

Nipplo maschio in PVC-U

Codice articolo: AF0104
a partire da
0,56 €
compr. 19% IVA , più Spedizione
  • disponibilità immediata
  • disponibilità immediata
Varianti

Cod. Art.
Versione
DN
G
L
L1
SW
Prezzo
Quantità
AF0104.000.012
1/4"
8
1/4" (13,16mm)
32
12
19
1,36 €*
pz.:
AF0104.000.016
3/8"
10
3/8" (16,66mm)
32
11
24
0,68 €*
pz.:
AF0104.000.020
1/2"
14
1/2" (20,96mm)
40
15
24
0,56 €*
pz.:
AF0104.000.025
3/4"
20
3/4" 26,44mm)
45
16
32
0,63 €*
pz.:
AF0104.000.032
1"
25
1" (33,25mm)
47
19
40
0,84 €*
pz.:
AF0104.000.040
1 1/4"
30
1 1/4" (41,91mm)
55
21
50
1,09 €*
pz.:
AF0104.000.050
1 1/2"
37,5
1 1/2" (47,81mm)
57,5
21
55
1,25 €*
pz.:
AF0104.000.063
2"
45,5
2" (59,61mm)
65
25
65
1,67 €*
pz.:
AF0104.000.075
2 1/2"
60
2 1/2" (75,18mm)
78
31
80
4,44 €*
pz.:
AF0104.000.090
3"
69
3§ (87,88mm)
84
34
94
5,80 €*
AF0104.000.110
4"
96
4" (113,03mm)
96
39
119
11,88 €*
pz.:

compr. 19% IVA , più Spedizione

Tutte le dimensioni sono espresse in millimetri, tutti i pesi sono espressi in grammi.
Le immagini sono fornite al solo scopo illustrativo, non costituiscono elemento contrattuale e si riferiscono ad una sola variante/dimensione. Le immagini, i dati tecnici, le dimensioni e i disegni non sono vincolanti. Ci riserviamo il diritto di apportare modifiche in qualsiasi momento senza preavviso. Le dimensioni sono definite e mostrate piú chiaramente nella descrizione dell'articolo. Altre dimensioni fungono solo da supporto e migliore chiarificazione.

Descrizione

PVC-U Doppelnippel, 2fach Aussengewinde

Anschluss:
2fach Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.
DOWNLOADRoHS Bestätigung HTC

DOWNLOADPVC-U technische Charakteristik
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings

PVC-U PVC-Doppelnippel, 2fach Aussengewinde

Ein sogenannter Doppelnippel hat auf beiden Seiten ein Aussengewinde identischer Größe um zwei Innengewinde identischer Größe miteinander zu verbinden. Hat der Doppelnippel auf einer Seite ein reduziertes Aussengewinde, so spricht man von einem Reduziernippel. Unsere umfangreiche Auswahl an PVC-U Reduziernippel finden Sie hier.
In unserem Webshop PVC-Welt.de finden Sie von der Dimension 1/4 Zoll, 3/8 Zoll, 1/2 Zoll, 3/4 Zoll, 1 Zoll, 1 1/4 Zoll, 1 1/2 Zoll,2 Zoll, 2 1/2 Zoll, 3 Zoll bis zur Größe 4 Zoll alle PVC Doppelnippel. Alle Doppelnippel haben ein BSP G-Gewinde oder auch Whitworth-Rohrgewinde (Norm ISO 228-1), welches übringens das älteste normierte Gewinde darstellt.
Sie suchen folgende Doppelnippel: - PVC Doppelnippel 1 Zoll
- PVC Doppelnippel 1 1/2 Zoll
- PVC Doppelnippel 1 1/4 Zoll
- PVC Doppelnippel 3/4 Zoll
- Kunststoff Doppelnippel 1 Zoll
-Kunststoff Doppelnippel 1 1/2" Zoll
PVC PVC-U Doppelnippel mit identischem Aussengewinde auf beiden Seiten in den Größen 1/4 Zoll bis 4 Zoll von Ihrem Fachhandel für Wassertechnik: PVC-Welt.de
