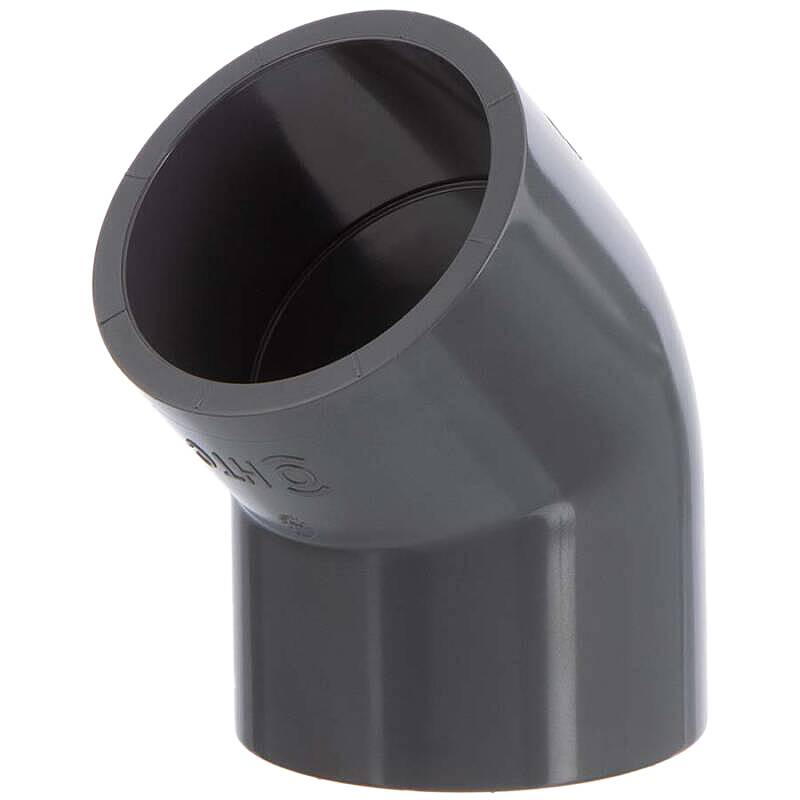

Gomito a 45° a incollare in PVC-U

Codice articolo: AF0401
Scegli la variante
Industrie

a partire da
0,29 €
compr. 19% IVA , più Spedizione
  • disponibilità immediata
  • disponibilità immediata
Varianti

Cod. Art.
Versione
A
B
C
D
PN
Prezzo
Quantità
AF0401.000.010
10mm
10
16
12
3
16
1,50 €*
pz.:
AF0401.000.012
12mm
12
18
12
3,5
16
0,29 €*
pz.:
AF0401.000.016
16mm
16
25
14
7
16
0,55 €*
pz.:
AF0401.000.020
20mm
20
29,5
16
18
25
0,30 €*
pz.:
AF0401.000.025
25mm
25
32
19
6
16
0,42 €*
pz.:
AF0401.000.032
32mm
32
40
23
12
16
0,62 €*
pz.:
AF0401.000.040
40mm
40
52,5
27
25
16
0,76 €*
pz.:
AF0401.000.050
50mm
50
62
31
11,5
16
0,95 €*
pz.:
AF0401.000.063
63mm
63
75
38
14
16
1,68 €*
pz.:
AF0401.000.075
75mm
75
90
44
16,5
16
2,84 €*
pz.:
AF0401.000.090
90mm
90
110
51
19,5
16
5,72 €*
pz.:
AF0401.000.110
110mm
110
131
61
23
16
9,25 €*
pz.:
AF0401.000.125
125mm
125
148
69
27
16
22,02 €*
pz.:
AF0401.000.160
160mm
160
180
86
34
16
37,13 €*
pz.:
AF0401.000.200
200mm
200
225
106
42
16
56,79 €*
pz.:
A-401-250
250mm
250
286
131
58
10
69,15 €*
pz:
A-401-280
280mm
280
320
146
62
10
97,69 €*
pz:
A-401-315
315mm
315
359
164
66
10
148,16 €*
pz:

compr. 19% IVA , più Spedizione

Tutte le dimensioni sono espresse in millimetri, tutti i pesi sono espressi in grammi.
Le immagini sono fornite al solo scopo illustrativo, non costituiscono elemento contrattuale e si riferiscono ad una sola variante/dimensione. Le immagini, i dati tecnici, le dimensioni e i disegni non sono vincolanti. Ci riserviamo il diritto di apportare modifiche in qualsiasi momento senza preavviso. Le dimensioni sono definite e mostrate piú chiaramente nella descrizione dell'articolo. Altre dimensioni fungono solo da supporto e migliore chiarificazione.

Descrizione

PVC-U Winkel 45°, 2fach Klebemuffe

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser, max. 10 bar ab 225mm
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:
Pikto
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.
DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings

PVC-U Winkel 45 Grad, 2fach Klebemuffe

Der PVC Winkel 45 Grad ist beidseitig mit einer Klebemuffe ausgestattet. Die beiden Klebemuffen sind in einem 45 Grad Winkel zueinander angeordet. Der Winkel 45 Grad ist vergleichbar mit einem 45 Grad Bogen, weist aber auf Grund der Knickform einen etwas höheren Strömungsverlust auf.
Vom Aquarienbau, über den Teichbau, Poolbau, Anlagenbau, Bewässerungsanlagen bis zum industriellen Rohrleitungsbau in PVC-U werden PVC Winkel 45 Grad verwendet. Die Winkel weisen einen maximalen Arbeitsdruck von PN 16 bar auf und sind so auch für hochwertige Bewässerungssysteme bei Marine sowie Chemie- und Textilindustrie im Einsatz.

PVC Winkel 45° in 50mm mit zwei Kledbemuffen ist ein Rohrverbindungsstück. Neben der Größe 50mm bieten wir weitere Dimensionen in unseren Webshop PBC-Welt.de: PVC Winkel 45 Grad 20mm
PVC Winkel 45 Grad 25mm
PVC Winkel 45 Grad 32mm
PVC Winkel 45 Grad 40mm
PVC Winkel 45 Grad 50mm Poolwinkel, 45 Grad Winkel für Poolverrohrung
PVC Winkel 45 Grad 63mm
Unsere Größenpalette reich bis zur Dimension 200mm.
