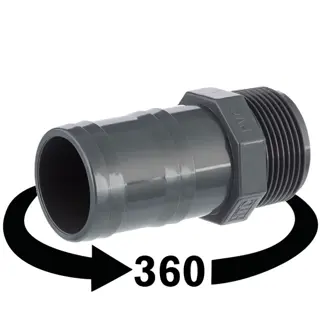

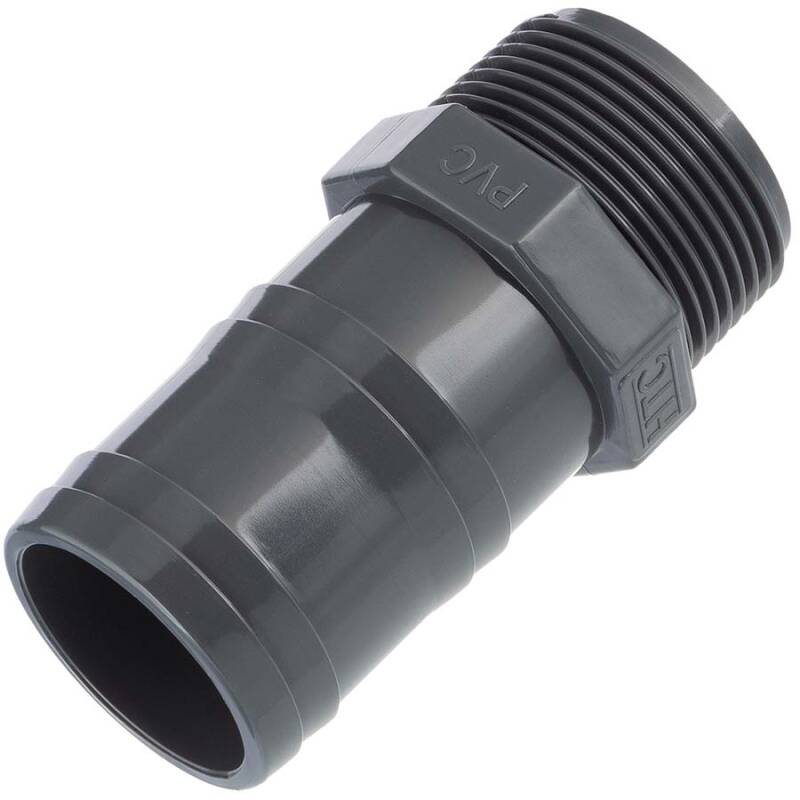

Portagomma con filetto maschio in PVC-U
0,70 €

compr. 19% IVA, più Spedizione

Codice articolo: AF0802

Foto prodotto Cod. Art. Versione Prezzo Quantità
Portagomma con filetto maschio, in PVC-U, 12mm x 1/4" AF0802.012.012 1/4" x 14/12mm 2,07 €*
Portagomma con filetto maschio, in PVC-U, 16mm x 3/8" AF0802.016.016 3/8" x 16mm 0,70 €*
Portagomma con filetto maschio in PVC-U AF0802.020.008 1/2" x 8mm 0,71 €*
Portagomma con filetto maschio in PVC-U AF0802.020.010 1/2" x 10mm 0,71 €*
Portagomma con filetto maschio in PVC-U AF0802.020.012 1/2" x 12mm 0,71 €*
Portagomma con filetto maschio in PVC-U AF0802.020.016 1/2" x 16mm 0,71 €*
Portagomma con filetto maschio, in PVC-U, 18mm x 1/2" AF0802.020.018 1/2" x 18mm 0,92 €*
Portagomma con filetto maschio, in PVC-U, 20mm x 1/2" AF0802.020.020 1/2" x 20mm 0,96 €*
Portagomma con filetto maschio in PVC-U AF0802.025.012 3/4" x 12mm 0,84 €*
Portagomma con filetto maschio in PVC-U AF0802.025.016 3/4" x 16mm 0,84 €*
Portagomma con filetto maschio, in PVC-U, 20mm x 3/4" AF0802.025.020 3/4" x 20mm 0,84 €*
Portagomma con filetto maschio in PVC-U AF0802.025.025 3/4" x 25mm 1,23 €*
Portagomma con filetto maschio in PVC-U AF0802.032.016 1" x 16mm 1,20 €*
Portagomma con filetto maschio in PVC-U AF0802.032.020 1" x 20mm 1,20 €*
Portagomma con filetto maschio, in PVC-U, 25mm x 1" AF0802.032.025 1" x 25mm 1,20 €*
Portagomma con filetto maschio, in PVC-U, 32mm x 1" AF0802.032.032 1" x 32/34mm 1,36 €*
Portagomma con filetto maschio, in PVC-U, 40mm x 1 1/4" AF0802.040.040 1 1/4" x 40mm 1,83 €*
Portagomma con filetto maschio, in PVC-U, 38mm x 1 1/2" AF0802.050.038 1 1/2" x 38mm 1,84 €*
Portagomma con filetto maschio, in PVC-U, 40mm x 1 1/2" AF0802.050.040 1 1/2" x 40mm 2,64 €*
Portagomma con filetto maschio, in PVC-U, 50mm x 1 1/2" AF0802.050.050 1 1/2" x 50mm 1,84 €*
Portagomma con filetto maschio, in PVC-U, 60mm x 2" AF0802.063.060 2" x 60mm 2,34 €*
Portagomma con filetto maschio, in PVC-U AF0802.050.032 1 1/2" x 38/32mm 2,73 €*
Portagomma con filetto maschio in PVC-U 1 1/2" x 40/32mm NSA801.050.032 1 1/2" x 40/32mm 1,70 €*
Portagomma con filetto maschio in PVC-U AD0802.016.018 3/8" x 16/18mm 0,96 €*
Portagomma con filetto maschio in PVC-U AD0802.020.022 1/2" x 20/22mm 1,01 €*
Portagomma con filetto maschio in PVC-U AD0802.025.027 3/4" x 25/27mm 1,09 €*
Portagomma con filetto maschio in PVC-U 1 1/4" x 40/42mm AD0802.040.042 1 1/4" x 40/42mm 2,07 €*

compr. 19% IVA, più Spedizione

Tutte le dimensioni sono espresse in millimetri, tutti i pesi sono espressi in grammi.
Le immagini sono fornite al solo scopo illustrativo, non costituiscono elemento contrattuale e si riferiscono ad una sola variante/dimensione. Le immagini, i dati tecnici, le dimensioni e i disegni non sono vincolanti. Ci riserviamo il diritto di apportare modifiche in qualsiasi momento senza preavviso. Le dimensioni sono definite e mostrate piú chiaramente nella descrizione dell'articolo. Altre dimensioni fungono solo da supporto e migliore chiarificazione.
Descrizione

PVC-U Schlauchtülle mit Aussengewinde

Anschluss:
Aussengewinde x Tülle
Gewinde:
BSP
Rohrgewinde

Das Whitworth-Gewinde, auch als Zoll-Gewinde bezeichnet wird heute als British Standard Thread (BSP) auf dem europäischem Festland angewendet.

Sir Joseph Whitworth führte es 1841 als ersten genormtes Gewinde in der Welt ein.

G,
nicht selbstdichtend

Ein nicht selbstdichtendes Gewinde besteht meist durch ein paralleles Innengewinde und ein konisches Aussengewinde. Man benötigt Teflonband oder Dichtfaden für Kunststoff bzw. Teflonband, Dichtfaden oder Hanf für Metallgewinde zum Abdichten.

, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (
PN
Pressure Nominal, englisch für Nenndruck, der Druck (in bar), für den genormte Rohrleitungsteile ausgelegt sind
):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:
Pikto
Tipp: PVC-U ist ein harter Kunststoff und die Tüllen haben eine ausgeprägte Rippenstruktur, was ideal für den Halt des Schlauches ist. Setzen Sie Ihre Schlauchschelle über den Schlauch direkt hinter eine Rippe. Bei spiralverstärktem Schlauch schieben Sie den Schlauch soweit auf, dass Sie einerseits die Rippenstruktur der Tülle beachten und ebenso die Schelle zwischen den Spiralen ansetzen können. Bei kleineren Durchmessers bewähren sich hier eher zwei schmale Schellen als eine breite Schelle.
Die maßgebliche Durchflussgröße bei einer Schlauchtülle ist in der Regel das Innenmaß der Tülle. Dieser Wert ist unter DN angegeben.
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD RoHS Konformitätserklärung - CH Aquaram
DOWNLOAD RoHS Konformitätserklärung - Effast

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings

PVC-U Schlauchtülle mit Aussengewinde

Der gängige Gewindetyp in der Sanitärbranche ist das BSP G Gewinde (
Whitworth
Das Whitworth-Gewinde, auch als Zoll-Gewinde bezeichnet, wird auf dem europäischen Festland als British Standard Thread (BSP) bezeichnet.
-Rohrgewinde). Somit sind theoretisch alle PVC-U Gewindefittings mit Gewindefittings aus anderen Materialien wie Messing, Edelstahl oder Polypropylen (PP) kompatibel.
Gewinde dieses Typs sind nicht selbstdichtend und benötigen ein geeignetes Gewindedichtmaterial wie z.B. Teflonband.
Was ist ein Zoll in der Sanitärbranche: das Kreuz mit dem Zoll - oder warum 1" eben keine 25,4mm sind
Teflonband, Dichtfaden, Hanf und Dichtpaste: Gewindedichtmaterial
Verwenden Sie kein quellendes Dichtmaterial: abdichten und verbinden von Kunststoffgewinden
PVC-U Schlauchtüllen mit Aussengewinde sind für die verschiedensten Einsatzzwecke in der Bewässerungstechnik, der Abwassertechnik, dem Pool-, Teich- und Schwimmbadbau geeignet. In Verbindung mit der sehr guten Beständigkeit gegnüber Chlor, Salzwasser und Säuren können PVC-U Schlauchtüllen mit Aussengewinde bis zu 10 bar Arbeitsdruck bei 20°C Medium Wasser ebenso in der chemischen und der Prozessindustrie eingesetzt werden.
