Variants

Product picture
Item no.
Variation
A
C
D max.
D min.
DN
L
Price
Quantity

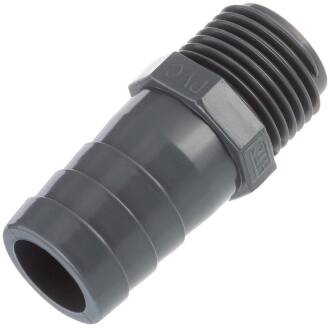

U-PVC hose tail with male thread
AF0802.012.012
1/4" x 14/12mm
1/4" (13,16mm)
9,5
12/14
11/13
7
51
2,07 €*
pc:
U-PVC hose tail with male thread
AF0802.016.016
3/8" x 16mm
3/8" (16,66mm)
11,5
16
14,5
10
61,5
0,58 €*
pc:
U-PVC hose tail with male thread
AD0802.016.018
3/8" x 16/18mm
3/8" (16,66mm)
12
18
16
10
64
0,96 €*
pc:
U-PVC hose tail with male thread
AF0802.020.008
1/2" x 8mm
1/2" (20,96mm)
13
9
8
5
44
0,71 €*
pc:
U-PVC hose tail with male thread
AF0802.020.010
1/2" x 10mm
1/2" (20,96mm)
13
11
10
6
44
0,71 €*
pc:
U-PVC hose tail with male thread
AF0802.020.012
1/2" x 12mm
1/2" (20,96mm)
13
13
12
8
47
0,71 €*
pc:
U-PVC hose tail with male thread
AF0802.020.016
1/2" x 16mm
1/2" (20,96mm)
13,5
17
16
11
49
0,71 €*
pc:
U-PVC hose tail with male thread
AF0802.020.018
1/2" x 18mm
1/2" (20,96mm)
14,5
18,5
16,5
11
65
0,92 €*
pc:
U-PVC hose tail with male thread
AF0802.020.020
1/2" x 20mm
1/2" (20,96mm)
14,5
20,5
18,5
13
67
0,77 €*
pc:
U-PVC hose tail with male thread
AD0802.020.022
1/2" x 20/22mm
1/2" (20,96mm)
15
22
20
13
70
1,01 €*
pc:
U-PVC hose tail with male thread
AF0802.025.012
3/4" x 12mm
3/4" (26,44mm)
14
13
12
8
48,5
0,98 €*
pc:
U-PVC hose tail with male thread
AF0802.025.016
3/4" x 16mm
3/4" (26,44mm)
14
17
16
11
50,5
0,98 €*
pc:
U-PVC hose tail with male thread
AF0802.025.020
3/4" x 20mm
3/4" (26,44mm)
14
20
19
14
51
0,98 €*
pc:
U-PVC hose tail with male thread
AF0802.025.025
3/4" x 25mm
3/4" (26,44mm)
17
25,5
23,5
18
71
0,95 €*
pc:
U-PVC hose tail with male thread
AD0802.025.027
3/4" x 25/27mm
3/4" (26,44mm)
17
27
25
18
76
1,09 €*
pc:
U-PVC hose tail with male thread
AF0802.032.016
1" x 16mm
1" (33,25mm)
17
16
15
10
54
1,40 €*
pc:
U-PVC hose tail with male thread
AF0802.032.020
1" x 20mm
1" (33,25mm)
17
20
19
14
57
1,40 €*
pc:
U-PVC hose tail with male thread
AF0802.032.025
1" x 25mm
1" (33,25mm)
17
25
24
18
63
1,40 €*
pc:
U-PVC hose tail with male thread
AF0802.032.032
1" x 32/34mm
1" (33,25mm)
18
32/34
30,5/32
23
80
1,63 €*
pc:
U-PVC hose tail with male thread
AF0802.040.040
1 1/4" x 40mm
1 1/4" (41,91mm)
22
40
37
27
91
1,42 €*
pc:
U-PVC hose tail with male thread 1 1/4" x 40/42mm
AD0802.040.042
1 1/4" x 40/42mm
1 1/4" (41,91mm)
22
42
40
27
92
2,07 €*
pc:
U-PVC hose tail with male thread
AF0802.050.038
1 1/2" x 38mm
1 1/2" (47,81mm)
22
38
35
26
91
1,84 €*
pc:
U-PVC hose tail with male thread
AF0802.050.040
1 1/2" x 40mm
1 1/2" (47,81mm)
22
40
37
27
91
2,64 €*
pc:
U-PVC hose tail with male thread
AF0802.050.050
1 1/2" x 50mm
1 1/2" (47,81mm)
21
50,5
48
40
89
1,99 €*
pc:
U-PVC hose tail with male thread
AF0802.063.060
2" x 60mm
2" (59,61mm)
28
61
58
51
108
2,40 €*
pc:
U-PVC hose tail with male thread
AF0802.050.032
1 1/2" x 38/32mm
1 1/2" (47,80mm)
18
38/32,5
36,5/31
25
110
2,73 €*
pc:
U-PVC hose tail with male thread 1 1/2" x 40/32mm
NSA801.050.032
1 1/2" x 40/32mm
1 1/2" (47,81mm)
18
40/33
38/32
27
109
1,70 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Schlauchtülle mit Aussengewinde

Anschluss:
Aussengewinde x Tülle
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:
Pikto
Tipp: PVC-U ist ein harter Kunststoff und die Tüllen haben eine ausgeprägte Rippenstruktur, was ideal für den Halt des Schlauches ist. Setzen Sie Ihre Schlauchschelle über den Schlauch direkt hinter eine Rippe. Bei spiralverstärktem Schlauch schieben Sie den Schlauch soweit auf, dass Sie einerseits die Rippenstruktur der Tülle beachten und ebenso die Schelle zwischen den Spiralen ansetzen können. Bei kleineren Durchmessers bewähren sich hier eher zwei schmale Schellen als eine breite Schelle.
Die maßgebliche Durchflussgröße bei einer Schlauchtülle ist in der Regel das Innenmaß der Tülle. Dieser Wert ist unter DN angegeben.
DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings

PVC-U Schlauchtülle mit Aussengewinde

Der gängige Gewindetyp in der Sanitärbranche ist das BSP G Gewinde (Whitworth-Rohrgewinde). Somit sind theoretisch alle PVC-U Gewindefittings mit Gewindefittings aus anderen Materialien wie Messing, Edelstahl oder Polypropylen (PP) kompatibel.
Gewinde dieses Typs sind nicht selbstdichtend und benötigen ein geeignetes Gewindedichtmaterial wie z.B. Teflonband.

Was ist ein Zoll in der Sanitärbranche: das Kreuz mit dem Zoll - oder warum 1" eben keine 25,4mm sind

Teflonband, Dichtfaden, Hanf und Dichtpaste: Gewindedichtmaterial

Verwenden Sie kein quellendes Dichtmaterial: abdichten und verbinden von Kunststoffgewinden

PVC-U Schlauchtüllen mit Aussengewinde sind für die verschiedensten Einsatzzwecke in der Bewässerungstechnik, der Abwassertechnik, dem Pool-, Teich- und Schwimmbadbau geeignet. In Verbindung mit der sehr guten Beständigkeit gegnüber Chlor, Salzwasser und Säuren können PVC-U Schlauchtüllen mit Aussengewinde bis zu 10 bar Arbeitsdruck bei 20°C Medium Wasser ebenso in der chemischen und der Prozessindustrie eingesetzt werden.

Others

AF0802.016.016

3/8" x 16mm .STEP-File

AF0802.020.020

1/2" x 20mm .STEP-File

AF0802.025.025

3/4" x 25mm .STEP-File

AF0802.032.032

1" x 32mm .STEP-File

AF0802.040.040

1 1/4" x 40mm .STEP-File

AF0802.050.050

1 1/2" x 50mm .STEP-File
