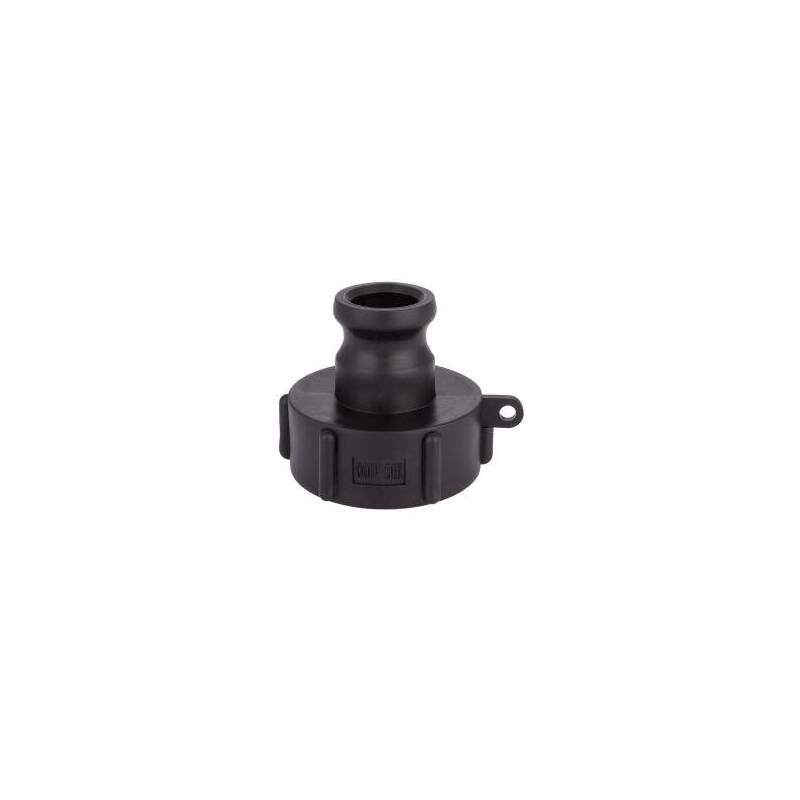

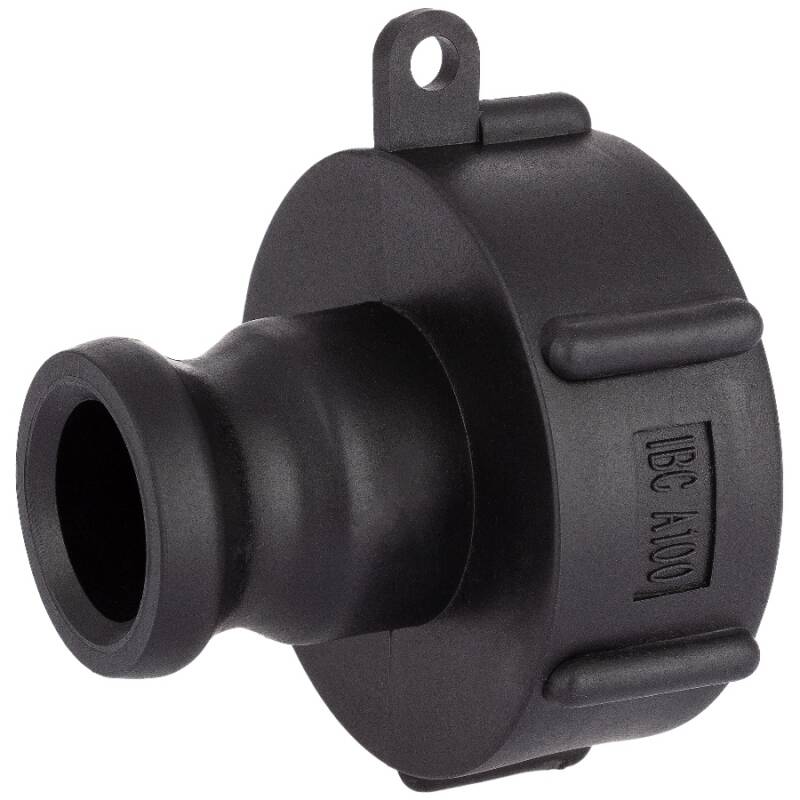

Raccordo per cisterna IBC con attacco CAMLOCK maschio
0,62 €

compr. 19% IVA, più Spedizione

Codice articolo: KL1000

Foto prodotto Cod. Art. Versione Prezzo Quantità
Raccordo per cisterna IBC S60*6 con attacco CAMLOCK maschio 3/4" KL0010.060.025 S60*6 x 3/4" 1,61 €*
Raccordo per cisterna IBC S60*6 con attacco CAMLOCK maschio 1" KL0010.060.032 S60*6 x 1" 1,61 €*
Raccordo per cisterna IBC S60*6 con attacco CAMLOCK maschio 1 1/4" KL0010.060.040 S60*6 x 1 1/4" 1,68 €*
Raccordo per cisterna IBC S60*6 con attacco CAMLOCK maschio 1 1/2" KL0010.060.050 S60*6 x 1 1/2" 1,73 €*
Raccordo per cisterna IBC S60*6 con attacco CAMLOCK maschio 2" KL0010.060.063 S60*6 x 2" 1,84 €*
Raccordo per cisterna IBC S100*8 con attacco CAMLOCK maschio 2" KL0010.100.063 S100*8 x 2" 4,93 €*
O-Ring in EPDM per raccordo per cisterna IBC S60*6 con attacco CAMLOCK maschio KL0010.00E.PDM S60*6 O-Ring EPDM 0,62 €*
O-Ring in FPM (Viton) per raccordo per cisterna IBC S60*6 con attacco CAMLOCK maschio KL0010.000.FPM S60*6 O-Ring FPM (Viton) 2,11 €*

compr. 19% IVA, più Spedizione

Tutte le dimensioni sono espresse in millimetri, tutti i pesi sono espressi in grammi.
Le immagini sono fornite al solo scopo illustrativo, non costituiscono elemento contrattuale e si riferiscono ad una sola variante/dimensione. Le immagini, i dati tecnici, le dimensioni e i disegni non sono vincolanti. Ci riserviamo il diritto di apportare modifiche in qualsiasi momento senza preavviso. Le dimensioni sono definite e mostrate piú chiaramente nella descrizione dell'articolo. Altre dimensioni fungono solo da supporto e migliore chiarificazione.
Descrizione

Kamlock PP faserverstärkt Spezialanschluss IBC Containeranschluss auf Kamlok Vaterteil

Spezialanschluss zur direkten Anbindung an einen IBC Container Anschluss S60*6 oder S100*8

Bild 3 zeigt Anbindung auf Klappenhahn am IBC Container (nicht im Lieferumfang enthalten)
Anschluss:
Innengewinde x Kamlock
Gewindetyp siehe Tabelle
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (
PN
Pressure Nominal, englisch für Nenndruck, der Druck (in bar), für den genormte Rohrleitungsteile ausgelegt sind
):
3/4"/1": max. 8 bar | 1 1/4" - 2": max. 6 bar
Material:
Polypropylen faserverstärkt
Dichtung:
PU-Schaum Flachdichtung
Farbe:
Schwarz UV-beständig
  1. Stecker (Vaterteil) Polypropylen faserverstärkt
  2. Kupplung (Mutterteil) Polypropylen faserverstärkt
  3. Bolzen Stahl verzinkt
  4. Flachdichtung
    NBR

    Acrylnitril-Butadien-Kautschuk, kurz auch Nitrilkautschuk, Kurzzeichen NBR (Nitrile Butadiene Rubber) zählt zu den Synthesekautschuken

  5. Hebel V2A Edelstahl
  6. Ring Stahleloxiert

orange dot IBC Container Anschlussgrößen


IBC Containeranschluss S60*6

Anschlussgröße

S60*6 DN50 (2") Grobgewinde

S60 (2,36") Gewinde Aussenmaß 60mm
6mm (0,24") Gewindesteigung

IBC Containeranschluss S75*6

Anschlussgröße

S75*6 DN50 (2") Grobgewinde

S75 (2,95") Gewinde Aussenmaß 75mm
6mm (0,24") Gewindesteigung

IBC Containeranschluss S80*6

Anschlussgröße

S80*6 DN50 (2") Grobgewinde

S80 (3,15") Gewinde Aussenmaß 80mm
6mm (0,24") Gewindesteigung

IBC Containeranschluss S100*8

Anschlussgröße

S100*8 DN80 (3") Grobgewinde

S100 (3,94") Gewinde Aussenmaß 100mm
8mm (0,32") Gewindesteigung
