Valvola a sfera a 2 vie teflon/EPDM in PVC-U con attuatore pneumatico "double acting", manicotto
8,22 €
per 1 pz.

compr. 19% IVA, più Spedizione

Codice articolo: AKS530

Foto prodotto Cod. Art. Versione Prezzo Quantità
PVC-U 2Wege Kugelhahn Stellantrieb pneumatisch double acting Klebemuffe 20mm AK362 20mm 185,14 €*
PVC-U 2Wege Kugelhahn Stellantrieb pneumatisch double acting Klebemuffe 25mm AK363 25mm 188,28 €*
PVC-U 2Wege Kugelhahn Stellantrieb pneumatisch double acting Klebemuffe 32mm AK364 32mm 211,45 €*
Valvola a sfera a 2 vie teflon/EPDM in PVC-U con attuatore pneumatico "double acting", manicotto AK0530.064.032 32mm 202,41 €*
Valvola a sfera a 2 vie teflon/EPDM in PVC-U con attuatore pneumatico "double acting", manicotto AKS530.064.040 40mm 206,43 €*

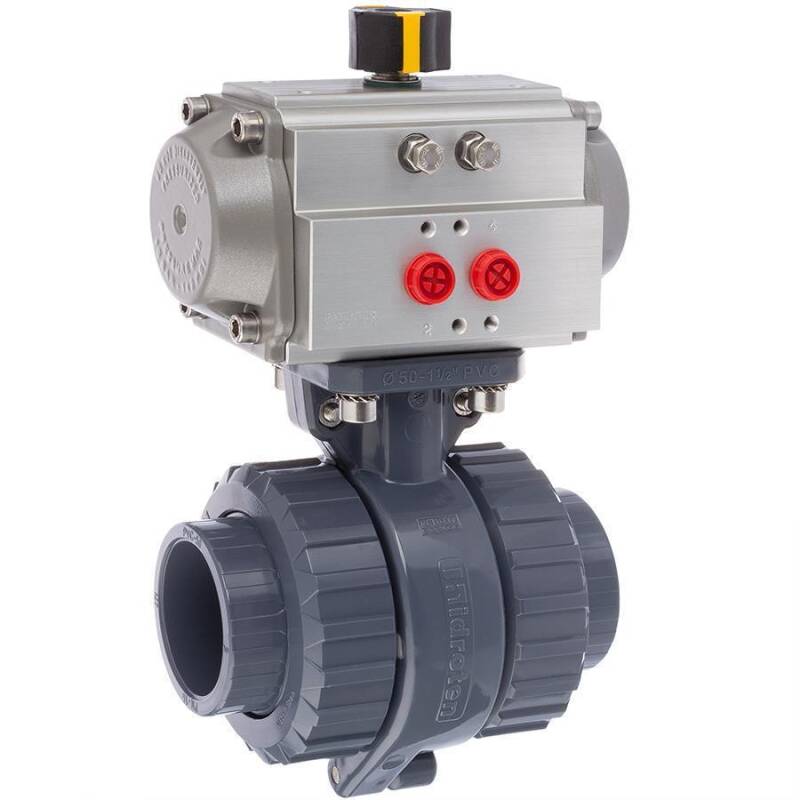

Valvola a sfera a 2 vie teflon/EPDM in PVC-U con attuatore pneumatico "double acting", manicotto 50mm AKS530.064.050 50mm 208,18 €*
Valvola a sfera a 2 vie teflon/EPDM in PVC-U con attuatore pneumatico "double acting", manicotto 63mm AKS530.064.063 63mm 230,56 €*

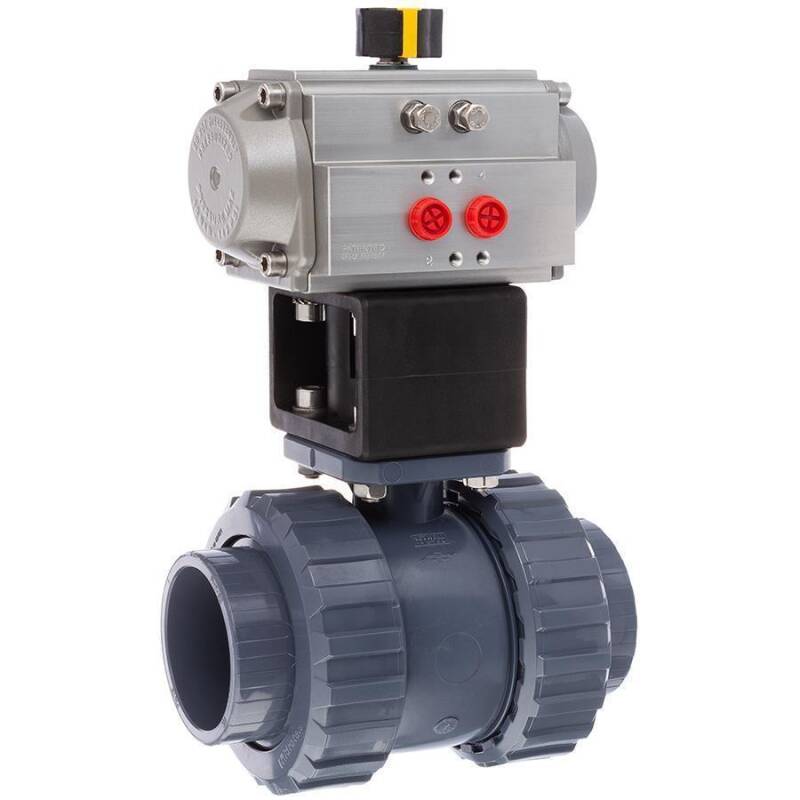

Valvola a sfera a 2 vie teflon/EPDM in PVC-U con attuatore pneumatico "double acting", manicotto 75mm AKS530.076.075 75mm 362,18 €*
Valvola a sfera a 2 vie teflon/EPDM in PVC-U con attuatore pneumatico "double acting", manicotto 90mm AKS530.076.090 90mm 417,29 €*

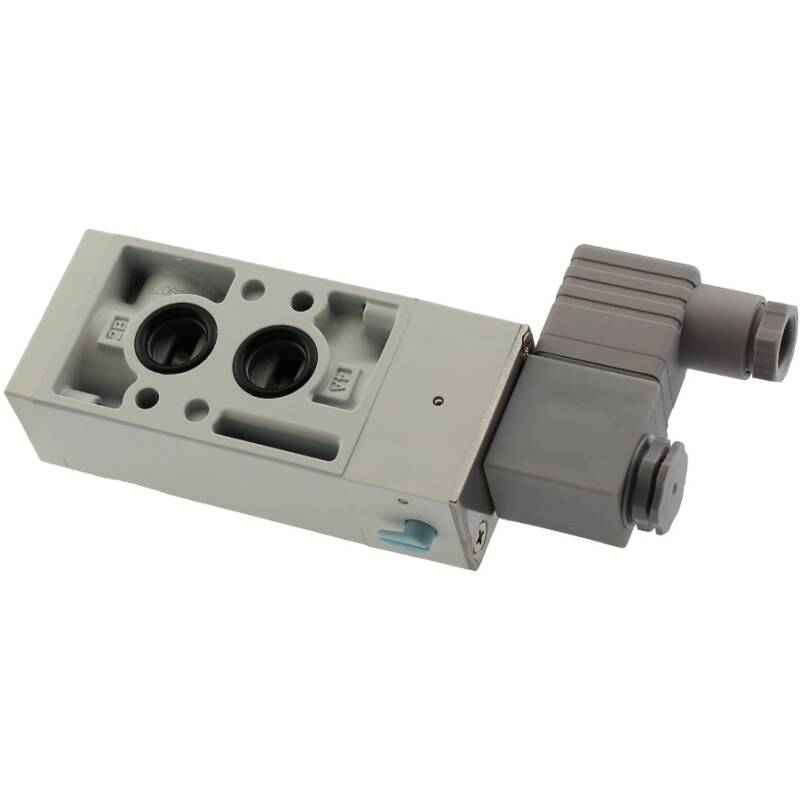

Valvola a sfera a 2 vie teflon/EPDM in PVC-U con attuatore pneumatico "double acting", manicotto Magnetventil 220 VAC AKS530.VAC.220. Magnetventil 5/2, 220 VAC 47,20 €*

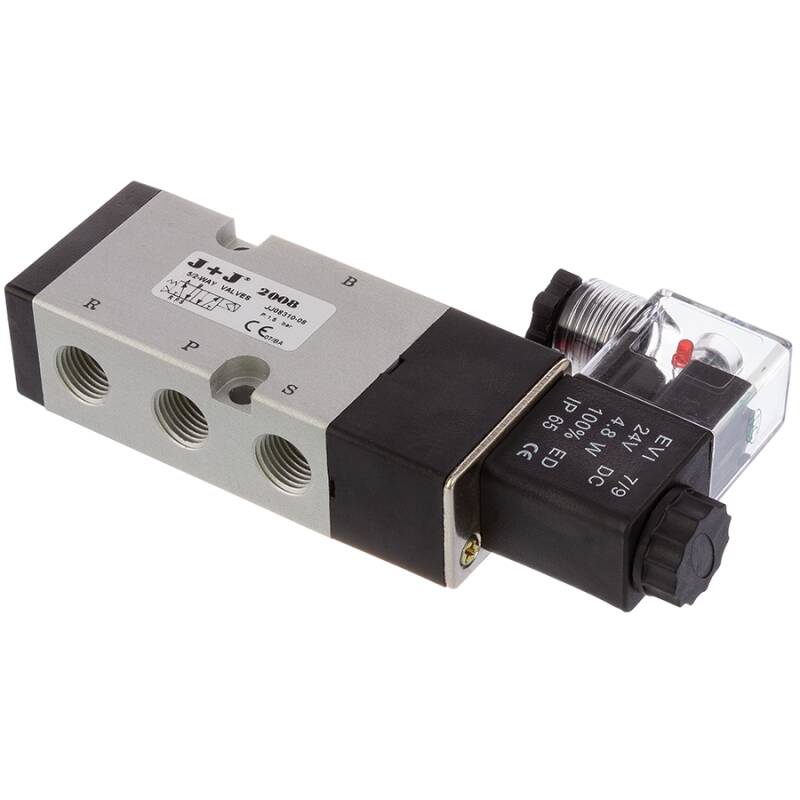

Valvola a sfera a 2 vie teflon/EPDM in PVC-U con attuatore pneumatico "double acting", manicotto Magnetventil 24 VAC AKS530.VDC.024 Magnetventil 5/2, 24 VAC 47,20 €*
Valvola a sfera a 2 vie teflon/EPDM in PVC-U con attuatore pneumatico "double acting", manicotto Drosselschalldämpfer AKS530.000.001 Drosselschalldämpfer 8,22 €*

compr. 19% IVA, più Spedizione

Tutte le dimensioni sono espresse in millimetri, tutti i pesi sono espressi in grammi.
Le immagini sono fornite al solo scopo illustrativo, non costituiscono elemento contrattuale e si riferiscono ad una sola variante/dimensione. Le immagini, i dati tecnici, le dimensioni e i disegni non sono vincolanti. Ci riserviamo il diritto di apportare modifiche in qualsiasi momento senza preavviso. Le dimensioni sono definite e mostrate piú chiaramente nella descrizione dell'articolo. Altre dimensioni fungono solo da supporto e migliore chiarificazione.
Descrizione

PVC-U Kugelhahn mit pneumatischem Stellantrieb double acting, 2fach Klebemuffe


Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (
PN
Pressure Nominal, englisch für Nenndruck, der Druck (in bar), für den genormte Rohrleitungsteile ausgelegt sind
):
max. 16 bar bei 20°C, ab 75mm 10 bar
Material:
PVC-U
O-Ringe:
EPDM 70
shore
Die SHORE-Härte, benannt nach Albert Ferdinand Shore, ist eine Kennzahl, die vorwiegend für Elastomere und gummielastische Polymere eingesetzt wird. Sie steht in direkter Beziehung zur Eindringtiefe und ist somit ein Maß für die Werkstoffhärte.
Besonderheit:
justierbarer Sicherheitsblock
Stellantrieb Prisma PPW:
Polyamid, Fiberglas verstärkt
Stellantrieb Alphapompe RE064:
Aluminium hartanodisiert
35,5 Nm/6 bar, doppeltwirkend
Stellantrieb Alphapompe RE076:
Aluminium hartanodisiert
70,6 Nm/6 bar, doppeltwirkend
DOWNLOAD Prisma pneumatischer Stellantrieb technische Information
DOWNLOAD Alphapompe Serie RE technische Information
DOWNLOAD Datenblatt Alphapompe RE064
DOWNLOAD Datenblatt Alphapompe RE076
DOWNLOAD WRAS Zertifikat (Trinkwasser)
DOWNLOAD RoHS Konformitätserklärung - Hidroten

Der pneumatische Stellantrieb "double acting" wird zweifach mit Druckluft zwischen 6 - 8bar angesteuert. Jeweils eine Ansteuerung öffnet oder schließt das Ventil. Bei direktem Ansteuern des Stellantriebs ohne regulierendes Magnetventil und Abluftdrosselung (Geschwindigkeitsregulierung) erfolgt der Umschaltprozess des Kugelhahns unmittelbar und abrupt und erzeugt dadurch einen Druckstoß (Wasserhammer). Dies kann durch die Geschwindigkeitsregulierung mittels Magnetventil und Abluftdrossel gemindert werden.
Die Verwendung eines 5/2 Magnetventils mit zwei Drosselschalldämpfern ermöglicht Ihnen die Geschwindigkeitsregulierung des Umschaltprozesses auf ideale 1 - 2 sec. einzustellen.

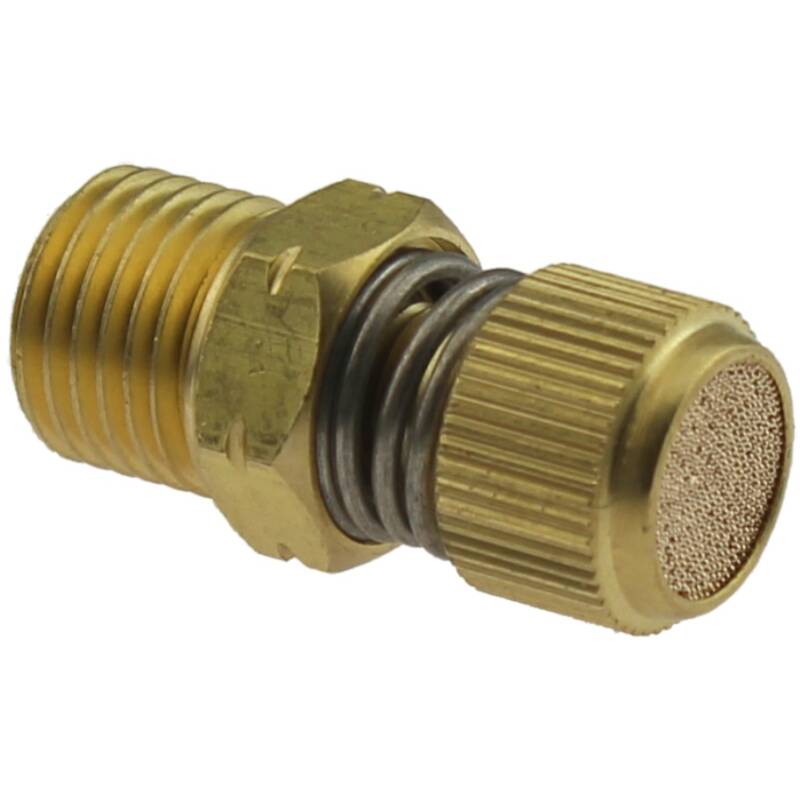

Drosselschalldämpfer

Der Drosselschalldämpfer dient der Einstellung der Geschwindigkeit des Steuerventils. Die Kegeldrossel mit Schalldämpfer fixiert die Einstellung durch Federkraft. Sie benötigen zwei Stück, wobei die optimale Einstellung (Stellzeit des Kugelhahns) zwischen 1 - 2 sec. liegt.

DOWNLOAD CE & ATEX Zertifikat für pneumatischen Stellantrieb
DOWNLOAD ECA Zertifikat für pneumatischen Stellantrieb
DOWNLOAD Produktfreigabe DNV-GL für Schiffe, Offshore Plant Systeme, marine Maschinen & Equipment sowie kryogene Dienstleistungen
DOWNLOAD RoHS Zertifikat, pneumatischer Stellantrieb
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD technische Information, pneumatischer Stellantrieb
