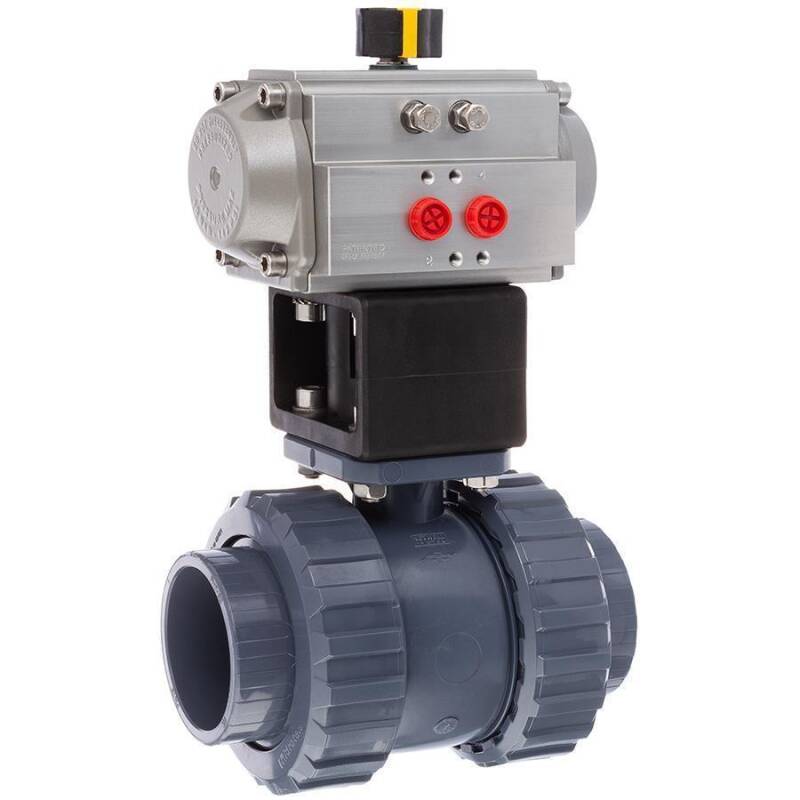

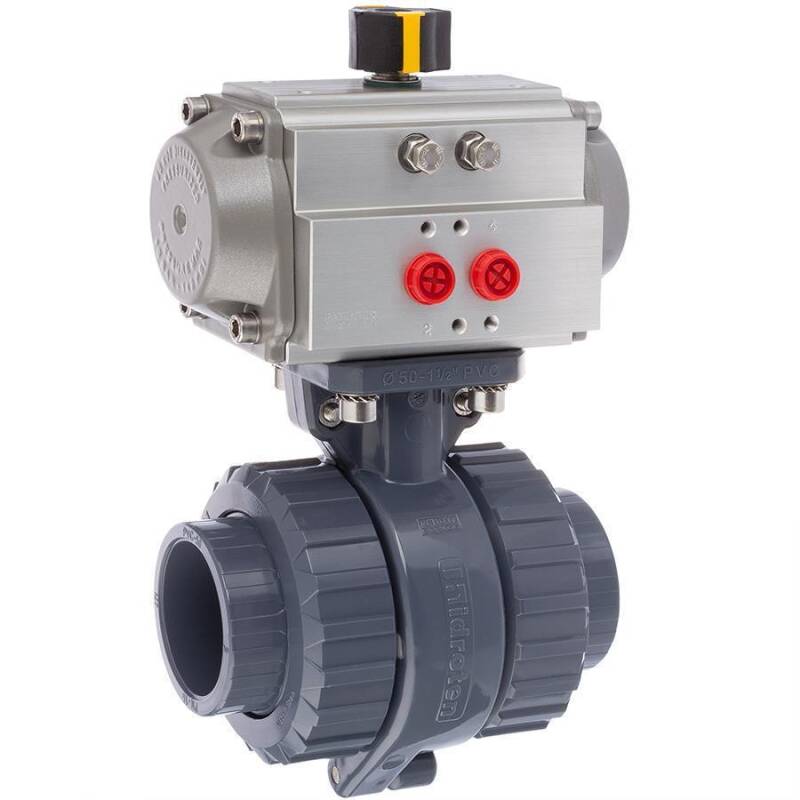

U-PVC 2 way solvent ball valve teflon/EPDM with pneumatic actuator
8,22 €

including 19% VAT., plus shipping

Item number: AKS530

Product picture Item no. Variation Price Quantity
PVC-U 2Wege Kugelhahn Stellantrieb pneumatisch double acting Klebemuffe 20mm AK362 20mm 185,14 €*
PVC-U 2Wege Kugelhahn Stellantrieb pneumatisch double acting Klebemuffe 25mm AK363 25mm 188,28 €*
PVC-U 2Wege Kugelhahn Stellantrieb pneumatisch double acting Klebemuffe 32mm AK364 32mm 211,45 €*
U-PVC 2 way solvent ball valve teflon/EPDM with pneumatic actuator AK0530.064.032 32mm 202,41 €*
U-PVC 2 way solvent ball valve teflon/EPDM with pneumatic actuator AKS530.064.040 40mm 206,43 €*
U-PVC 2 way solvent ball valve teflon/EPDM with pneumatic actuator 50mm AKS530.064.050 50mm 208,18 €*
U-PVC 2 way solvent ball valve teflon/EPDM with pneumatic actuator 63mm AKS530.064.063 63mm 230,56 €*
U-PVC 2 way solvent ball valve teflon/EPDM with pneumatic actuator 75mm AKS530.076.075 75mm 362,18 €*
U-PVC 2 way solvent ball valve teflon/EPDM with pneumatic actuator 90mm AKS530.076.090 90mm 417,29 €*

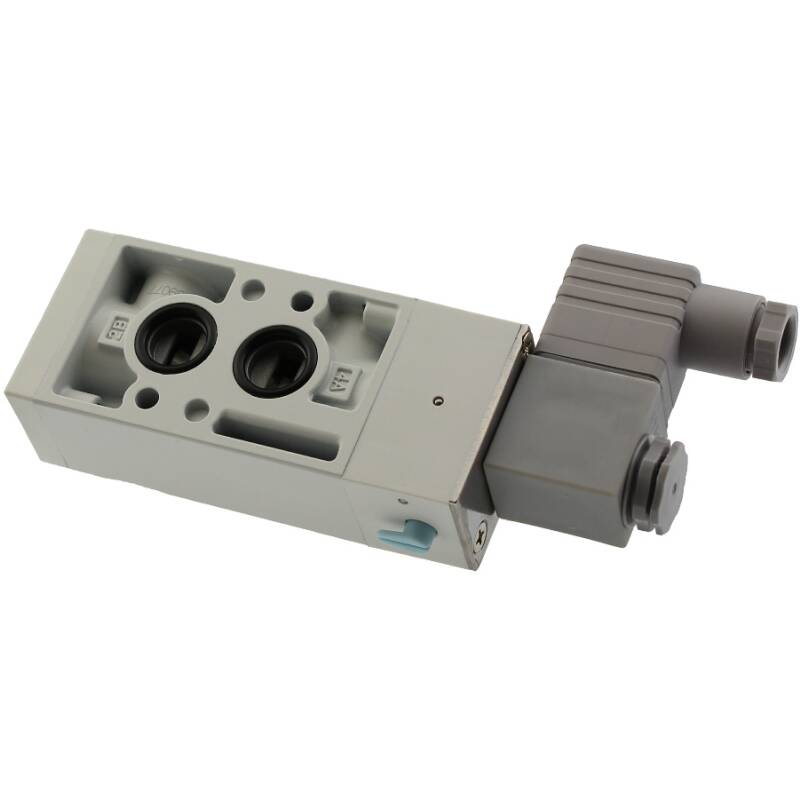

U-PVC 2 way solvent ball valve teflon/EPDM with pneumatic actuator Magnetventil 220 VAC AKS530.VAC.220. Magnetventil 5/2, 220 VAC 47,20 €*

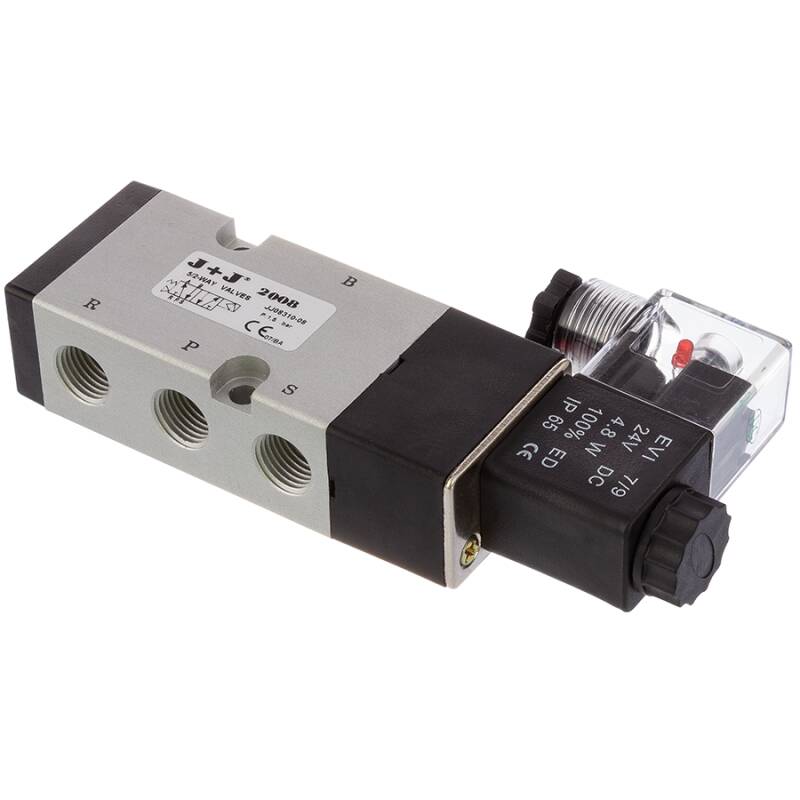

U-PVC 2 way solvent ball valve teflon/EPDM with pneumatic actuator Magnetventil 24 VAC AKS530.VDC.024 Magnetventil 5/2, 24 VAC 47,20 €*
U-PVC 2 way solvent ball valve teflon/EPDM with pneumatic actuator Drosselschalldämpfer AKS530.000.001 Drosselschalldämpfer 8,22 €*

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Kugelhahn mit pneumatischem Stellantrieb double acting, 2fach Klebemuffe


Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (
PN
Pressure Nominal, englisch für Nenndruck, der Druck (in bar), für den genormte Rohrleitungsteile ausgelegt sind
):
max. 16 bar bei 20°C, ab 75mm 10 bar
Material:
PVC-U
O-Ringe:
EPDM 70
shore
Die SHORE-Härte, benannt nach Albert Ferdinand Shore, ist eine Kennzahl, die vorwiegend für Elastomere und gummielastische Polymere eingesetzt wird. Sie steht in direkter Beziehung zur Eindringtiefe und ist somit ein Maß für die Werkstoffhärte.
Besonderheit:
justierbarer Sicherheitsblock
Stellantrieb Prisma PPW:
Polyamid, Fiberglas verstärkt
Stellantrieb Alphapompe RE064:
Aluminium hartanodisiert
35,5 Nm/6 bar, doppeltwirkend
Stellantrieb Alphapompe RE076:
Aluminium hartanodisiert
70,6 Nm/6 bar, doppeltwirkend
DOWNLOAD Prisma pneumatischer Stellantrieb technische Information
DOWNLOAD Alphapompe Serie RE technische Information
DOWNLOAD Datenblatt Alphapompe RE064
DOWNLOAD Datenblatt Alphapompe RE076
DOWNLOAD WRAS Zertifikat (Trinkwasser)
DOWNLOAD RoHS Konformitätserklärung - Hidroten

Der pneumatische Stellantrieb "double acting" wird zweifach mit Druckluft zwischen 6 - 8bar angesteuert. Jeweils eine Ansteuerung öffnet oder schließt das Ventil. Bei direktem Ansteuern des Stellantriebs ohne regulierendes Magnetventil und Abluftdrosselung (Geschwindigkeitsregulierung) erfolgt der Umschaltprozess des Kugelhahns unmittelbar und abrupt und erzeugt dadurch einen Druckstoß (Wasserhammer). Dies kann durch die Geschwindigkeitsregulierung mittels Magnetventil und Abluftdrossel gemindert werden.
Die Verwendung eines 5/2 Magnetventils mit zwei Drosselschalldämpfern ermöglicht Ihnen die Geschwindigkeitsregulierung des Umschaltprozesses auf ideale 1 - 2 sec. einzustellen.

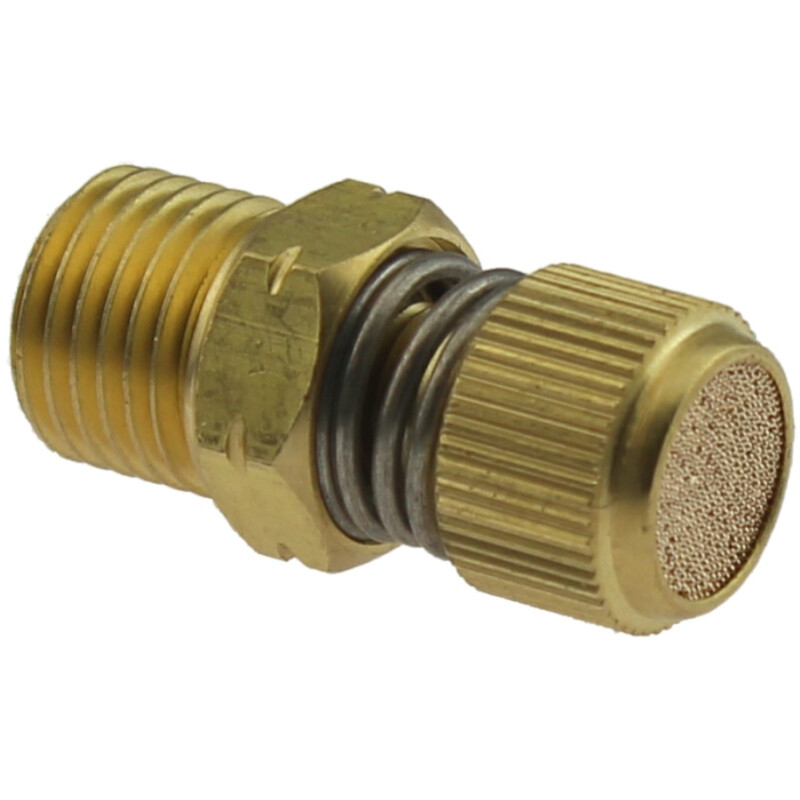

Drosselschalldämpfer

Der Drosselschalldämpfer dient der Einstellung der Geschwindigkeit des Steuerventils. Die Kegeldrossel mit Schalldämpfer fixiert die Einstellung durch Federkraft. Sie benötigen zwei Stück, wobei die optimale Einstellung (Stellzeit des Kugelhahns) zwischen 1 - 2 sec. liegt.

DOWNLOAD CE & ATEX Zertifikat für pneumatischen Stellantrieb
DOWNLOAD ECA Zertifikat für pneumatischen Stellantrieb
DOWNLOAD Produktfreigabe DNV-GL für Schiffe, Offshore Plant Systeme, marine Maschinen & Equipment sowie kryogene Dienstleistungen
DOWNLOAD RoHS Zertifikat, pneumatischer Stellantrieb
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD technische Information, pneumatischer Stellantrieb
