Variants

Item no.
Variation
d
dc
e
m
s
Discount %
Price
Quantity
ES6924.200.006
M6
M6
max. 14,2
mind. 11,05
5,7/6
9,78/10
%
0,08 €*
pc.:
ES6924.200.008
M8
M8
max. 17,9
mind. 14,38
7,6/8
12,73/13
%
0,14 €*
pc.:
ES6924.200.010
M10
M10
max. 21,8
mind. 16,64
9,6/10
14,73/15
%
0,27 €*
pc.:

incl. 19% VAT , plus shipping costs

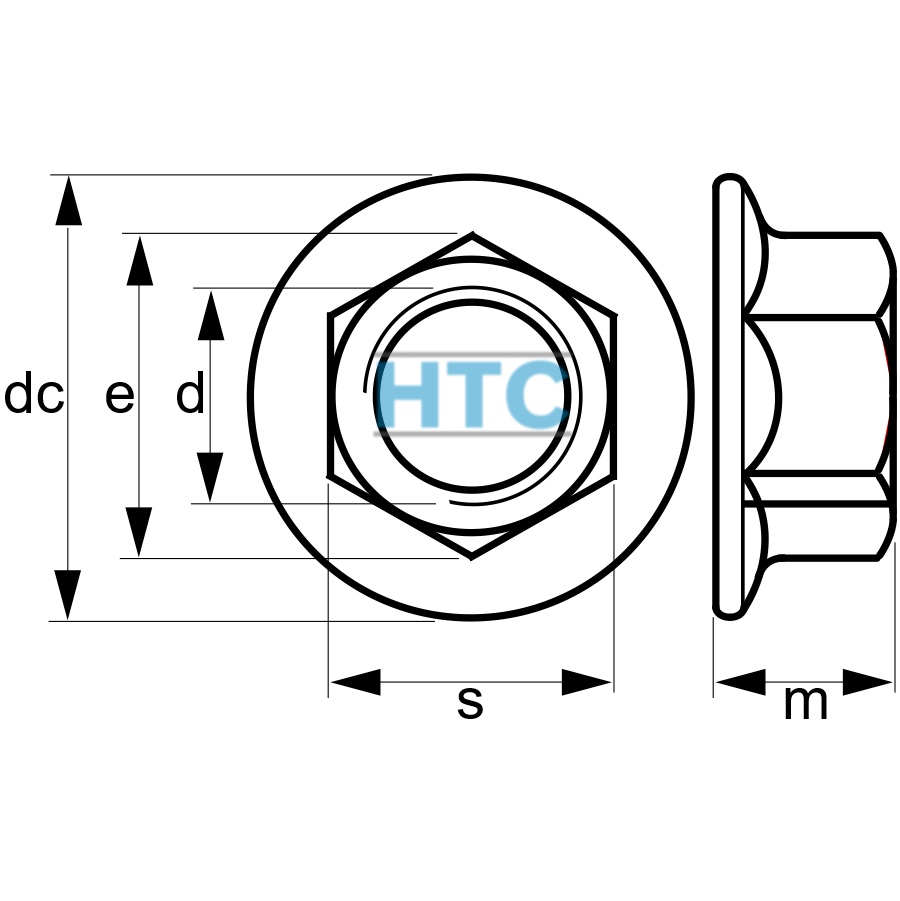

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

Sechskantmutter DIN 6923 mit Flansch Edelstahl V2A

Variante:
siehe Tabelle
Material:
Edelstahl V2A, AISI 304
Norm:
DIN 6923
Qualität:
Edelstahl V2A
Gewinde:
Regelgewinde
Farbe:
Grau Edelstahl
