PP Y-filter with male thread

Item number: YFP300

4,37 €

including 19% VAT., plus shipping

Product picture Item no. Variation Price Quantity
PP Y-filter with male thread 3/4" YFP300.000.025 3/4" 9,75 €*
PP Y-filter with male thread 1" YFP300.000.032 1" 9,75 €*
PP Y-filter with male thread 1 1/4" YFP300.000.040 1 1/4" 9,75 €*
PP Y-filter with male thread 1 1/2" YFP300.000.050 1 1/2" 14,48 €*
PP Y-filter with male thread 2" YFP300.000.063 2" 30,13 €*
Stainless steel net for Y-filter 3/4", 1" and 1 1/4" YFP300.ERF.025 für 3/4", 1" und 1 1/4" 4,37 €*
Stainless steel net for Y-filter 1 1/2" YFP300.ERF.050 für 1 1/2" 7,25 €*
Stainless steel net for Y-filter 2" YFP300.ERF.063 für 2" 10,48 €*

including 19% VAT., plus shipping

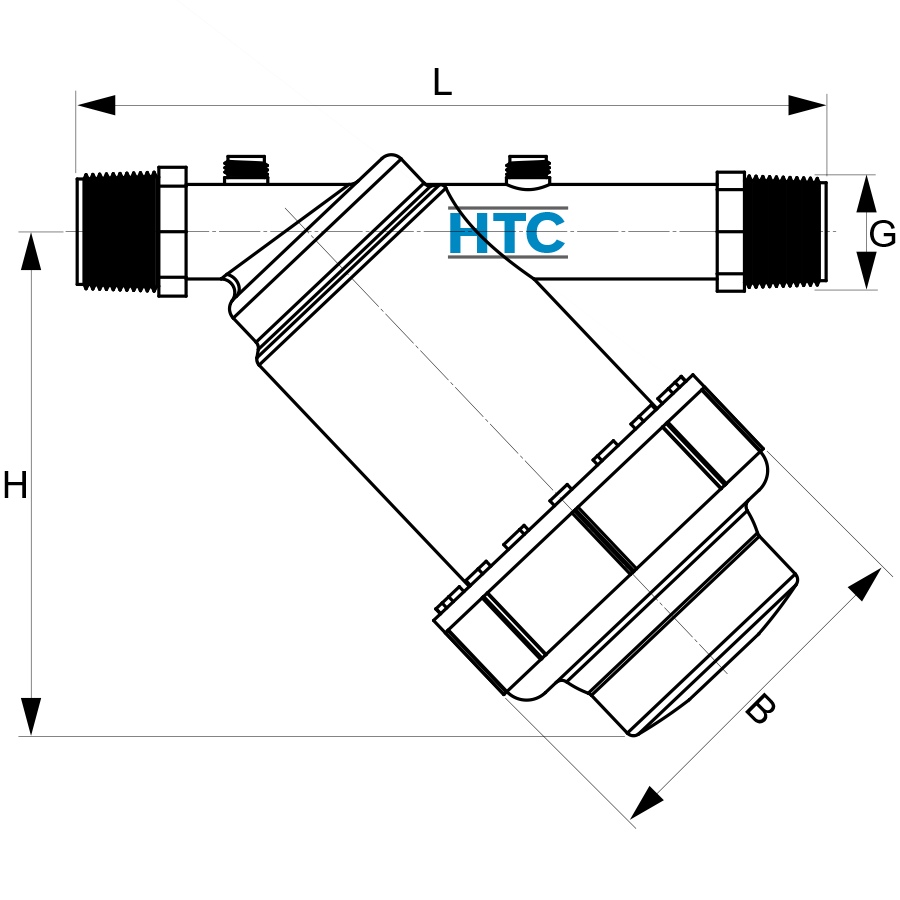

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PP Y-Filter, 2fach Aussengewinde


  • incl. Filterpatrone Edelstahlnetz 120 micron
  • PPFV Schwarz, UV-stabilisiert
  • max. Arbeitsdruck 8 bar
  • max. Arbeitstemperatur konstant 80°C, kurzzeitig 100 °C

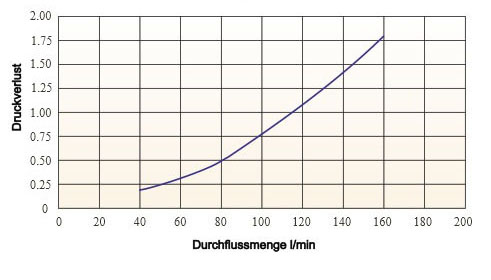

Ø 3/4"

Max. Druck: 8 bar
Max. Durchflussmenge 80 l/min. (4,8 m³/h)
Filterelement V2A 120 Maschen (0,135 mm)
Filterfläche: 120 cm²
Biegeradius

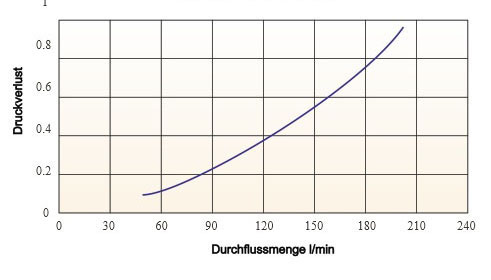

Ø 1"

Max. Druck: 8 bar
Max. Durchflussmenge 80 l/min. (4,8 m³/h)
Filterelement V2A 120 Maschen (0,135 mm)
Filterfläche: 120 cm²
Biegeradius

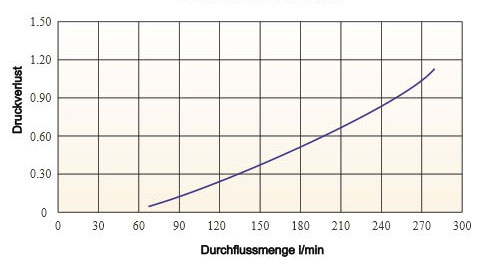

Ø 1 1/4"

Max. Druck: 8 bar
Max. Durchflussmenge 170 l/min. (10,2 m³/h)
Filterelement V2A 120 Maschen (0,135 mm)
Filterfläche: 120 cm²
Biegeradius

Ø 1 1/2"

Max. Druck: 8 bar
Max. Durchflussmenge 300 l/min. (28 m³/h)
Filterelement V2A 120 Maschen (0,135 mm)
Filterfläche: 215 cm²
Biegeradius

Ø 2"

Max. Druck: 8 bar
Max. Durchflussmenge 430 l/min. (24 m³/h)
Filterelement V2A 120 Maschen (0,135 mm)
Filterfläche: 340 cm²
Biegeradius
