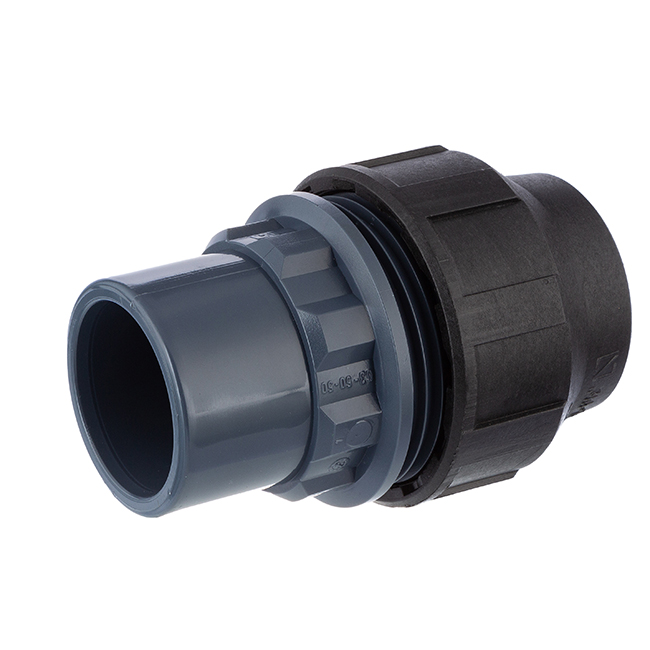

PE/PVC adapter compression fitting x m/f solvent socket
3,40 €

including 19% VAT., plus shipping

Item number: AF0108

Item no. Variation Price Quantity
AF0108.000.032 32 x 32/40mm 3,40 €*
AF0108.050.050 50 x 50/63mm 6,53 €*
AF0108.063.063 63 x 63/75mm 10,29 €*

including 19% VAT., plus shipping

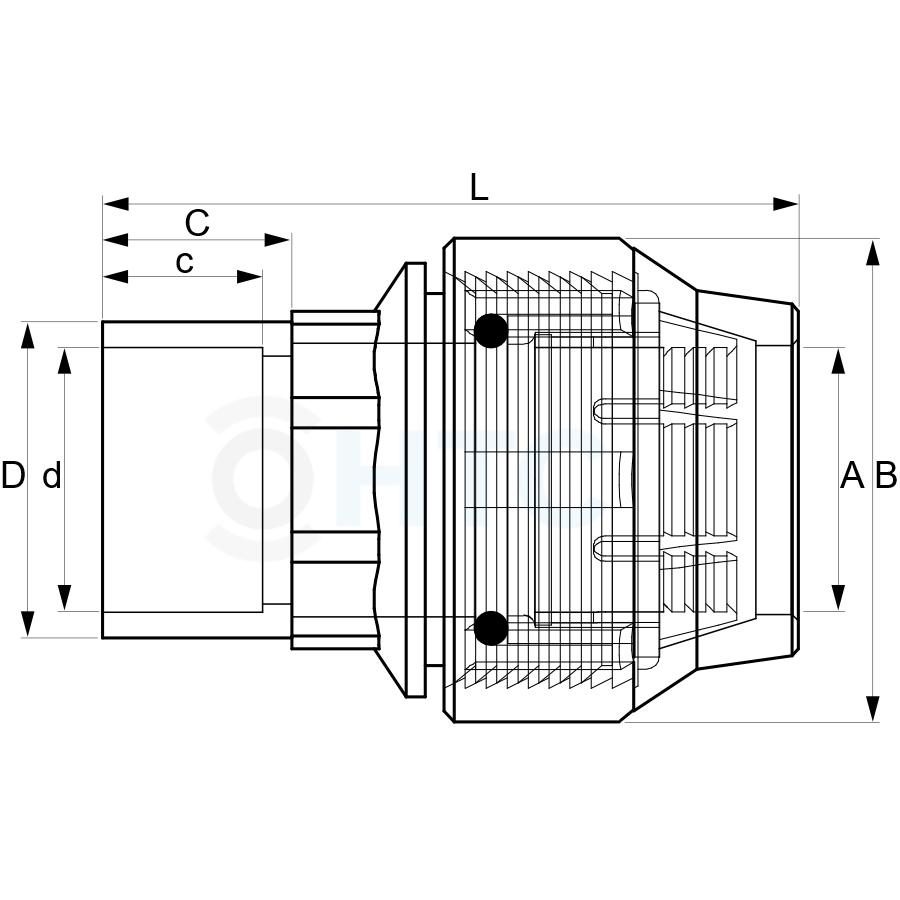

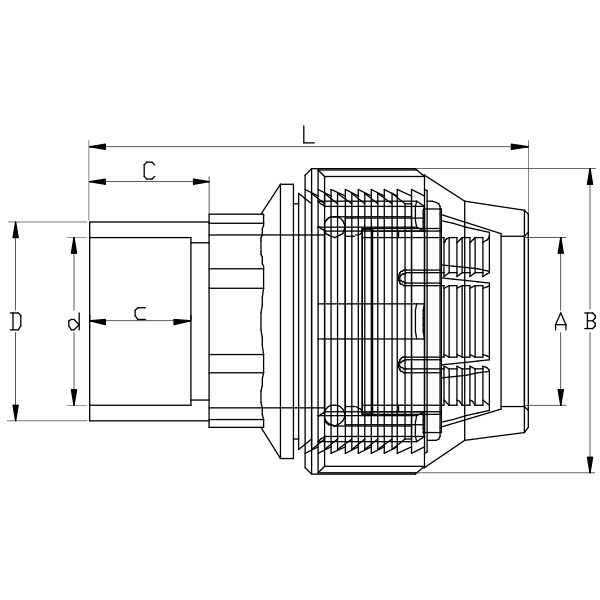

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PE PVC-U Übergangsverschraubung, Klemme x Klebemuffe/-stutzen

Anschluss:
Klemme x Klebemuffe/-stutzen
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (
PN
Pressure Nominal, englisch für Nenndruck, der Druck (in bar), für den genormte Rohrleitungsteile ausgelegt sind
):
Klemme - PE-Rohr: max. 16 bar bei 20°C, 50 & 63mm max. 10 bar
Material:
PVC-U, Klemme Polypropylen
Farbe:
Überwurfmutter: Schwarz, Körper: Grau oder Schwarz
Einsatzbereich:
DOWNLOAD PVC-U technische Charakteristik
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
DOWNLOAD RoSH Bestätigung - Coraplax CH PVC-U Fittings und Armaturen
DOWNLOAD Unbedenklichkeit Kontakt mit Trinkwasser und Nahrung - Coraplax PVC-U Fittings
