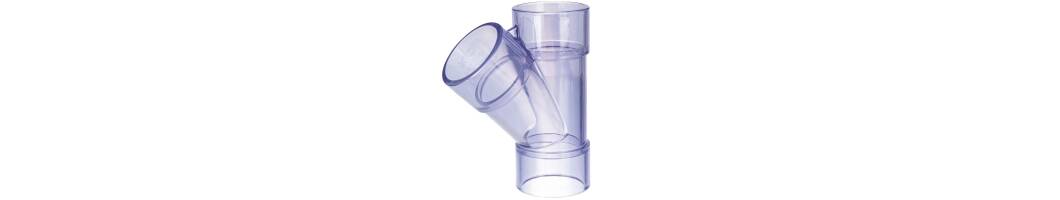

U-PVC solvent tee 45° - transparent

Choose the variation
Transparent

from
24,06 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Item no.
Variation
B
D
D1
H
L
Price
Quantity
AT0501.000.050
50mm
122
50
61
149,5
35
24,06 €*
AT0501.000.063
63mm
150
63
74,5
180
38
37,44 €*
AT0501.000.075
75mm
180
75
88
208
43
60,84 €*
pc:
AT0501.000.090
90mm
210
90
106
236
48
78,09 €*
pc:
AT0501.000.110
110mm
260
110
132
290
58
128,84 €*

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U T-Stück 45° Transparent, 3fach Klebemuffe

PVC-U Fittings und Rohr Transparent sind verklebbar wie PVC-U Grau o.ä. mit jedem handelsüblichen PVC-U Kleber und weisen identisch hohe Wertigkeiten auf.

Anschluss:
3fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PVC-U
Farbe:
transparent, bläulich
Einsatzbereich:
Pikto
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.
DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
