3-layers flat hose

SKU: SC0601
Auswahl Steuerzone / Lieferland
from
1,61 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting

wichtiger Hinweis

Schlauchzuschnitt wird speziell für Ihren Auftrag gefertigt - keine Rückgabe, kein Widerruf bei Schlauchzuschnitt.
  • Available immediately
   Variants

Item no.
Variation
DN
max. lenght
Working pressure
Burst pressure
Price
Quantity
SC0601.025.001
25mm (1") Meterware
25
50m
4
14
1,61 €*
meter:
SC0601.025.025
25mm (1") Rolle 25m
25
---
4
14
32,13 €*
Reel:
SC0601.025.050
25mm (1") Rolle 50m
25
---
4
14
64,26 €*
Reel:
SC0601.025.100
25mm (1") Rolle 100m
25
---
4
14
hat Überlänge
128,52 €*
Reel:
SC0601.032.001
32mm (1 1/4") Meterware
32
50m
4
14
1,88 €*
meter:
SC0601.032.025
32mm (1 1/4") Rolle 25m
32
---
4
14
37,49 €*
Reel:
SC0601.032.050
32mm (1 1/4") Rolle 50m
32
---
4
14
hat Überlänge
74,97 €*
Reel:
SC0601.032.100
32mm (1 1/4") Rolle 100m
32
---
4
14
hat Überlänge
149,94 €*
Reel:
SC0601.038.001
38mm (1 1/2") Meterware
38
50m
4
13
2,26 €*
meter:
SC0601.038.025
38mm (1 1/2") Rolle 25m
38
---
4
13
45,22 €*
Reel:
SC0601.038.050
38mm (1 1/2") Rolle 50m
38
---
4
13
hat Überlänge
90,44 €*
Reel:
SC0601.038.100
38mm (1 1/2") Rolle 100m
38
---
4
13
hat Überlänge
159,46 €*
Reel:
SC0601.051.001
51mm (2") Meterware
51
25m
4
11
2,53 €*
meter:
SC0601.051.025
51mm (2") Rolle 25m
51
---
4
11
50,58 €*
Reel:
SC0601.051.050
51mm (2") Rolle 50m
51
---
4
11
hat Überlänge
101,15 €*
SC0601.051.100
51mm (2") Rolle 100m
51
---
4
11
hat Überlänge
202,30 €*
Reel:
SC0601.063.001
63mm (2 1/2") Meterware
63
15m
4
11
3,39 €*
meter:
SC0601.063.025
63mm (2 1/2") Rolle 25m
63
---
4
11
67,83 €*
Reel:
SC0601.063.050
63mm (2 1/2") Rolle 50m
63
---
4
11
hat Überlänge
135,66 €*
Reel:
SC0601.063.100
63mm (2 1/2") Rolle 100m
63
---
4
11
Sperrgutbild fehlt Sperrgut
271,32 €*
Reel:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

3-Ply Flat Hose Construction Hose

Sections: Section quantities under roll lengths will be delivered as one length.

orange dot Technical Information

  • Reinforced with high-strength polyester yarn and rollable
  • Safety factor of approx. 3:1 (burst pressure to working pressure ratio)
  • Temperature range: -10°C to +60°C
  • UV-resistant
  • Easy to store and quick to install
  • Color: Blue
  • Material: PVC, polyester braided yarn

Burst Pressure

Burst Pressure

Working pressure and burst pressure are both measured at +20°C, medium water. The burst pressure indicates the approximate maximum stress at which the hose will burst. This can be negatively affected by age, storage, or high prior loads.
Suction Hose Metal Spiral Explosion Diagram

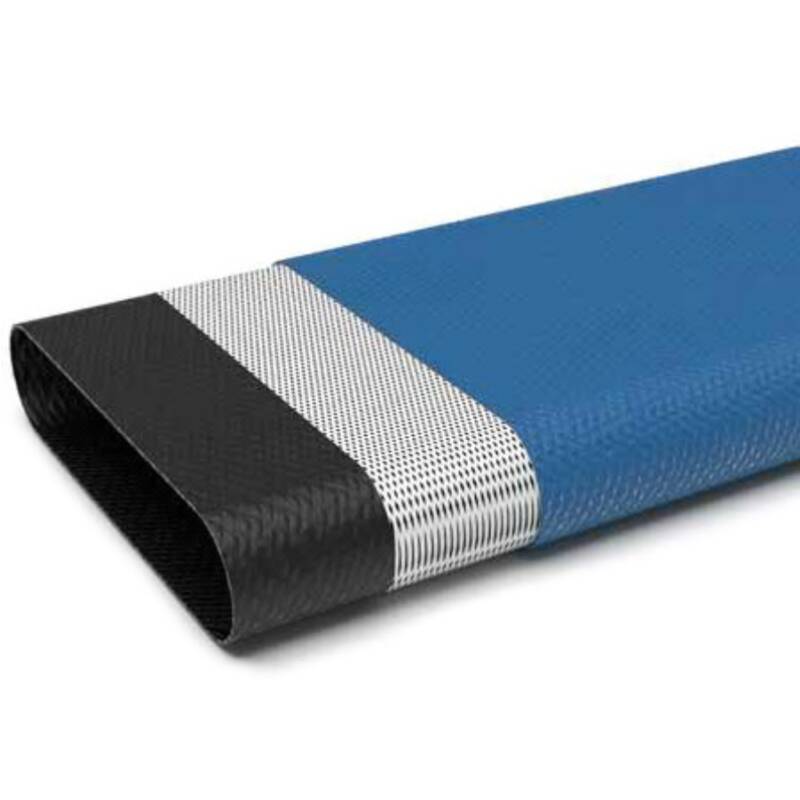

Structure of 3-Ply Flat Hose Construction Hose

Lightweight water drainage hose for agriculture, construction sites, tankers, boats, and ships. Ideal for water supply or delivery of liquid fertilizers to surface irrigation systems and sprinkler systems.

  • Solid black soft PVC inner layer
  • Polyester braid reinforcement
  • Solid blue soft PVC outer layer

orange dot Download

DOWNLOAD RoHS Compliance Declaration - Poolflex, Flexible Hose, Adhesive Hose
DOWNLOAD Chemical Resistance of Plastics
