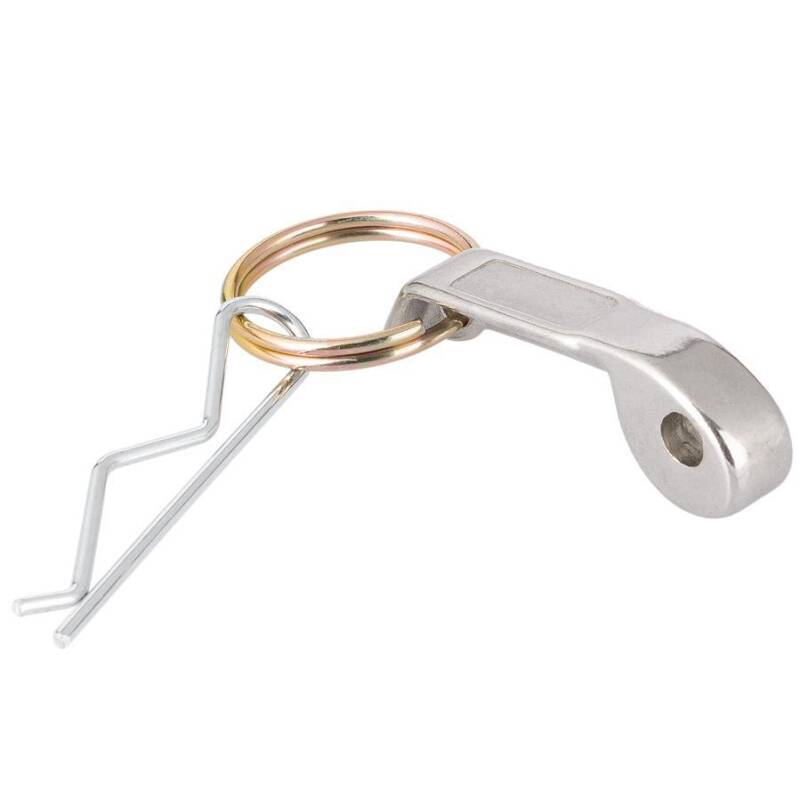

A2 ss spare part lever for CAMLOCK fittings

SKU: KL1200
Auswahl Steuerzone / Lieferland
from
1,43 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
Price
Quantity
KL1200.020.032
3/4"
1,43 €*
pc.:
KL1200.000.037
1"
1,70 €*
pc.:
KL1200.045.063
1 1/4" - 2"
2,19 €*
pc.:
KL1200.090.110
3" und 4"
3,28 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Schlauchkupplung Hebelarmkupplung System Kamlock Edelstahl V2A Ersatzhebel für alle Mutterteile

Ersatzhebel aus V2A Edelstahl | Bolzen aus Stahl verzinkt | Ring aus Stahl eloxiert | Sicherungsklammer V2A Edelstahl

Anschluss:
Ersatzhebel 4teilig: Splint, Hebel, Ring und Sicherungsklammer
Material:
Edelstahl V2A, Ring aus Stahl eloxiert, Bolzen Stahl verzinkt
Kamlock
  1. Stecker (Vaterteil) Edelstahl V4A 1.4408
  2. Kupplung (Mutterteil) Edelstahl V4A 1.4408
  3. Bolzen Stahl verzinkt
  4. Flachdichtung NBR
  5. Hebel V2A Edelstahl
  6. Ring Stahleloxiert
