Description

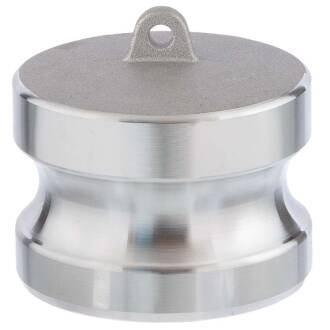

Hose Coupling Lever Arm Coupling System Camlock Aluminum Type DP Male Part with End Cap, Blind Coupling
The Camlock couplings originated in the USA and are certainly one of the most widespread coupling types worldwide. The basis was the standard of the American military.
The Camlock hose coupling quick coupling system impresses with its simple locking mechanism. A family that logically consists of male and female parts, complementing each other, and is therefore universally used in agriculture, industry, and private households in practical installations.
The selection of the right components can be made without extensive expertise, as "male" and "female" parts only need to have identical dimensions (dimension "B") – in our offers, dimension B must always be identical.
Connections with female threads have the European BSP G pipe thread, and connections with male threads have the BSP T pipe thread (tapered or conical) and are compatible with all fittings with identical BSP G pipe threads.
Connection:
Type DP Male Part x End Cap Blind Coupling
Material:
Aluminum
Standard:
MIL A-A-59326A
Temperature:
-20°C to 80°C
Working pressure (PN):
16 bar | -20°C to 40°C
Camlock System in Detail
- Plug (Male Part) Stainless Steel V4A 1.4408
- Coupler (Female Part) Stainless Steel V4A 1.4408
- Bolt Galvanized Steel
- Flat Seal NBR
- Lever V2A Stainless Steel
- Ring Anodized Steel
