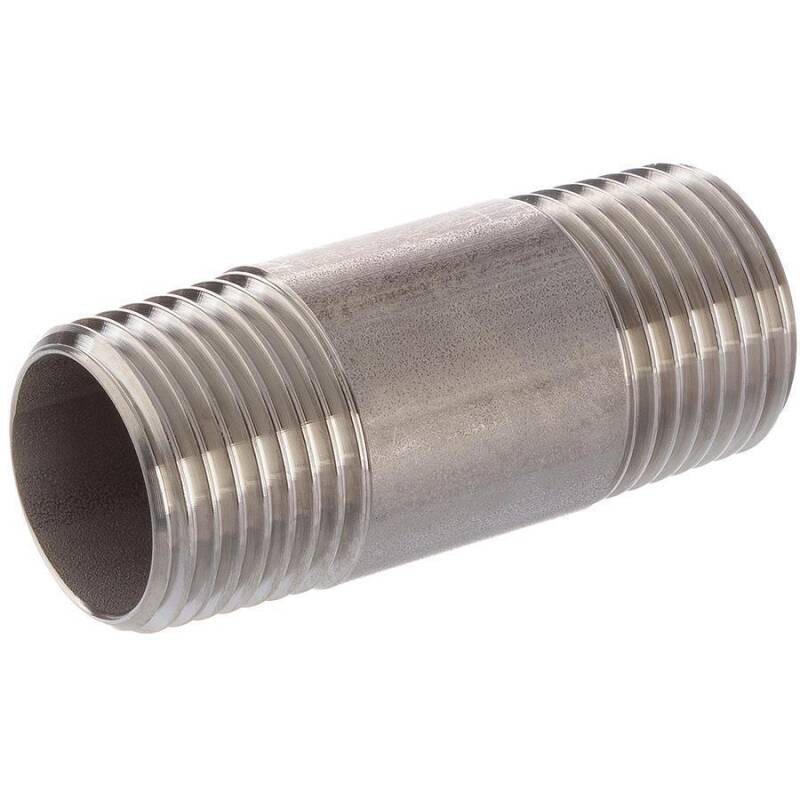

Stainless steel V4A pipe nipple 2-way external thread 1"

SKU: EF0105.032
Auswahl Steuerzone / Lieferland
from
2,49 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(9) { ["dimension_0400_l"]=> string(0) "" ["tabellen_ansicht"]=> string(1) "1" ["meta keywords"]=> string(33) "Rohrnippel,Edelstahl,rostfrei,V4A" ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/EF-105_Zeichnung.jpg" ["dimension_0010_variante"]=> string(2) "1"" ["dimension_0288_g"]=> string(12) "1" (33,25mm)" ["dimension_0718_t"]=> string(3) "2,8" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
G
L
T
Price
Quantity
EF0105.032.040
1", Länge 40mm
R 1" (33,25mm)
40
2,8
2,49 €*
pc.:
In stock: 88
delivery status: 1 - 4 working days
EF0105.032.050
1", Länge 50mm
R 1" (33,25mm)
50
2,8
2,92 €*
pc.:
In stock: 104
delivery status: 1 - 4 working days
EF0105.032.060
1", Länge 60mm
R 1" (33,25mm)
60
2,8
3,34 €*
EF0105.032.070
1", Länge 70mm
R 1" (33,25mm)
70
2,8
3,83 €*
pc.:
In stock: 152
delivery status: 1 - 4 working days
EF0105.032.080
1", Länge 80mm
R 1" (33,25mm)
80
2,8
4,26 €*
pc.:
In stock: 484
delivery status: 1 - 4 working days
EF0105.032.090
1" Länge 90mm
R 1" (33,25mm)
90
2,8
4,65 €*
pc.:
In stock: 362
delivery status: 1 - 4 working days
EF0105.032.100
1", Länge 100mm
R 1" (33,25mm)
100
2,8
5,08 €*
pc.:
In stock: 341
delivery status: 1 - 4 working days
EF0105.032.110
1", Länge 110mm
R 1" (33,25mm)
110
2,8
5,50 €*
pc.:
In stock: 249
delivery status: 1 - 4 working days
EF0105.032.120
1", Länge 120mm
R 1" (33,25mm)
120
2,8
5,96 €*
pc.:
In stock: 48
delivery status: 1 - 4 working days
EF0105.032.130
1", Länge 130mm
R 1" (33,25mm)
130
2,8
6,45 €*
pc.:
In stock: 169
delivery status: 1 - 4 working days
EF0105.032.140
1", Länge 140mm
R 1" (33,25mm)
140
2,8
6,88 €*
pc.:
In stock: 101
delivery status: 1 - 4 working days
EF0105.032.150
1", Länge 150mm
R 1" (33,25mm)
150
2,8
7,31 €*
pc.:
In stock: 101
delivery status: 1 - 4 working days
EF0105.032.160
1", Länge 160mm
R 1" (33,25mm)
160
2,8
7,74 €*
pc.:
In stock: 99
delivery status: 1 - 4 working days
EF0105.032.170
1", Länge 170mm
R 1" (33,25mm)
170
2,8
8,15 €*
pc.:
In stock: 105
delivery status: 1 - 4 working days
EF0105.032.180
1", Länge 180mm
R 1" (33,25mm)
180
2,8
8,68 €*
pc.:
In stock: 6
delivery status: 1 - 4 working days
EF0105.032.190
1", Länge 190mm
R 1" (33,25mm)
190
2,8
9,10 €*
pc.:
In stock: 69
delivery status: 1 - 4 working days
EF0105.032.200
1", Länge 200mm
R 1" (33,25mm)
200
2,8
9,50 €*
pc.:
In stock: 34
delivery status: 1 - 4 working days
EF0105.032.210
1", Länge 210mm
R 1" (33,25mm)
210
2,8
9,92 €*
pc.:
In stock: 108
delivery status: 1 - 4 working days
EF0105.032.220
1", Länge 220mm
R 1" (33,25mm)
220
2,8
10,35 €*
pc.:
In stock: 115
delivery status: 1 - 4 working days
EF0105.032.230
1", Länge 230mm
R 1" (33,25mm)
230
2,8
10,91 €*
pc.:
In stock: 100
delivery status: 1 - 4 working days
EF0105.032.240
1", Länge 240mm
R 1" (33,25mm)
240
2,8
11,33 €*
pc.:
In stock: 122
delivery status: 1 - 4 working days
EF0105.032.250
1", Länge 250mm
R 1" (33,25mm)
250
2,8
11,76 €*
pc.:
In stock: 33
delivery status: 1 - 4 working days
EF0105.032.260
1", Länge 260mm
R 1" (33,25mm)
260
2,8
12,19 €*
pc.:
In stock: 139
delivery status: 1 - 4 working days
EF0105.032.270
1", Länge 270mm
R 1" (33,25mm)
270
2,8
12,61 €*
pc.:
In stock: 172
delivery status: 1 - 4 working days
EF0105.032.280
1", Länge 280mm
R 1" (33,25mm)
280
2,8
13,03 €*
pc.:
In stock: 151
delivery status: 1 - 4 working days
EF0105.032.290
1", Länge 290mm
R 1" (33,25mm)
290
2,8
13,46 €*
pc.:
In stock: 248
delivery status: 1 - 4 working days
EF0105.032.300
1", Länge 300mm
R 1" (33,25mm)
300
2,8
13,85 €*
pc.:
In stock: 44
delivery status: 1 - 4 working days

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Pipe nipple 2-way external thread 1", stainless steel fitting, quality AISI 316, V4A

Connection:
2-way male thread
Thread:
BSP pipe thread ISO 7-1/EN 10226-1 external thread conical (R), not self-sealing, sealing with hemp, sealing paste or similar.
Temperature:
-20°C to 200°C
Working pressure (PN):
20 bar | -20°C to 40°C
16.5 bar | 100°C
15 bar | 150°C
13.5 bar | 200°C
Material
Stainless steel AISI 316 | material 1.440 | X5CrNiMo 17-12-2 | V4A
DIN:
Dimensions conform to ISO 4144, connection thread to ISO 7/1 (DIN 2999 / BS 21)
Color:
Gray Stainless steel






Druck_Temperatur

The key data

  • Working temperature -20°C to 200°C
  • Working pressure PN 20 bar (300 psi)
  • Dimensioning according to ISO 4144
  • Whitworth thread, CNC machined in accordance with ISO 7/1 (DIN 2999 / BS21)
  • Manufacturing standard UNE EN 10213-4, tolerance DIN 1.4408

Stainless steel (according to EN 10020) is a designation for alloyed or unalloyed steels with a special degree of purity. Steels whose sulphur and phosphorus content (so-called iron companions) does not exceed 0.025%.
Alloy 316 is a standard steel grade with molybdenum. The molybdenum gives alloy 316 better corrosion resistance than 304, in particular greater resistance to pitting and crevice corrosion in chloride-containing media. The austenitic structure gives this alloy a high degree of toughness, even at very low temperatures, high creep strength, creep rupture strength and tensile strength at elevated temperatures. The alloy is colloquially known as V4A stainless steel.

Stainless steel AISI 316 | material 1.4401 (X5CrNiMo17-12-2) (V4A) Application: According to DVGW worksheet W541 (basis for the requirements for stainless steel pipes for domestic drinking water installations), the steel material 1.4401 is the most commonly used.
It can be used in a wide range of applications in the chemical, petrochemical and natural gas industries, the food industry, corrosive environments and extreme temperatures ... Fluid technology, boilers, condensers, heat exchangers, reactors ...

DOWNLOADRoHS Confirmation HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
