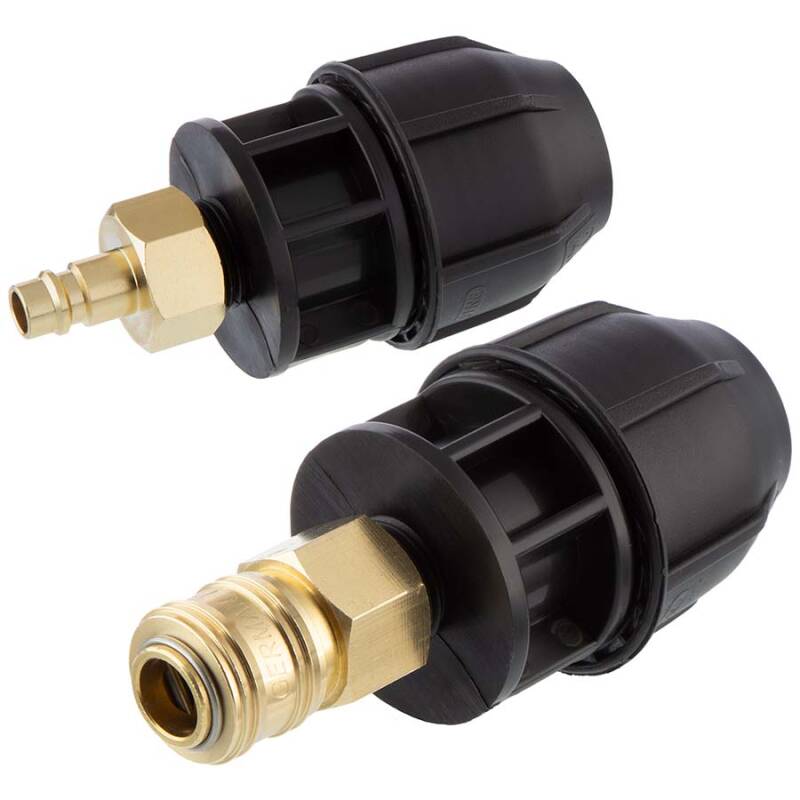

Adapter compression fitting x compressed air coupling

from
8,39 €
incl. 19% VAT , plus shipping costs
  • Currently out of stock
  • Currently out of stock
Variants

Product picture
Item no.
Variation
d
E
G
L
SW
Weight
Pipe O-ø
Price
Quantity

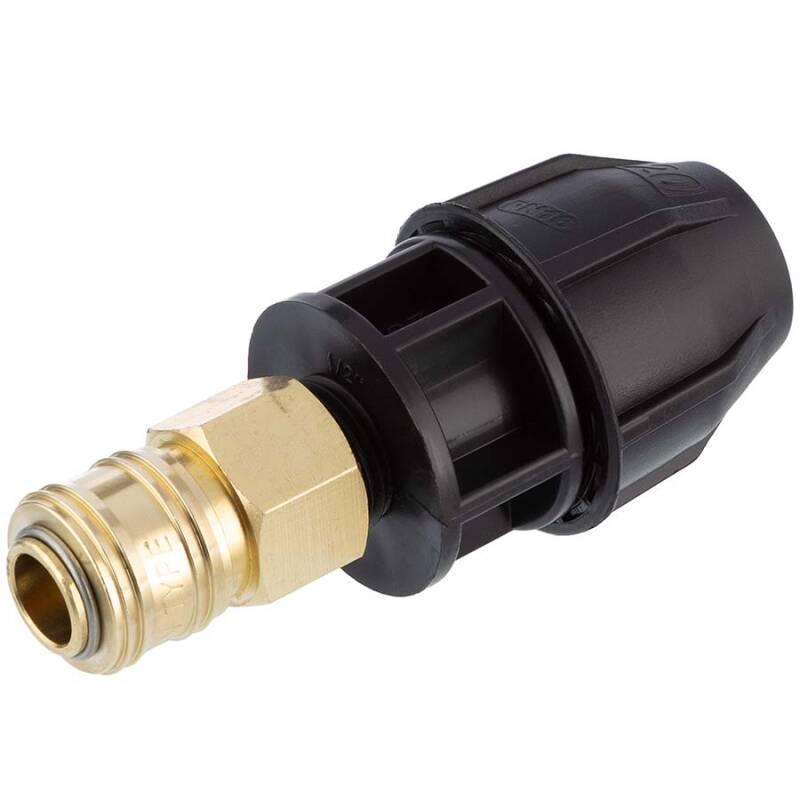

Übergangsmuffe x Druckluftkupplung 20mm x 7,2mm
PZ0106.020.072
20mm x 7,2mm
20
45
1/2" (20,95mm)
109
21
115
20
8,39 €*
Übergangsmuffe x Druckluftkupplung 25mm x 7,2mm
PZ0106.025.072
25mm x 7,2mm
25
55
1/2" (20,95mm)
116
21
137
25
8,87 €*

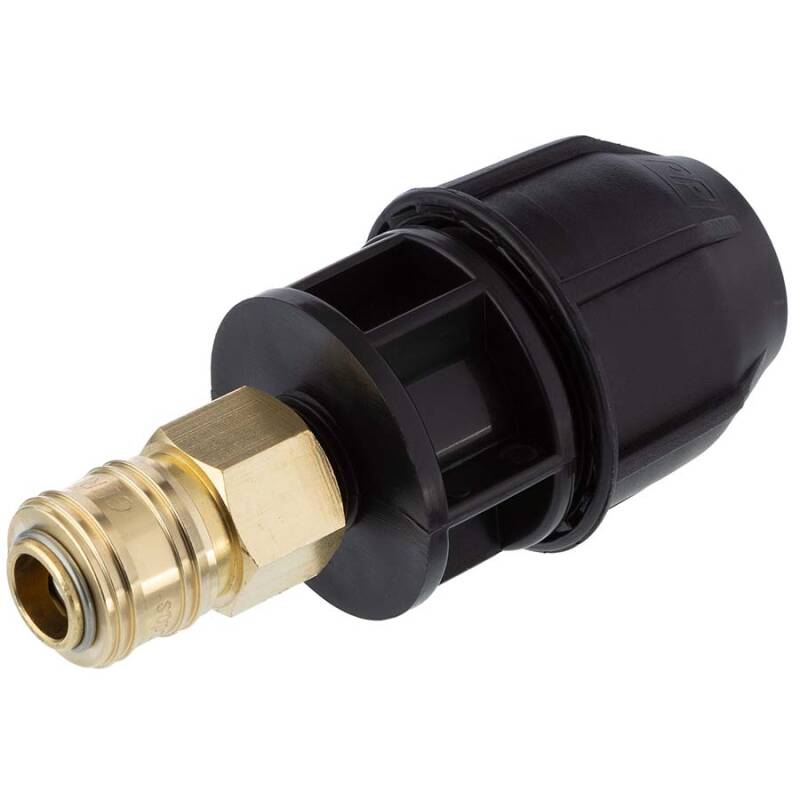

Übergangsmuffe x Druckluftkupplung 32mm x 7,2mm
PZ0106.032.072
32mm x 7,2mm
32
62
1/2" (20,95mm)
124
21
167
32
10,07 €*

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PP Klemmringverschraubung Übergangsmuffe, Klemme x Druckluftkupplung 7,2mm

PP Klemmringverschraubung mit Druckluftkupplung zum Anschluss eines Kompressors zum Ausblasen des Bewässerungssystems, um die Gefahr von Frostschäden am Bewässerungssystem zu minimieren und um Ihr System "winterfest" zu machen.

Anschluss:
Klemme x Innengewinde mit Verstärkungsring und Messing Druckluftkupplung Nennweite: 7,2mm
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PP Polypropylen | Messing
O-Ring:
NBR
Farbe:
Schwarz, Überwurfmutter: Schwarz
Lieferumfang:
PP Klemmfitting für PE-Rohr
Messing Druckluftkupplung
1 Rolle Teflonband
Version 32mm zusätzlich Reduzierring in PP Polypropylen

Bewässerung:

  • Landwirtschaft, Gärtnerei & Gartenbau, Weinberge

Besprengung:

  • Wohngebiete, kommunale Bereiche, Sportplätze, Golfplätze, Reitplätze

DOWNLOAD RoHS Bestätigung HTC mit Messing

DOWNLOAD verarbeiten von PP Klemm Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen
