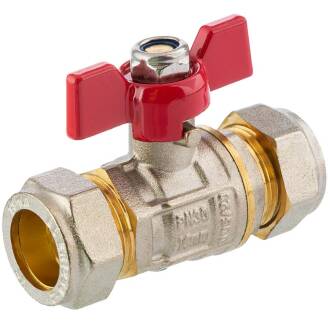

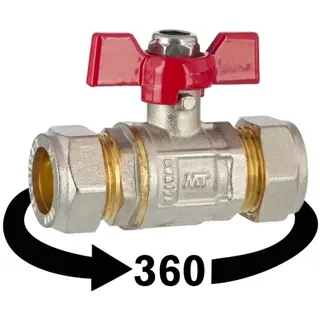

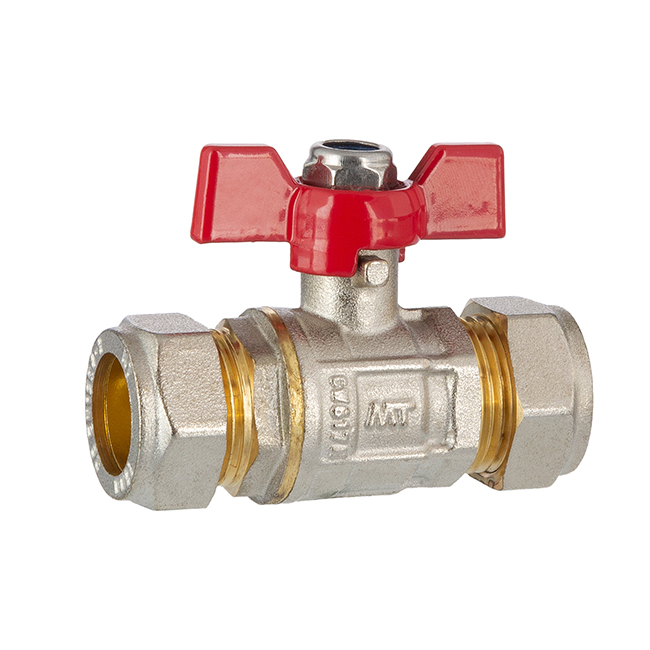

Brass ball valve compression fitting

SKU: MK0920
Auswahl Steuerzone / Lieferland
from
7,82 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately

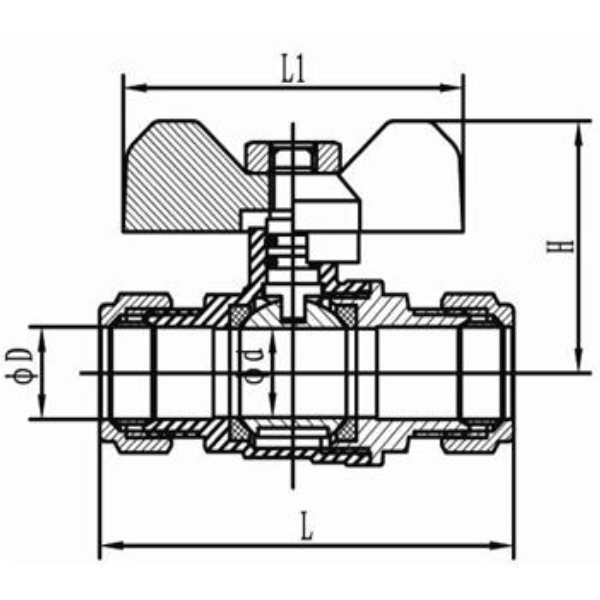

   Variants

Item no.
Variation
D
H
L
L1
Price
Quantity
MK0920.000.015
15 x 15mm
14,5
40,5
69
58,5
7,82 €*
pc.:
MK0920.000.018
18 x 18mm
16
43
76,5
58,5
8,83 €*
pc.:
MK0920.000.022
22 x 22mm
19
47,5
80
64,5
13,05 €*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

!

  • Body made of nickel-plated brass UNE EN 12164
  • Screws made of nickel-plated brass
  • Brass ring
  • Flow direction on both sides
  • Temperature range -20°C to 180°C
  • Max. Operating pressure PN 16 at 30°C for cold and hot water
  • Designed for use with copper pipe EN 1057:1996 and stainless steel pipe BS4127:1994
  • Fixing thread to ISO 228/1
  • Suitable for use in circuits for water distribution and non-aggressive fluids with higher or lower density.

    WRAS Approved

    Clamp fittings for copper and stainless steel pipe are approved by the Water Regulations Advisory Scheme (WRAS) mark of conformity in the UK for use with potable water and meet the high standard of an approved plumbing fitting.


    Anzugsdrehmoment

    The cutting ring

    Important technical note:
    The cutting ring may only be used once. If the fitting is removed and is to be used again, the cutting ring must be replaced.

    DOWNLOADRoHS confirmation HTC
    DOWNLOADREACH addition brass HTC
    DOWNLOADWRAS certification
    DOWNLOAD the thread identification - or why 1" is not 25.4mm
