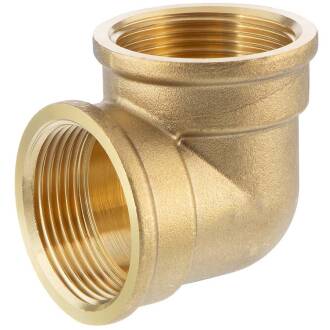

Brass female threaded elbow 90°

SKU: MF0409
Auswahl Steuerzone / Lieferland
from
1,31 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
A
B
C
G
Price
Quantity
MF0409.000.016
3/8"
17,5
17,5
10
3/8" (16,66mm)
1,31 €*
pc:
MF0409.000.020
1/2"
25
25
12
1/2" (20,95mm)
1,69 €*
pc:
MF0409.000.025
3/4"
28
28
14
3/4" (26,44mm)
3,03 €*
pc:
MF0409.000.032
1"
32
32
15
1" (33,25mm)
3,53 €*
pc:
MF0409.000.040
1 1/4"
38
38
17
1 1/4" 41,91mm)
7,44 €*
pc:
MF0409.000.050
1 1/2"
40,5
40,5
17
1 1/2" (47,80mm)
9,57 €*
pc:
MF0409.000.063
2"
51
51
25
2" (59,61mm)
15,32 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass elbow 90°, 2-way female thread

Connection:
2-way female thread
material:
Brass CW61N (can be used for drinking water pipes)
Thread:
BSP pipe thread ISO 228-1, not self-sealing, sealing with Teflon tape or similar.
Temperature:
-20°C to 150°C
Working pressure (PN):
max. 16 bar at 20°C medium water
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm

Brass elbow 90 degrees 2-fold female thread

The 90 degree elbow fitting made of bare brass with double female thread is made of high-quality brass CW61N, which can be used for drinking water pipes.
In order to be able to connect fittings or pipes with identical external threads at an angle of 90 degrees, brass elbows 90 degrees are used. The brass elbow has an internal thread on both sides. The brass elbow can be used for cold water and hot water. The maximum working pressure is PN 16 bar at 20° medium water. The size specification and our manufacturer's logo are located on the outside of the brass body.

Brass elbows are manufactured according to the ISO 228-1 BSP Whitworth thread G-type (gas thread) standard. The cross with the inch - or why 1" is not 25.4mm

Just like plastic fittings, metal threads can be sealed with PTFE (Teflon) thread sealing tape or thread sealing thread, but unlike plastic fittings, they can also be sealed with swelling sealing material such as hemp or flax in combination with thread sealing paste.

Teflon tape, sealing thread, hemp and sealing paste: Thread sealing material

We offer our customers in our webshop PVC-Welt.de a wide range of sizes of brass elbow 90 degree 2-fold internal thread. From 3/8 inch, which corresponds to 16.66 mm, to 2 inch, you will find this brass fitting in our webshop PVC-Welt.de. The sizes 1/2 inch, 3/4" inch, 0.75 inch or 1 inch, which is roughly equivalent to 33.25 mm, are widely used in plumbing technology. In water transportation, e.g. for sprinkler systems, the sizes 1 1/4 inch, 5/4 inch and 1 1/2 inch, 6/4 inch are also in demand.

Brass threaded fittings in craftsman quality at PVC-Welt.de buy. All types and sizes immediately available from stock!
