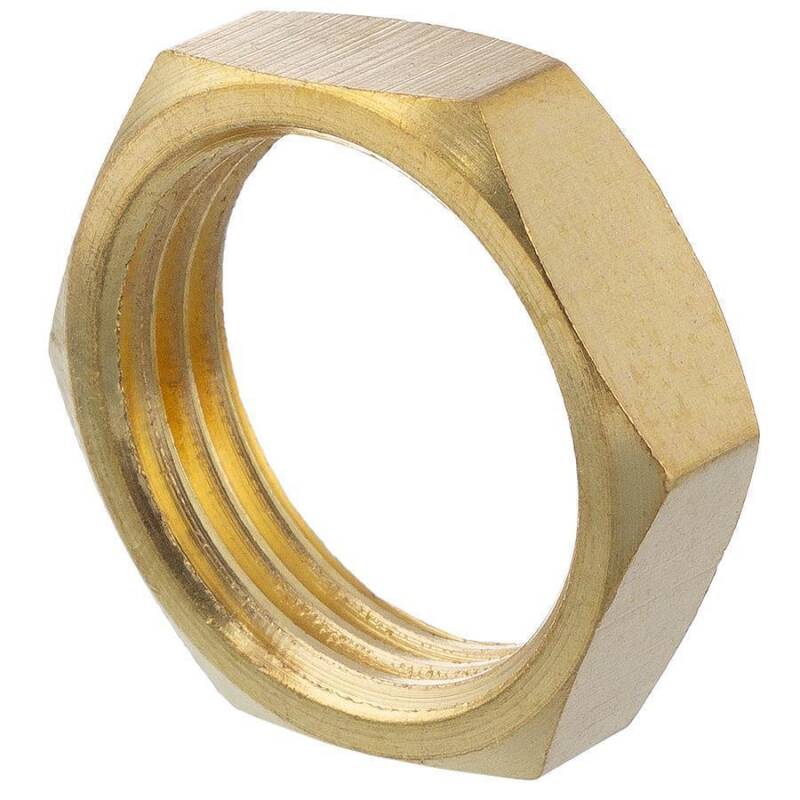

Brass female threaded nut

SKU: MF0809
Auswahl Steuerzone / Lieferland
from
0,54 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
B
G
SW
Price
Quantity
MF0809.000.016
3/8"
5,6
3/8" (16,66mm)
19
0,54 €*
pc.:
MF0809.000.020
1/2"
6
1/2" (20,95mm)
24
0,58 €*
pc.:
MF0809.000.025
3/4"
6,8
3/4" (26,44mm)
30
0,81 €*
pc.:
MF0809.000.032
1"
7,8
1" (33,25mm)
37
1,24 €*
pc.:
MF0809.000.040
1 1/4"
7
1 1/4" (41,91mm)
49
2,14 €*
pc.:
MF0809.000.050
1 1/2"
6,2
1 1/2" (47,81mm)
55
2,31 €*
pc.:
MF0809.000.063
2"
8,5
2" (59,61mm)
65,5
3,71 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass lock nut Lock nut internal thread

Connection:
Female thread
Thread:
BSP pipe thread ISO 228-1, not self-sealing
Temperature:
-20°C to 150°C
material:
Brass body UNE EN 12165
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
