Variants

Item no.
Variation
D1
D max.
D min.
DN
G
L
L1
L2
Price
Quantity
MF0811.020.013
1/2" x 13mm
23,5
14,5
13
11
1/2" (20,95mm)
36
6
24
1,21 €*
pc:
MF0811.025.013
3/4" x 13mm
29,5
14,5
13
11
3/4" (26,44mm)
39
6
27
1,39 €*
pc:
MF0811.025.019
3/4" x 19mm
28
20,5
19
16,5
3/4" (26,44mm)
41
6
28
1,70 €*
pc:
MF0811.025.025
3/4" x 25mm
29
25,5
23,5
20,5
3/4" (26,44mm)
41
7
28
1,99 €*
pc:
MF0811.032.019
1" x 19mm
34
20,5
19
16,5
1" (33,25mm)
43
7
29
2,11 €*
pc:
MF0811.032.025
1" x 25mm
34
26
24,5
22
1" (33,25mm)
46
7
33
2,24 €*
pc:
MF0811.032.032
1" x 32mm
35
33
31
26
1" (33,25mm)
46
7
32
3,12 €*
pc:
MF0811.040.025
1 1/4" x 25mm
43,5
26
24
21
1 1/4" (41,91mm)
49
8
35,5
3,56 €*
pc:
MF0811.040.032
1 1/4" x 32mm
44
33
31
27,5
1 1/4" (41,91mm)
50
8
36
3,69 €*
pc:
MF0811.040.038
1 1/4" x 38mm
44
39
36,5
33
1 1/4" (41,91mm)
54
8
40
4,95 €*
pc:
MF0811.040.040
1 1/4" x 40mm
44
41
38,5
34
1 1/4" (41,91mm)
54
8
39,5
5,37 €*
pc:
MF0811.050.038
1 1/2" x 38mm
51
39
36,5
33
1 1/2" (47,81mm)
58
9
42
6,99 €*
pc:
MF0811.050.040
1 1/2" x 40mm
51
41
38,5
35
1 1/2" (47,81mm)
58
9
42
6,91 €*
pc:
MF0811.050.050
1 1/2" x 50mm
53
51
49
40
1 1/2" (47,81mm)
60
9
44
7,90 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

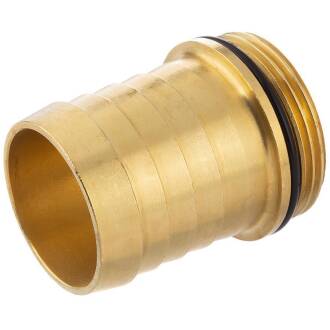

Messing Schlauchtülle Aussengewinde mit O-Ring x Tülle

Die Abdichtung erfolgt rein über den O-Ring, eine Abdichtung des Gewindes ist nicht nötig. Durch den Abschluss zur planen Gegenfläche ist die Messing Schlauchtülle mit integrierten O-Ring auch ideal für Kunststoff-Innengewinde einsetzbar.


Anschluss:
Aussengewinde mit O-Ring x Tülle
Gewinde:
BSP Rohrgewinde G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, Abdichtung mit O-Ring
Arbeitsdruck (PN):
PN 10 bar
Material Tülle:
Messing MS 58 | CW614N
Material O-Ring:
NBR
DIN:
Dimensionen konform ISO 4144, Anschlussgewinde nach ISO 7/1 (DIN 2999 / BS 21)
Farbe:
Messing
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
