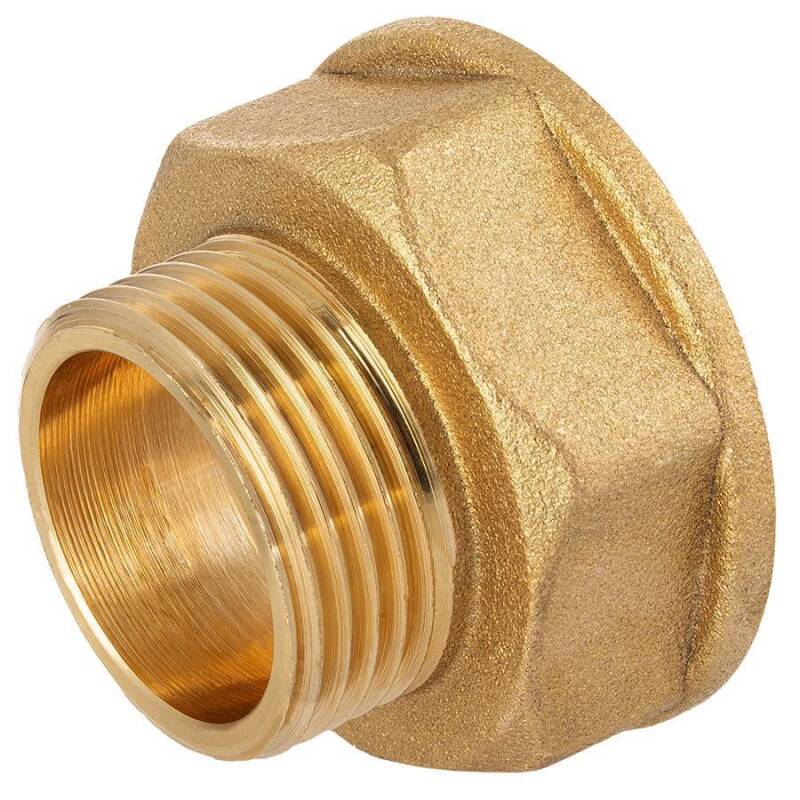

Brass reducing male/female threaded socket

Brass reducing male/female threaded socket

SKU: MF0207

Auswahl Steuerzone / Lieferland

from

0,71 €

incl. 19% VAT , plus

Available immediately

View item details in PDF

How to measure a threaded fitting

This item has variations. Please select the requested variation.

Available immediately

Variants

Depending on the variant, the article is reduced in the external thread or in the internal thread. This can only be partially reflected in the graphic representation of the technical drawing. Important: The dimension G is always the external thread and the dimension G1 is always the internal thread

Item no.

Variation

Price

Quantity

MF0207.012.016

1/4" x 3/8"

1/4" (13,16mm)

3/8" (16,66mm)

1,13 €^*

MF0207.016.012

3/8" x 1/4"

3/8" (16,66mm)

1/4" (13,66mm)

7,5

1,07 €^*

MF0207.016.020

3/8" x 1/2"

3/8" (16,66mm)

1/2" (20,96mm)

21,5

0,71 €^*

MF0207.020.016

1/2" x 3/8"

1/2" (20,96mm)

3/8" (16,66mm)

9,5

1,02 €^*

MF0207.020.025

1/2" x 3/4"

1/2" (20,96mm)

3/4" (26,44mm)

23,5

9,5

1,02 €^*

MF0207.020.032

1/2" x 1"

1/2" (20,96mm)

1" (33,25mm)

2,46 €^*

MF0207.025.020

3/4" x 1/2"

3/4" (26,44mm)

1/2" (20,96mm)

22,5

1,57 €^*

MF0207.025.032

3/4" x 1"

3/4" (26,44mm)

1" (33,25mm)

9,5

35,5

1,56 €^*

MF0207.025.040

3/4" x 1 1/4"

3/4" (26,44mm)

1 1/4" (41,91mm)

8,5

4,47 €^*

MF0207.032.025

1" x 3/4"

1" (33,25mm)

3/4" (26,44mm)

26,5

11,5

9,5

3,05 €^*

MF0207.032.040

1" x 1 1/4"

1" (33,25mm)

1 1/4" (41,91mm)

11,5

13,5

3,69 €^*

MF0207.032.050

1" x 1 1/2"

1" (33,25mm)

1 1/2" (47,80mm)

34,5

13,5

5,20 €^*

MF0207.032.063

1" x 2"

1" (33,25mm)

2" (59,61mm)

34,5

8,46 €^*

MF0207.040.050

1 1/4" x 1 1/2"

1 1/4" (41,91mm)

1 1/2" (47,80mm)

34,5

5,62 €^*

MF0207.040.063

1 1/4" x 2"

1 1/4" (41,91mm)

2" (47,80mm)

8,48 €^*

MF0207.050.063

1 1/2" x 2"

1 1/2" (47,80mm)

2" (59,61mm)

36,5

8,15 €^*

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

Description

Messing Muffennippel reduziert, Aussengewinde x Innengewinde

Anschluss:

Aussengewinde x Innengewinde

Gewinde:

BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.

Temperatur:

-20°C bis 150°C

Arbeitsdruck (PN):

max. 16 bar bei Medium Wasser

Material:

Messingkörper UNE EN 12165

DOWNLOADRoHS Bestätigung HTC

DOWNLOADREACH Zusatz Messing HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
