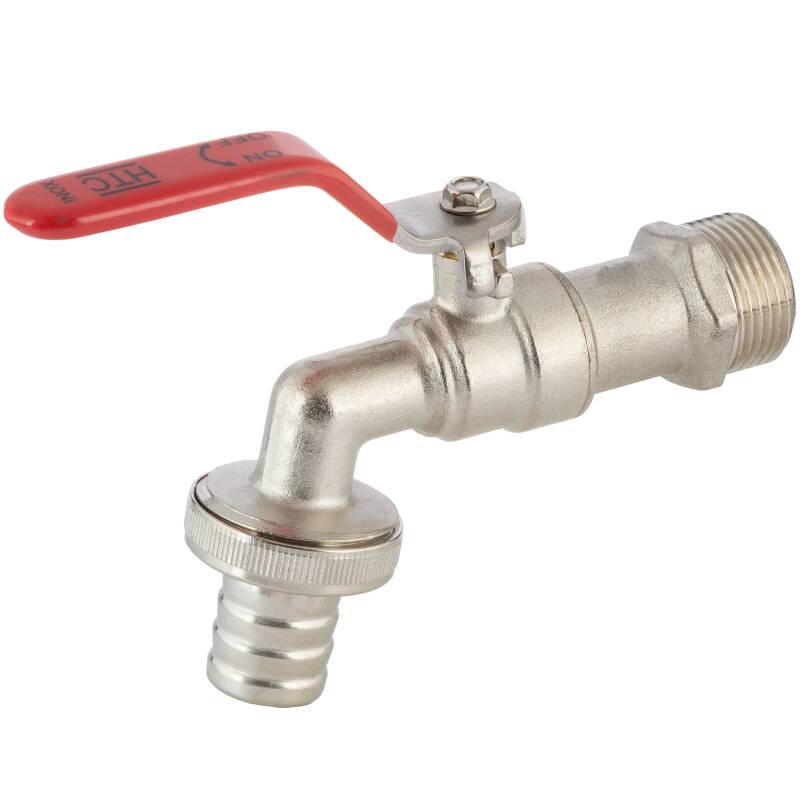

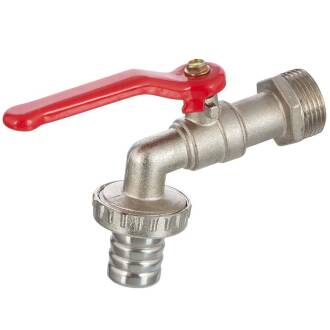

Brass spigot male thread x hose tail with A2 ss handle

  • Available immediately
   Variants

Item no.
Variation
A
D
DN
G
G1
H
L
L1
Price
Quantity
MA3435.020.025
1/2" auf 3/4" (Tülle 15mm)
81
15
8
1/2" (20,96mm)
3/4" (26,44mm)
42
131
11
5,06 €*
pc.:
MA3435.025.032
3/4" auf 1" (Tülle 20mm)
81
20
9,5
3/4" (26,44mm)
1" (33,25mm)
42
139
12
7,85 €*
pc.:
MA3435.032.040
1" x 1 1/4" (Tülle 26mm)
110
26
13
1" (33,25mm)
1 1/4" (41,91mm)
55
177
15
12,78 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Messing Auslaufhahn, Wasserhahn, Aussengewinde x Aussengewinde mit Schraubtülle - V2A Hebel

Anschluss:
Aussengewinde x Aussengewinde (Tülle)
Gewinde:
BSP Rohrgewinde G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, nicht selbstdichtend, Abdichtung mit Hanf, Dichtpaste o.ä.
Einsatzgebiet:
geeignet für Kalt- und Warmwasser
Arbeitsdruck (PN):
16 bar bei 20°C | 8 bar bei 80°C
Material:
Messing MS 58 | CW614N
Dichtung:
PTFE (Teflon) und zweifach O-Ring | Schlauchtüllenaufsatz mit Flachdichtung
Farbe:
Messing verchromt, Griff Überzug: Rot

Tipp: Ein Hahn aus Metall benötigt etwas Pflege. Vorallem im Scherbereich des Hebels sammelt sich Feuchtigkeit, welche zu Flugrost führen kann. Ein Spritzer Rostlöser bzw. WD40 nach der Installation und in regelmäßigen Abständen vermeidet dies und Sie haben lange Freude an Ihrem IBC Container Anschluss mit Wasserhahn von HTC Logo.


DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
