Variants

Product picture
Item no.
Variation
l/h
Price
Quantity
Bubbler
BW0108.000.111
360°, Fan Spray
0 -75,7
0,26 €*
pc.:
Bubbler
BW0108.000.222
360°, 8-Strahl
0 -37,8
0,26 €*
pc.:
Bubbler
BW0108.000.333
180°, 5-Strahl
0 -37,8
0,26 €*
pc.:
Bubbler
BW0108.000.444
Umbrella Bubbler
0 - 94,6
2,00 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

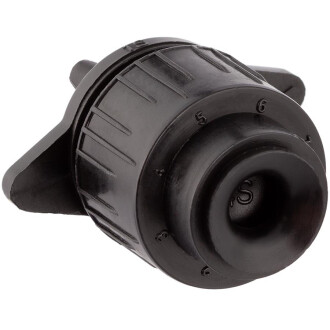

Tropfer | Bubbler, einstellbarer Emitter


Dial-A-FloTM -Emitter sind von der vollständigen Abschaltung bis zum maximalen Durchfluss einstellbar und können bei Bedarf zur Reinigung auseinandergenommen werden.
Durch Drehen der Kappe werden die Emitter von einem Tropfstrahler in einen Bubbler umgewandelt. Die Kappe ist kalibriert, so dass Sie die gewünschte Ausflussrate wählen können.


Mikrobewässerung mit hoher Zielgenauigkeit

  • Fächer-, Strahl und Umbrella (Regenschirm) form
  • Steuerung für Durchfluss- und Radiuseinstellung durch Kappendrehung
  • Betriebsdaten: 1 bis 2,5 bar
  • passend für Mikroleitung 4mm

BW-108 Anwendung

DIAL-A-FLOTM Tropfer | Bubbler

Wie mit jedem Emitter Einzeltropfer wird ein Loch in die Versorgungsleitung gestochen und der Tropfer | Bubbler kann zielgerichtet an der Pflanze eingesetzt werden.

Strahl Spray

Position
Discharge
Radius
0
0 l/h
0
1
8,7 l/h
0
2
11,7 l/h
0
3
14,7 l/h
5
4
18,1 l/h
8
5
21,6 l/h
10
6
24,6 l/h
15
7
27,2 l/h
18
8
30,6 l/h
23

Fan Spray

Position
Discharge
Radius
0
0 l/h
0
1
18,9 l/h
0
2
31,0 l/h
30
3
46,9 l/h
60
4
51,5 l/h
76
5
56,0 l/h
91
6
59,0 l/h
106
7
62,4 l/h
122
8
64,7 l/h
132

Umbrella Spray

Position
Discharge
Radius
0
0 l/h
0
1
18,9 l/h
0
2
31,0 l/h
0
3
46,9 l/h
0
4
51,4 l/h
3
5
56,0 l/h
3
6
59,0 l/h
6
7
62,4 l/h
6
8
64,7 l/h
8

Angegebene Daten bei einem Druck von ca. 2 bar.
Radiusangaben in cm.


Sprühbilder im Vergleich: Fan Spray - 360°, 8-Strahl

Sprühbild

Sprühbild
