Description

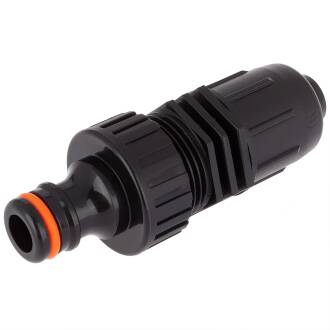

Connection Set QuickConnector to Drip/Supply Pipe
Available options: QuickConnector transition to high-quality pressure-regulating NDS AGRIFIM filter with IRRITEC clamp
16 - 17mm or just QuickConnector to IRRITEC clamp 16 - 17mm
The connection set QuickConnector to drip/supply pipe is installed before your drip irrigation zone.
The set includes all the necessary components to create a connection with a garden hose between your water outlet or garden faucet and a drip/supply pipe. Since the drip irrigation system operates at around 2 bar and the fine drip outlets must be protected from particle contamination, we offer a set with a pressure-regulating filter set to 2.1 bar.
- QuickConnector connection
- Optionally: Pressure-regulating Y-filter at 2.1 bar, stainless steel mesh cartridge 120 Mesh (NDS AGRIFIM)
- IRRITEC clamp for drip/supply pipe with 16-17mm outer diameter
Important: The IRRITEC clamp is rated for a maximum of 4 bar (PN4)!
