Variants

Item no.
Variation
D
S
Weight
Price
Quantity
DI0003.000.016
für Aussengewinde 3/8"
20,5
2,7
1
0,17 €*
DI0003.000.020
für Aussengewinde 1/2"
25,0
3,5
1
0,17 €*
pc:
DI0003.000.025
für Aussengewinde 3/4"
31,0
3,5
2
0,21 €*
pc:
DI0003.000.032
für Aussengewinde 1"
37,0
3,5
2
0,25 €*
pc:
DI0003.000.040
für Aussengewinde 1 1/4"
45,0
4,0
2
0,43 €*
pc:
DI0003.000.050
für Aussengewinde 1 1/2"
55,0
5,7
5
0,58 €*
pc:
DI0003.000.063
für Aussengewinde 2"
65,0
5,7
6
0,63 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

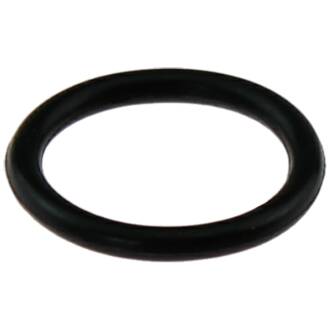

NBR O-Ring Shore 70 für Aussengewinde


  • Material NBR
  • Farbe Schwarz
Flachdichtung EPDM

Anwendungsbeispiel

Achten Sie beim Einsatz von O-Ring zum Abdichten von Aussengewinde auf genügend Auflagefläche sowie die Länge des Aussengewindes zur Länge des Innengewindes Ihres Fittings.
Dreht sich das Gegenstück auf dem O-Ring unter starkem Druck, wird dieser sich nach außen wegwinden! Ohne genügend Auflagefläche ist eine Abdichtung nicht möglich.
