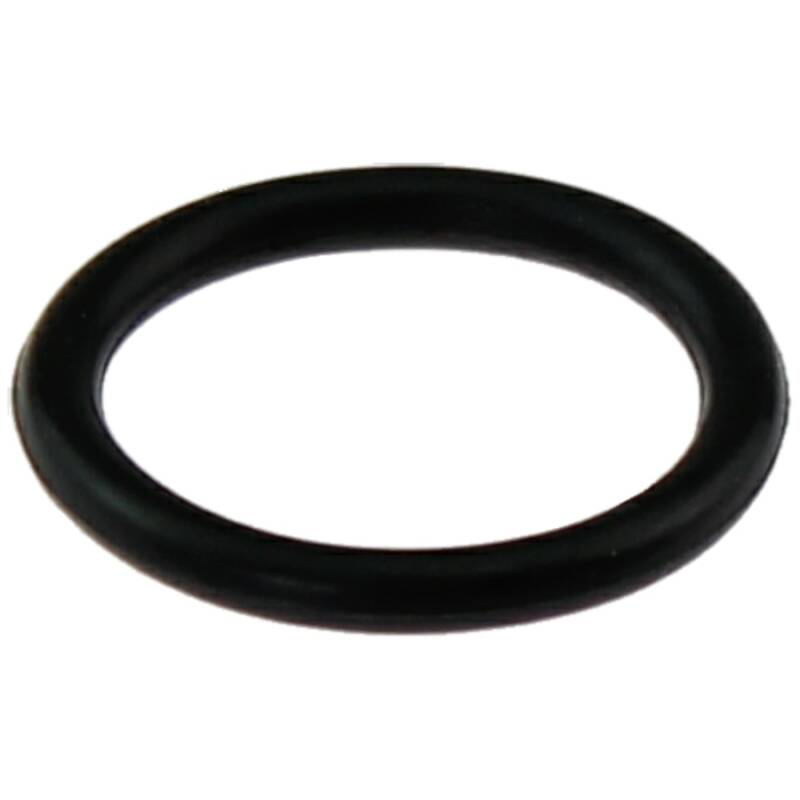

EPDM O-Ring for male thread

from
0,17 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
D
S
Weight
Price
Quantity
DI0003.000.016
für Aussengewinde 3/8"
20
2,4
1
0,17 €*
pc:
DI0003.000.020
für Aussengewinde 1/2"
25,0
3,5
1
0,17 €*
pc:
DI0003.000.025
für Aussengewinde 3/4"
31,0
3,5
2
0,21 €*
pc:
DI0003.000.032
für Aussengewinde 1"
37,0
3,5
2
0,25 €*
pc:
DI0003.000.040
für Aussengewinde 1 1/4"
45,0
4,0
2
0,43 €*
pc:
DI0003.000.050
für Aussengewinde 1 1/2"
55,0
5,7
5
0,58 €*
pc:
DI0003.000.063
für Aussengewinde 2"
65,0
5,7
6
0,63 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

NBR O-Ring Shore 70 für Aussengewinde


  • Material NBR
  • Farbe Schwarz
Flachdichtung EPDM

Anwendungsbeispiel

Achten Sie beim Einsatz von O-Ring zum Abdichten von Aussengewinde auf genügend Auflagefläche sowie die Länge des Aussengewindes zur Länge des Innengewindes Ihres Fittings.
Dreht sich das Gegenstück auf dem O-Ring unter starkem Druck, wird dieser sich nach außen wegwinden! Ohne genügend Auflagefläche ist eine Abdichtung nicht möglich.

DOWNLOADRoHS Bestätigung HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
