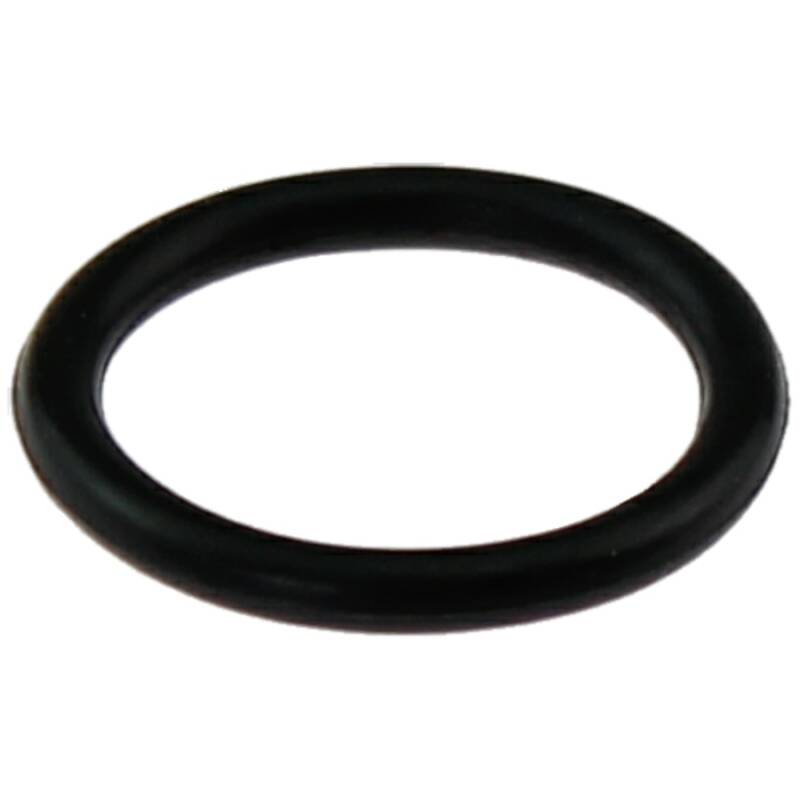

EPDM gasket for press fittings, M-profile

0,24 €

including 19% VAT., plus shipping

Item number: IP0831

How to measure a threaded fitting

Wichtiger Hinweis

Ersatzteil - keine Rücknahme, kein Widerruf

Item no.	Variation	Quality	Price	Quantity
IP0831.000.015	für Pressfittings 15mm	EPDM	0,24 €^*	pc.:
IP0831.000.018	für Pressfittings 18mm	EPDM	0,29 €^*	pc.:
IP0831.000.022	für Pressfittings 22mm	EPDM	0,31 €^*	pc.:
IP0831.000.028	für Pressfittings 28mm	EPDM	0,31 €^*	pc.:
IP0831.000.035	für Pressfittings 35mm	EPDM	0,46 €^*	pc.:
IP0831.000.042	für Pressfittings 42mm	EPDM	0,54 €^*	pc.:
IP0831.000.054	für Pressfittings 54mm	EPDM	0,77 €^*	pc.:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

Edelstahl V4A Pressfitting M-Kontur Dichtring EDPM

Material:

EDPM

Temperatur:

-20°C bis 120°C

Arbeitsdruck ():

max. 16 bar bei 100°C

Farbe:

Schwarz

kein Schweissen, Löten, Klemmverschrauben oder Kleben
das Pressverfahren ermöglicht schnell und kalt eine unlösbare, zugfeste Rohrverbindung
für die Installation von Brauchwasser, Trinkwasser, Löschwasseranlagen, Druckluft, Schiffbau, Landwirtschaft und Industrieanwendungen

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
