Description

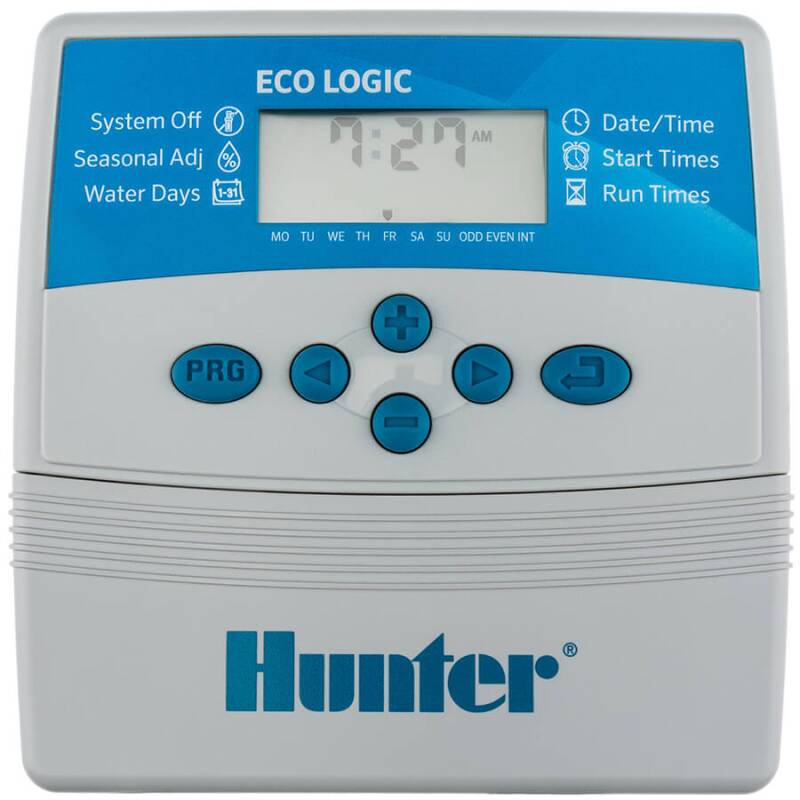

Irrigation controller, irrigation computer Hunter ECO LOGIC Indoor
Eco Logic enables efficient water use for small gardens and green spaces.
Eco Logic allows easy programming at the touch of a button - Hunter Quick Check - for two independent programs with 4 start times each, a 365-day calendar, seasonal adjustment (10 to 150%), weather sensor compatibility and permanent memory.
Eco Logic is available as a 4 and 6 station model, both with all the features required to maximize the efficiency of a system.
In terms of simplicity, reliability and economy, the Hunter Eco Logic is unbeatable.
- Number of stations: 4 (Eco Logic 401i-E version) or 6 (Eco Logic 601i-E version)
- Type: fixed number of stations
- Housing: Indoor model
- Independent programs: 2 (adjustable)
- Start times per program: 4 (customizable)
- Max. Running time of the stations: 4 hours
- Compatible with Hunter Clik sensors and other potential-free weather sensors
- Rain sensor bypass
- Programmable rain delay: 1 to 7 days
- Manual start of a single station
- Quick system check with test program
- Quick Check
- Easy Retrieve? Permanent memory
- Automatic short-circuit protection
- Seasonal adjustment (global or automatic update with Solar Sync®): 10% to 150%
- Delay between stations (maximum): 4 hours
- Customizable programs allow the control unit to be reduced to a single program
- Scope of delivery: Irrigation computer for indoor installation including power supply unit
Electrical specifications:
- Transformer input: 230/240 VAC 50/60 Hz
- Transformer output (24 VAC): 0.625 A
- Station output (24 VAC): 0.56 A
- P/MV output (24 VAC): 0.56 A
Plastic housing interior model:
- Height 12.6cm - Width 12.6cm - Depth 3.2cm
DOWNLOAD Eco-Logic operating instructions
