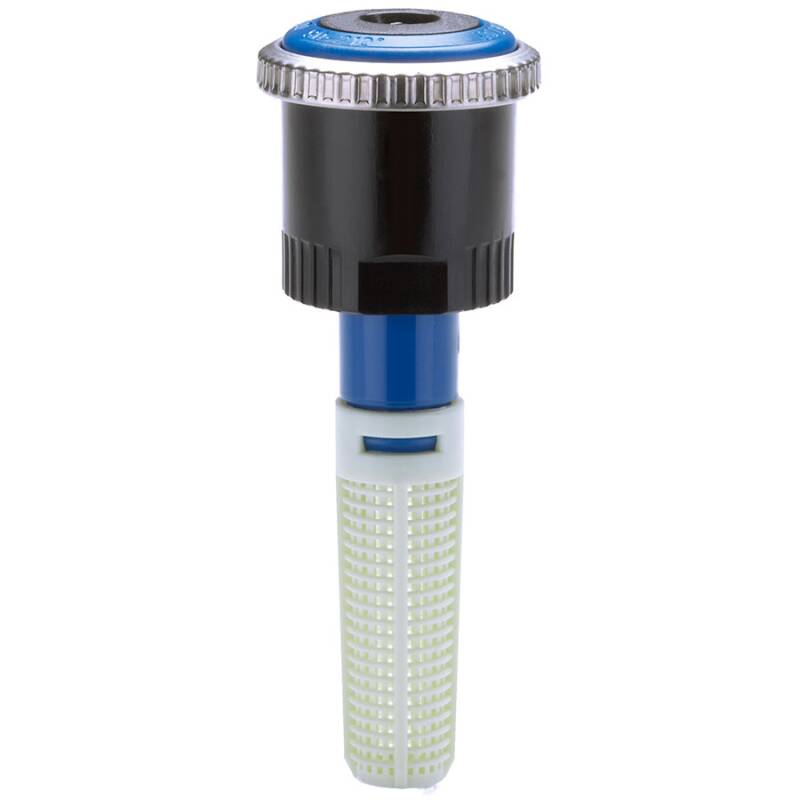

Hunter MP Rotator nozzle

from
0,58 €
incl. 19% VAT , plus shipping costs
  • Available immediately
Die Düse ist kompatibel für alle Hunter oder Rainbird Versenkregner z.B. Typ 1800
  • Available immediately
   Variants

Product picture
Item no.
Variation
Radius
Colour code
Casting distance
Price
Quantity
Hunter MP Rotator nozzle
BW5008.100.090
MP1000
90° - 210°
Kastanienbraun
2,4 - 4,6m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.100.210
MP1000
210° - 270°
Hellblau
2,4 - 4,6m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.100.360
MP1000
360°
Olivgrün
2,4 - 4,6m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.200.090
MP2000
90° - 210°
Schwarz
4 - 6,4m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.200.210
MP2000
210° - 270°
Grün
4 - 6,4m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.200.360
MP2000
360°
Rot
4 - 6,4m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.300.090
MP3000
90° - 210°
Blau
6,7 - 9,1m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.300.210
MP3000
210° - 270°
Gelb
6,7 - 9,1m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.300.360
MP3000
360°
Grau
6,7 - 9,1m
14,34 €*
pc.:

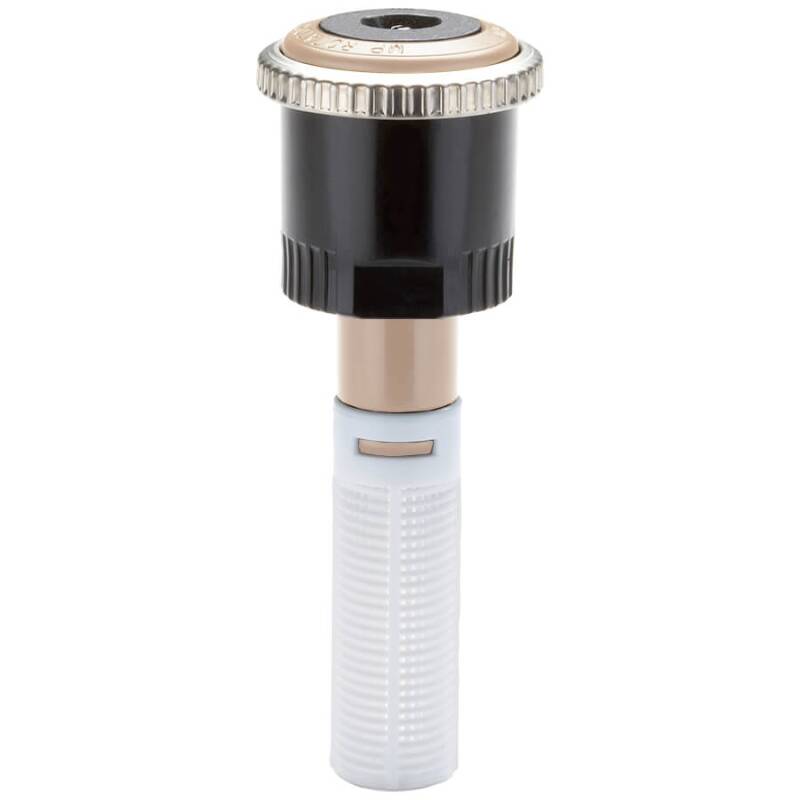

Hunter MP Rotator nozzle MP3500 90° - 210° (area 9,4 - 10,7m)
BW5008.350.090
MP3500
90° - 210°
Hellbraun
9,4 bis 10,7m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.MPC.000
MPC (Corner)
---
Türkis
2,4 - 4,5m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.MPL.S00
MPLS (Left Strip)
---
Elfenbein
1,5 - 4,5m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.MPR.S00
MPRS (Right Strip)
---
Kupfer
1,5 - 4,5m
14,34 €*
pc.:
Hunter MP Rotator nozzle
BW5008.MPS.S00
MPSS (Side Strip)
---
Braun
1,5 - 9,1m
14,34 €*
pc.:
Hunter MP Rotator tool
BW5008.MPR.TOL
MPR Tool
---
---
---
1,90 €*
pc.:
Hunter MP Rotator nozzle MPSTICK tool kit
BW5008.MPS.TIC
MP Stick Tool Kit für 32mm PVC Rohr in Verbindung mit Isolierband
---
---
---
4,64 €*
pc.:
Hunter MP Rotator Filter fine
BW5008.FIL.FIN
Ersatzfilter MP Rotator fein - MP800SR360, MP815, MP1000, MP2000, MPStrips, MPCorner
---
---
---
0,58 €*
pc.:
Hunter MP Rotator Filter coarse
BW5008.FIL.GRB
Ersatzfilter MP Rotator Filter grob - MP3000, MP3500
---
---
---
0,58 €*
pc.:

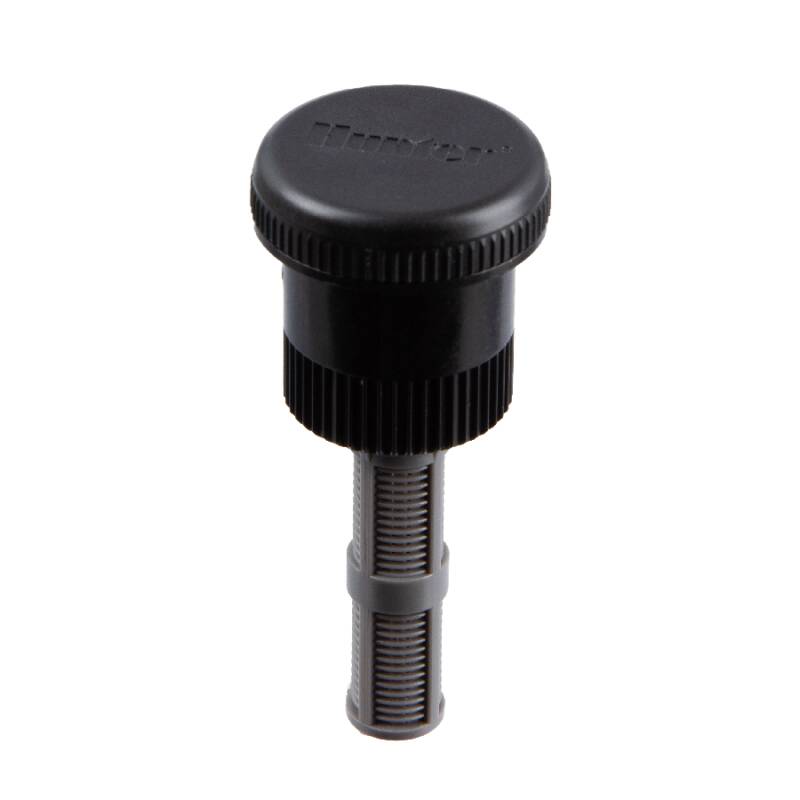

Hunter shut-off nozzle
BW5008.VSR.ASD
Hunter Absperrdüse
---
---
---
2,69 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Hunter MP Rotator rotating jet fogger

Multiple rotating jets use less water and ensure healthier growth

The revolutionary MP Rotator features a unique multi-jet rotation system that reduces water consumption. Instead of simply spraying the landscape with water, the MP Rotator distributes the water slowly and evenly through multiple rotating water jets. This slower precipitation rate allows the water to gently seep into the soil and achieve an even distribution throughout the irrigation area. This increased efficiency results in 30% less water consumption compared to traditional spray nozzles and avoids wasting water through unused surface runoff. The MP Rotator can be fitted to any conventional spray nozzle housing or standpipe sprinkler, transforming them into sprinklers with highly uniform water distribution, low precipitation rates and precise irrigation at any sector or throw setting.

With its immense range flexibility (2.5 m to 10.7 m throw), the MP Rotator is ideal for new systems, reduces material costs and offers improved system efficiency. It is also suitable for revitalizing older systems: Retrofitting can solve low-pressure problems as well as improve coverage in previously underserved areas.


Features

  • Precise irrigation with any setting of pitch circle and throw range
  • Throw range can be reduced by up to 25 % on all models
  • Color-coded for easy identification
  • Double riser ensures that no dirt or particles enter the nozzle
  • Removable filter screen prevents large particles from clogging the nozzle
  • Low precipitation rate
  • Wind-resistant multiple jet technology
  • Convenient and precise adjustment of sector and throw range
BR0012 Anwendung

Simple application and handling


The MP Rotator is flexibly adjustable and can be installed in next to no time.



DOWNLOAD Operating instructions
BR0012 Anwendung

MP STICK TOOL KIT


With the help of a 32mm PVC pipe e.g. 1 meter long and a few coils of insulating tape at each end, the two adjustment tools of the MP STICK TOOL KIT can be attached. This makes it easier, especially if you have a lot of MP rotor nozzles to adjust. Everything can now be done comfortably while standing and you do not have to squat down again for each adjustment step. During operation of the irrigation system, the yellow adjustment tool can be used to adjust the radius of the nozzle and the orange tool can be used to adjust the throw distance. The tool kit is supplied in 3 individual parts. The first step is to insert the orange-colored wrench into the orange-colored sleeve with the tip of the wrench facing forward. Then simply attach it to the two ends wrapped in insulating tape and you're done.

AUTOMATICALLY REGULATED UNIFORM PRECIPITATION RATE

With its immense range flexibility (2.5 m to 10.7 m throw), the MP Rotator is ideal for new systems, reduces material costs and offers improved system efficiency. It is also suitable for revitalizing older systems: Retrofitting can both solve low-pressure problems and improve coverage in previously underserved areas.


DUAL RISER

The MP Rotator is equipped with its own protection mechanism, which ensures that the nozzle is free of dirt outside of operating hours. The spring-loaded nozzle is stronger than the double riser's spring, which holds it in the retracted position when the system is activated. Once the watering cycle is complete, the nozzle is retracted again to remain protected until the next cycle.


DOWNLOAD Detailed performance data
DOWNLOAD MP Rotator Planning Guide

BR0012 Anwendung
BR0012 Anwendung
BR0012 Anwendung
