Description

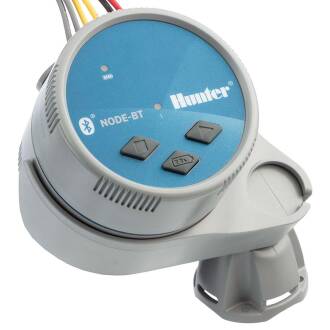

Hunter NODE BT control unit
Battery-powered control unit for sites without electrical supply
The NODE-BT controller features powerful Bluetooth® wireless technology that can be easily managed from a smartphone. The waterproof NODE-BT is the perfect choice for gardens, parks, medians, traffic circles, greenhouses or other outdoor applications where AC power is not available.
The NODE-BT is controlled by a multilingual smartphone app. The app displays the control units by location and sends reminders to change the battery. The control units can also be configured offline, allowing field settings to be made quickly and easily at a later date. The runtime flexibility is perfect for seed germination or other agricultural applications.
Best of all, the NODE-BT now makes battery-powered irrigation even more practical and convenient. The control unit can be mounted in five different ways, offering practical installation flexibility. Thanks to complete control via app, there is no longer any need to open dirty valve boxes or program schedules on a dark screen. Professionals can also activate irrigation and check the battery status directly on the controller at the touch of a button, significantly speeding up the maintenance process.
Important:
-Control unit is supplied without solenoid coil
-Return/recall only in complete original packaging - the original packaging is part of the item.
Facts & advantages
- Only for direct current DC solenoid coils (e.g.P/N 458200) suitable
- One or two 9V alkaline batteries or solar panel SPNODEBT (not included)
- 30 m maximum cable length with 1 mm² wire
- Station output: 9-11 VDC
- P/MV output: 9-11 VDC
- Type: Fixed number of stations 1, 2 or 4
- Housing: Outdoor model (IP68)
- Independent programs: 3
- Start times per program: 8
- Max. Running time of the stations: 12 hours
- Watering interruption up to 99 days out of season
- To increase efficiency, the NODE-BT is compatible with simple wired Hunter Clik sensors
- Sensor input: 2
Hunter NODE BT in use
Operate an irrigation controller easily and conveniently without a direct power supply or in remote locations.
