Description

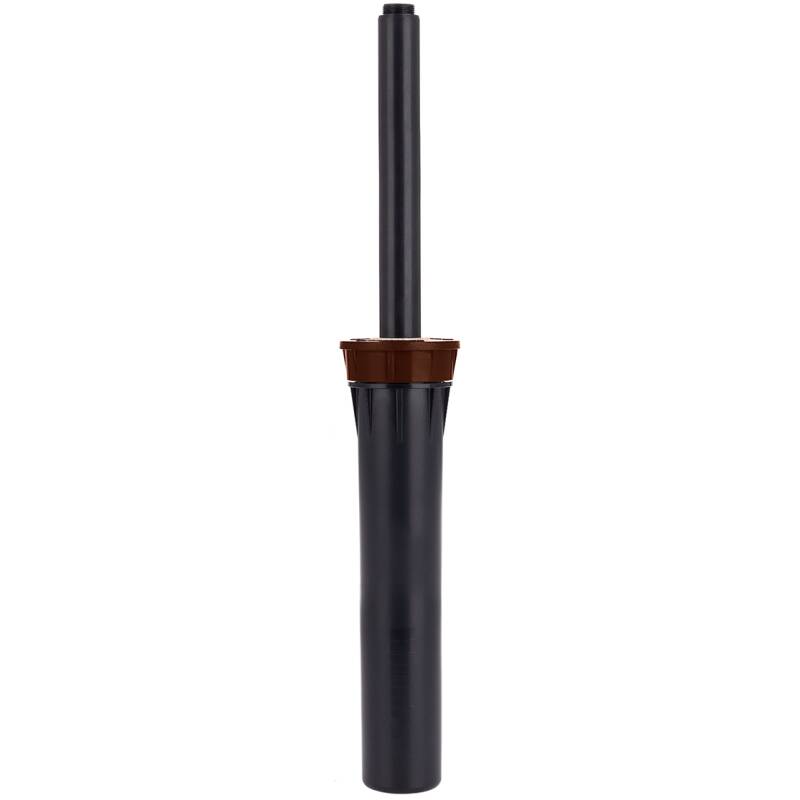

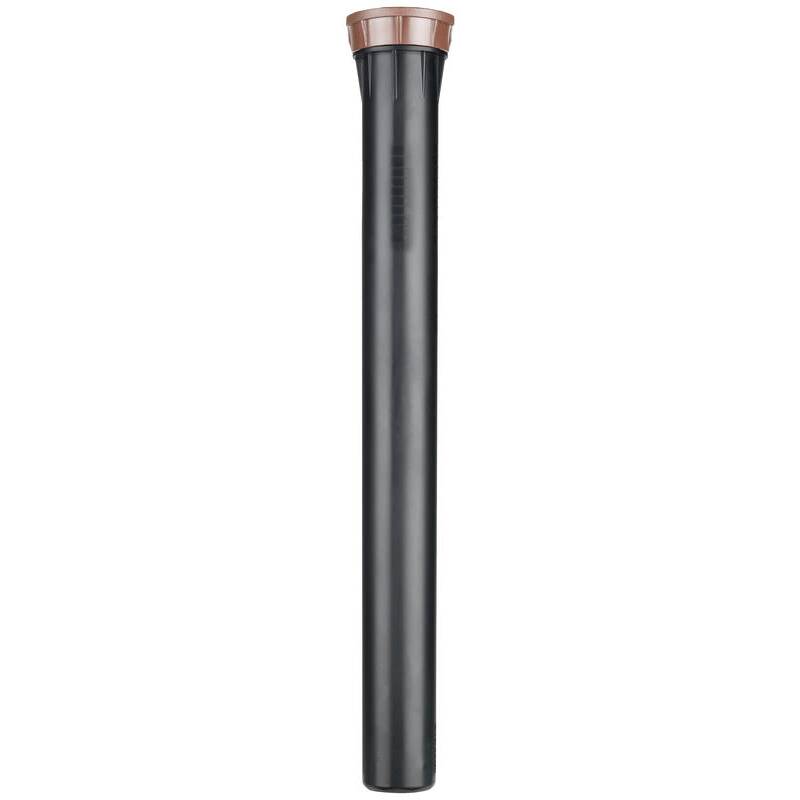

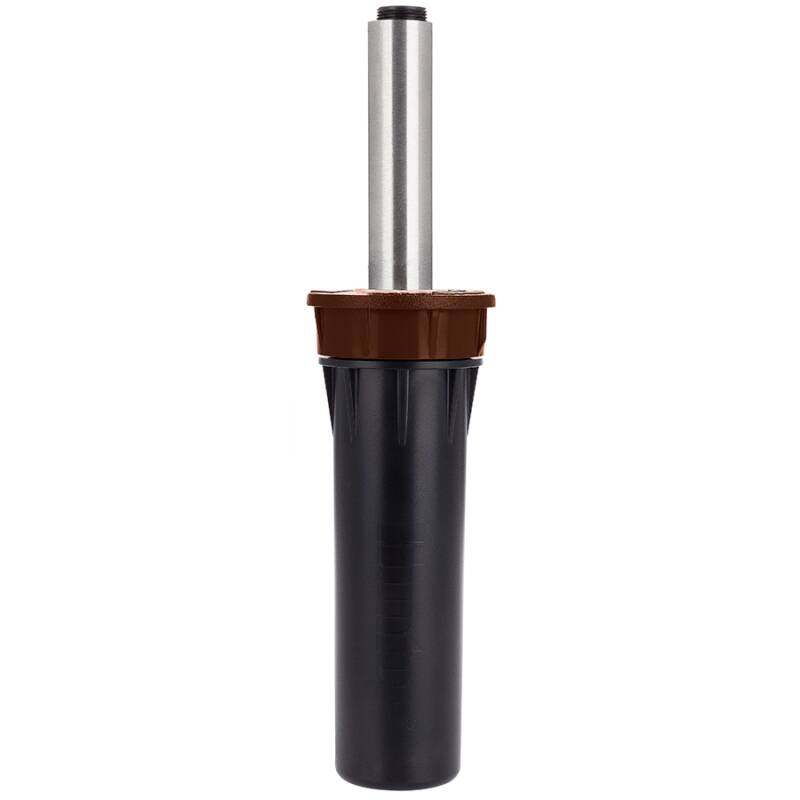

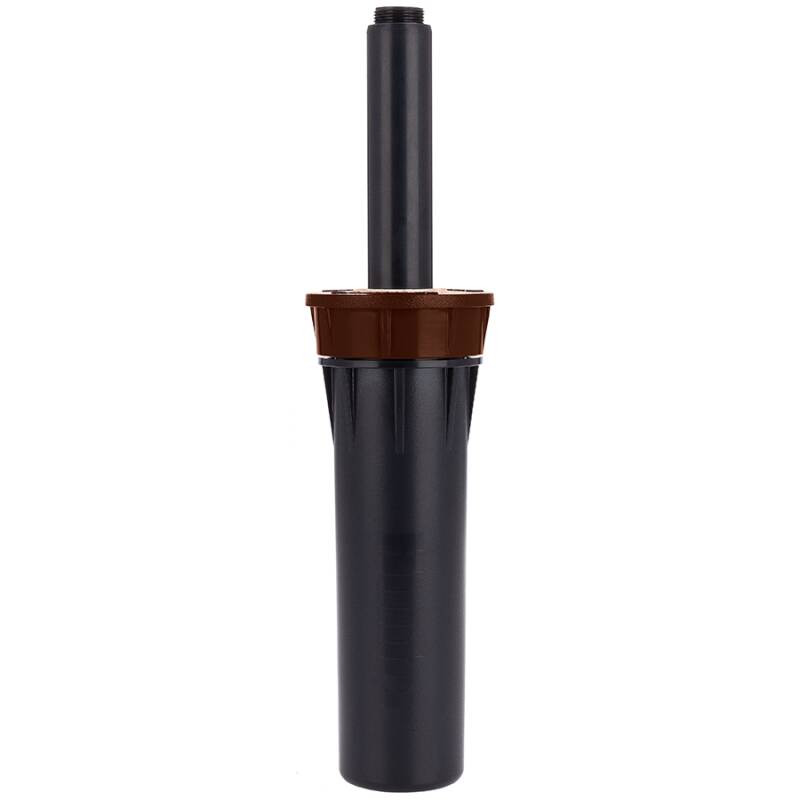

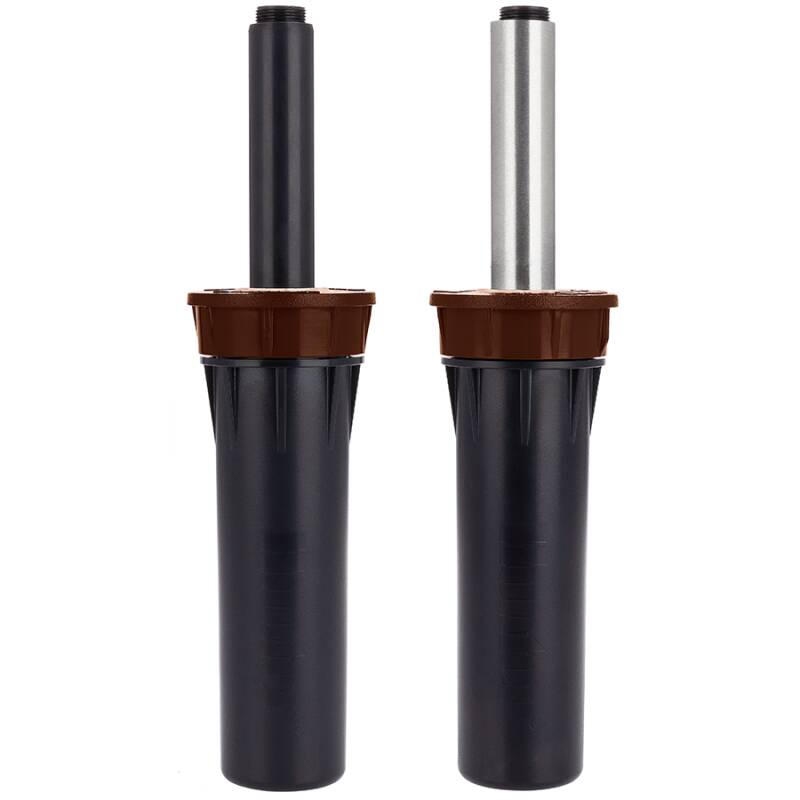

Hunter Pro-Spray PRS pop-up sprinkler
The Hunter Pro-Spray PRS pop-up sprinkler is suitable for adjustable nozzles, a fixed angle or an MP rotator. The adapter for the standpipe (supplied without nozzles) can be used to mount all nozzles with an internal thread of all common brands.
- Pressure regulated to 2.1 bar

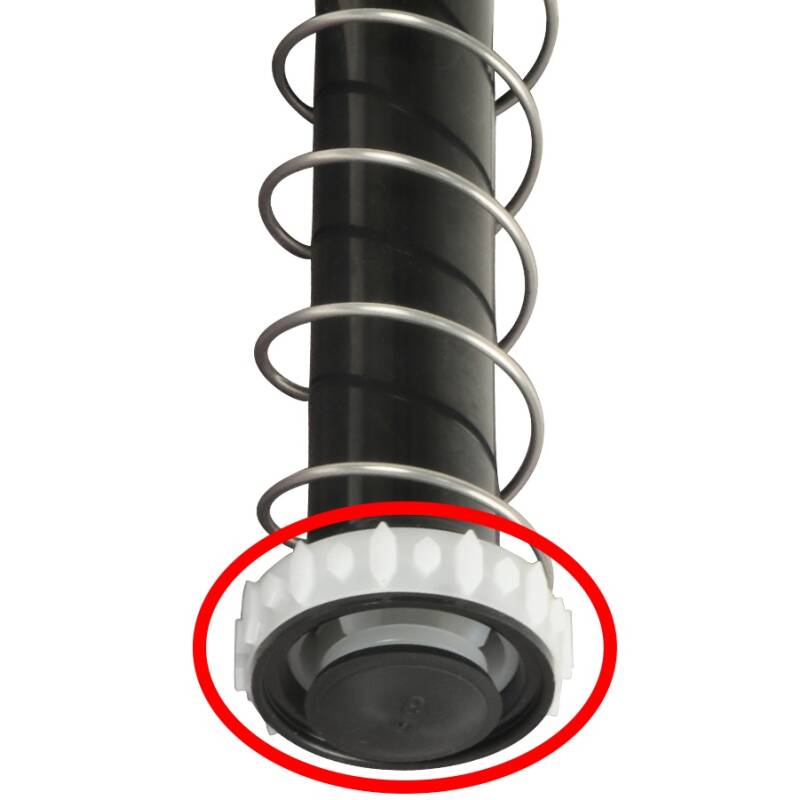

The optional non-return valve prevents leaks around the lower nozzles up to a height difference of 2.1 meters.
Leak-free wiper seal
This pressure-activated, multifunctional wiper seal was developed to reduce water loss. The design of the wiper seal protects the riser during operation and prevents the ingress of dirt particles when retracted, making it less likely that the riser will get stuck.

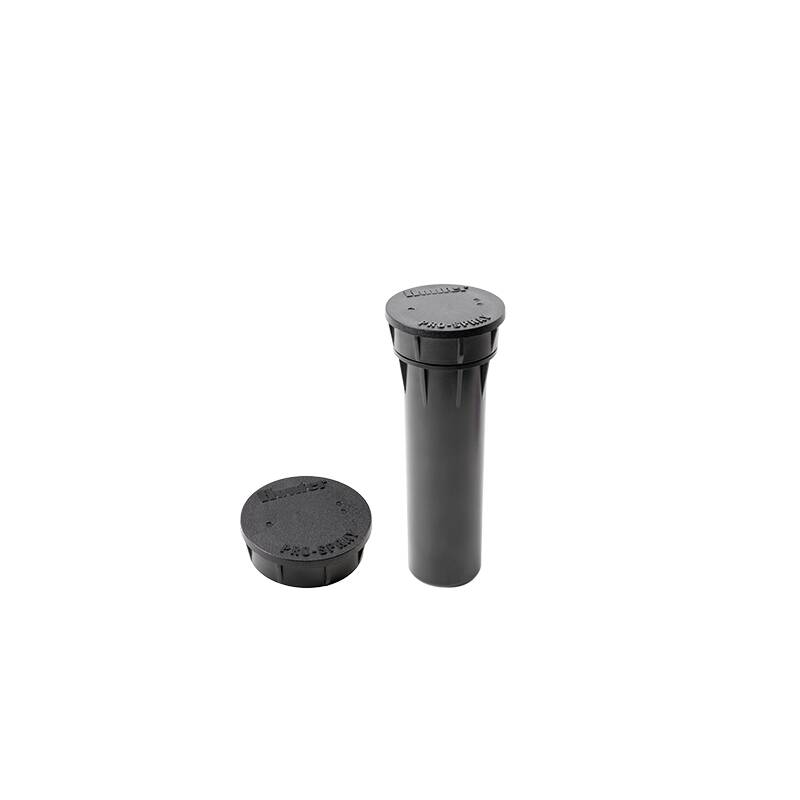

Leak-free housing cap at high pressure
The Pro-Spray line includes a rib-reinforced housing for heavy-duty use and a robust cover cap that can withstand extremely harsh environmental conditions, such as heavy foot traffic or improper operation of heavier machinery. In addition, the multi-threaded support structure ensures high strength in the clamping mechanism between the cap and housing, so that the sprinkler can withstand high overpressure at the inlet.
Spring for heavy-duty use
The extremely strong return spring ensures trouble-free retraction under all conditions.
Innovative seal design
Temperature differences and fluctuating pressures are often the cause of a loose housing cap. In most spray nozzle housings, O-rings are used for sealing, but these become leaky after even a slight loosening of the housing cap. The Pro-Spry housing cap can be opened up to 360° without the sprinkler leaking, regardless of the pressure.
DOWNLOAD Hunter Pro-Spray PRS30 operating data cutsheet
READ MORE Hunter PRS30 all facts & figures
DOWNLOAD the thread identification - or why 1" is not 25.4mm
