Hunter Rain-Clik wireless rain sensor

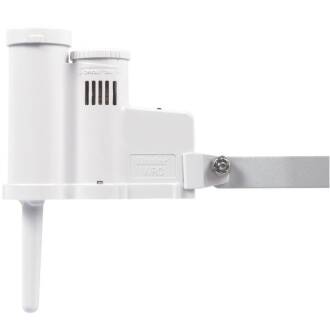

Hunter Wireless ^Rain-ClikTM rain sensor

The Wireless ^Rain-ClikTM functions as a switch that interrupts the power supply to the solenoid valves of the irrigation system when it rains. This allows the control valve to continue running as set while the valves do not allow water to flow.
Once the Wireless ^Rain-ClikTM has dried sufficiently, the switch closes, allowing normal operation to resume.

Most rain sensors must collect a certain amount of precipitation before a switch is activated, which interrupts the irrigation process at the control valve and shuts off the system. Until this point, the system continues to use water unnecessarily. This is especially problematic for environmentally conscious municipal, commercial and residential users. The Hunter ^Rain-ClikTM and Wireless ^Rain-ClikTM with integrated Quick-Response technology can initiate a switching process immediately after the onset of precipitation.

Features:

• Immediate shutdown of the system by the Quick Response function when rain sets in
• Maintenance-free design with ten-year battery life for Wireless ^Rain-ClikTM
• Adjustable reset time via ventilation ring
• Sturdy polycarbonate housing and sturdy metal bracket
• Wireless model with up to 90m distance from wireless sensor to receiver
• Warranty period: 5 years
• Compatibility with most control units
• Scope of delivery: Wireless rain sensor with wall mounting, receiver unit

Operating data:

• Wiring: "normally open" or "normally closed"
• Switch-off time for sprinkler system: approx. 2 to 5 minutes with Quick Response
• Reset time with Quick Response: approx. 4 hours in dry, sunny conditions
• Reset time with full soaking: approx. 3 days in dry, sunny conditions
• Rated switch current: 24 VAC, 3 A
• Operating frequency: 433 MHz
• Receiver power supply: 24 VAC (from control unit)

^Rain-ClikTM:

• Height 6.4 cm - Length 20.0 cm

---
