Hunter Rain-Clik wireless rain sensor

117,54 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
Price
Quantity
BW4034.RAI.WIR
Rain Clik Wireless
126,07 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

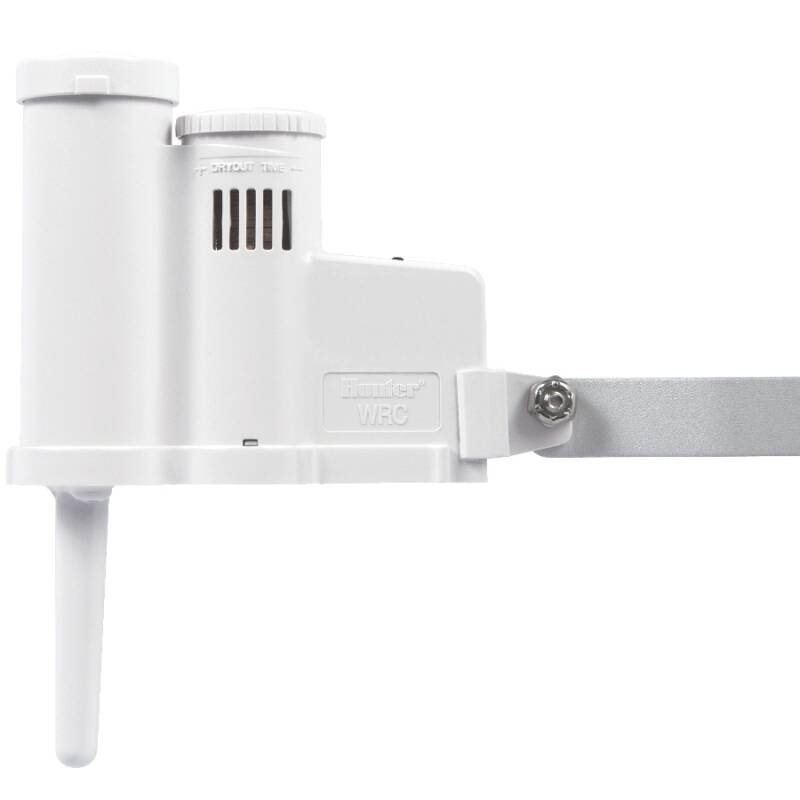

Hunter Wireless Rain-ClikTM rain sensor

The Wireless Rain-ClikTM functions as a switch that interrupts the power supply to the solenoid valves of the irrigation system when it rains. This allows the control valve to continue running as set while the valves do not allow water to flow.
Once the Wireless Rain-ClikTM has dried sufficiently, the switch closes, allowing normal operation to resume.


Most rain sensors must collect a certain amount of precipitation before a switch is activated, which interrupts the irrigation process at the control valve and shuts off the system. Until this point, the system continues to use water unnecessarily. This is especially problematic for environmentally conscious municipal, commercial and residential users. The Hunter Rain-ClikTM and Wireless Rain-ClikTM with integrated Quick-Response technology can initiate a switching process immediately after the onset of precipitation.


Features:

  • Immediate shutdown of the system by the Quick Response function when rain sets in
  • Maintenance-free design with ten-year battery life for Wireless Rain-ClikTM
  • Adjustable reset time via ventilation ring
  • Sturdy polycarbonate housing and sturdy metal bracket
  • Wireless model with up to 90m distance from wireless sensor to receiver
  • Warranty period: 5 years
  • Compatibility with most control units
  • Scope of delivery: Wireless rain sensor with wall mounting, receiver unit

Operating data:

  • Wiring: "normally open" or "normally closed"
  • Switch-off time for sprinkler system: approx. 2 to 5 minutes with Quick Response
  • Reset time with Quick Response: approx. 4 hours in dry, sunny conditions
  • Reset time with full soaking: approx. 3 days in dry, sunny conditions
  • Rated switch current: 24 VAC, 3 A
  • Operating frequency: 433 MHz
  • Receiver power supply: 24 VAC (from control unit)

Rain-ClikTM:

  • Height 6.4 cm - Length 20.0 cm


Delivery includes sensor and receiver

Delivery includes sensor and receiver. The sensor works wirelessly with a range of up to 100m

BR0202 Hunter Wireless Regensensor Rain-Clik


The sensor in use

Thanks to its slim, attractive design, the sensor harmonizes with its surroundings.

BR0202 Hunter Wireless Regensensor Rain-Clik


DOWNLOAD Installation Wireless Rain-ClikTM

© Image credit Hunter Industries
