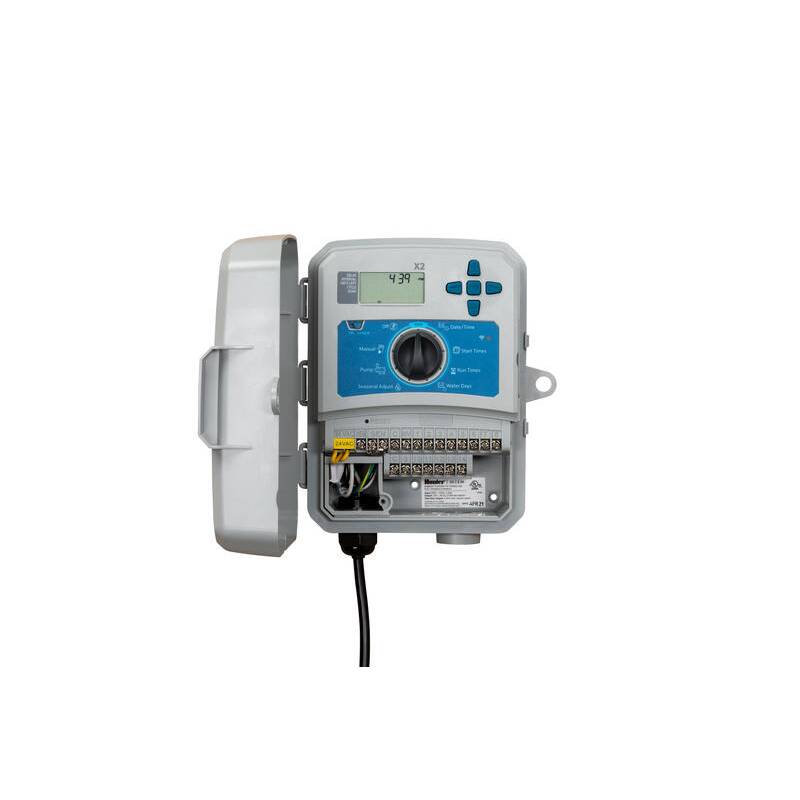

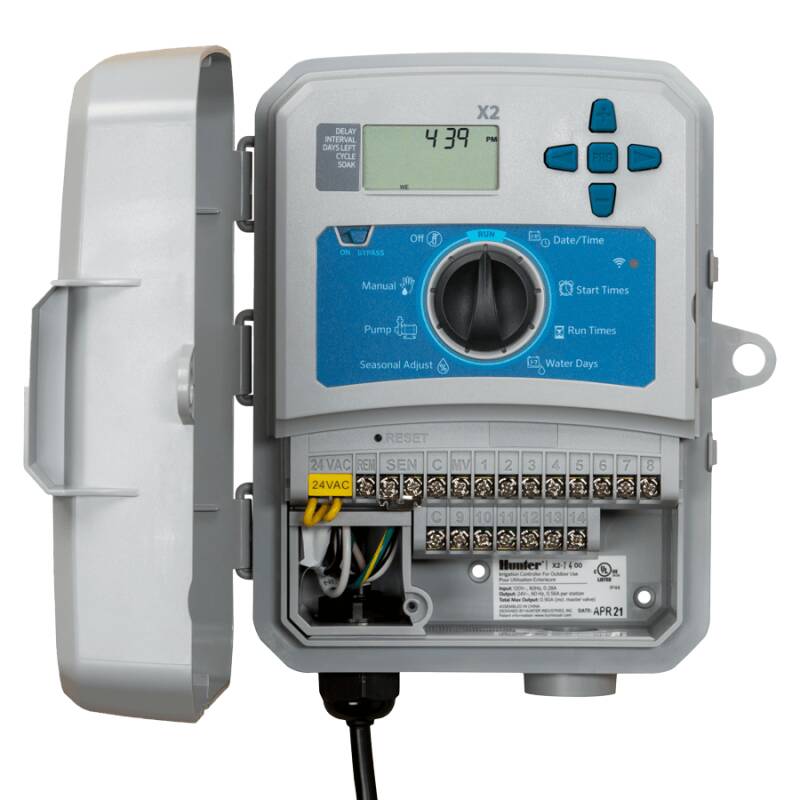

Hunter X2 Outdoor Irrigation Controller
The "intelligent" choice for home gardens.

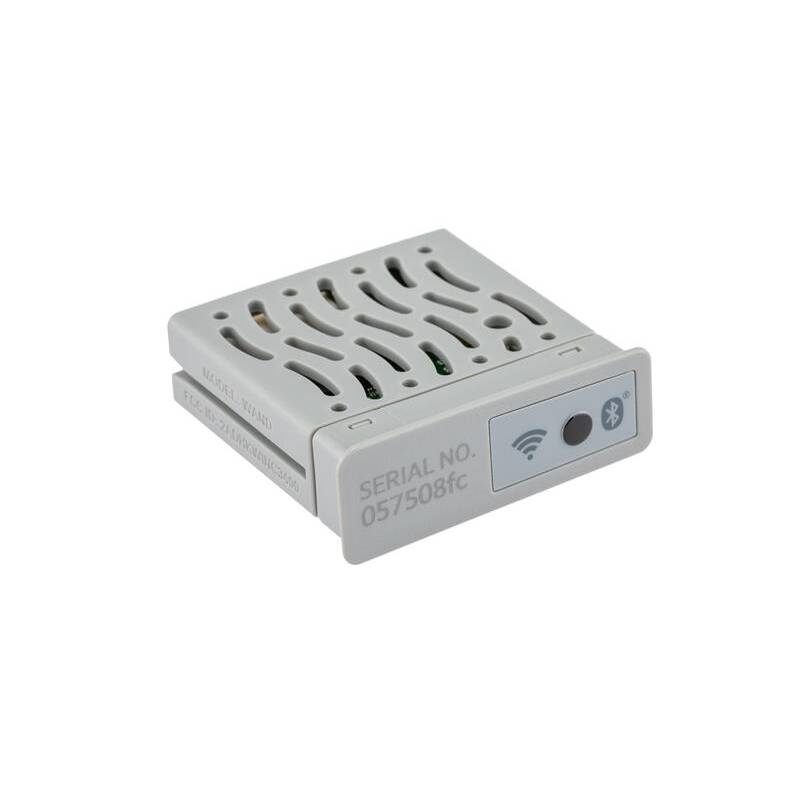

The X2 controller continues the legacy of the popular X-Core® with a similar range of reliable and highly efficient features. It brings irrigation management to the next generation by offering the option to add Wi-Fi for remote management and advanced water-saving features with Hunter's industry-leading Hydrawise® software. With the X2, you can maintain the familiar dial-based programming of the X-Core. If you upgrade the X2 with WAND, programming becomes familiar, quick, and easy with a setup wizard via a smartphone or desktop device.
Hydrawise maximizes water savings by automatically adjusting irrigation schedules based on local weather data from the internet. The X2 ensures healthy, green landscapes and makes site management for routine installations more convenient and profitable. You can quickly create irrigation schedules and manage an unlimited number of controllers, with the controller's status updated in real-time.
The X2 device is compatible with Amazon Alexa, Control4®, and HomeSeer.
- Number of stations: 4, 6, 8, or 14 depending on the model
- Type: Fixed number of stations
- Housing: Outdoor model
- Independent programs: 3
- Start times per program: 4 (6 with the WAND expansion module)
- Max. station runtime: 6 hours
- Easy Retrieve memory
- Programmable rain delay
- Quick Check
- Permanent memory
- Automatic short-circuit protection
- Delay between stations programmable
- Sensor programmability
Electrical Specifications:
- Transformer input: 230/240 VAC 50/60 Hz
- Transformer output (24 VAC): 1 A
- Station output (24 VAC): 0.56 A
- P/MV output (24 VAC): 0.28 A
- Sensor input: 1
- Operating temperature: -18°C to 66°C
Plastic housing indoor model:
- Height: 22.0 cm - Width: 17.5 cm - Depth: 9.5 cm
Important: Image representation includes connection cable for power supply - this is not included.
Easy RetrieveTM Memory
A utility for manual backup that stores the complete schedule of a controller and its configuration information in a backup memory. The saved irrigation schedule can be restored at any time. This allows a controller to be reset to its default settings after a change or at the beginning of a new season.
Programmable Rain Delay
A custom period in days during which the controller remains off and then automatically resumes irrigation. This prevents watering during extended periods of unfavorable weather and automatically resumes without the need to manually visit the controller. The controller will display the number of remaining days until irrigation resumes.
Quick CheckTM
The Quick Check function performs a quick diagnostic of wiring problems with field valves, evaluated at the push of a button. Quick Check will display the station number and ERR if a short circuit is detected in the field wiring of a particular station number.
Permanent Memory
This feature provides protection against power fluctuations by storing the current time, date, and program data.
Automatic Short-Circuit Protection
The automatic short-circuit protection is a feature found in all Hunter controllers with AC power supply. This function automatically detects electrical disturbances, usually caused by faulty wiring. Stations with a short circuit are bypassed so that the irrigation of stations without disturbances can continue. There are no fuses to blow or circuit breakers to trip that would shut down the irrigation system completely.
Seasonal Adjustment: Global or Automatic Update with Solar Sync
This feature allows for quick adjustment of watering times over a percentage scale. In the main season, the seasonal adjustment is set to 100%. When weather conditions require less water, the appropriate percentage (e.g., 50%) can be entered to shorten watering times without having to reset each station of a program individually. Hunter offers two options for utilizing seasonal adjustment with the Pro-C to reduce water consumption:
Global: The seasonal adjustment value is transmitted to all programs in the controller.
Daily (Solar Sync ET Sensors): Complements the automatic daily adjustment of watering run times, based on the weather conditions measured on-site.
Delay Between Stations
Users can program a delay between stations while the controller transitions from station to station. Depending on user settings, the delay can be a few seconds (to allow slowly closing valves to shut off) or much longer (to allow pressure tanks to refill).
Sensor Programmability
The ability to specify exactly which programs should be turned off when a particular sensor alarm is triggered. This way, stations unaffected by the sensor can continue automatic operation.
