Hunter solenoid valve PGV 9 VDC

from
1,29 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
L
Reel
flow control
Thread
Price
Quantity

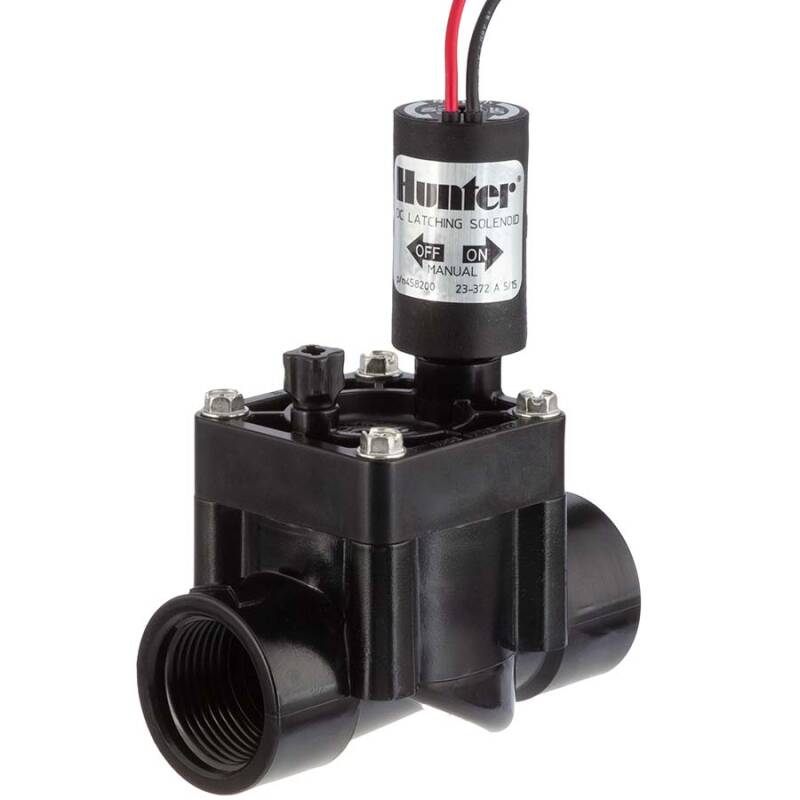

Hunter solenoid valve PGV 9 VDC 1" female thread
BW305D.100.I32
PGV-100-G-B 1" Innengewinde
112
9DC
NEIN
1" (33,25mm)
36,87 €*
pc.:

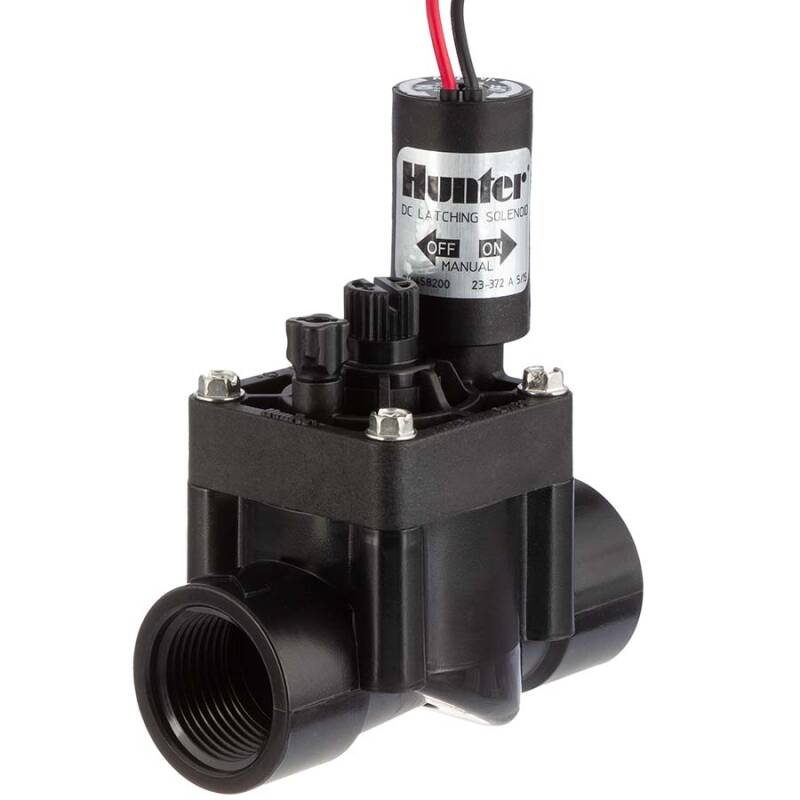

Hunter solenoid valve PGV 9 VDC 1" female thread with flow control
BW305D.101.I32
PGV-101-G-B 1" Innengewinde
112
9DC
JA
1" (33,25mm)
38,65 €*
pc.:

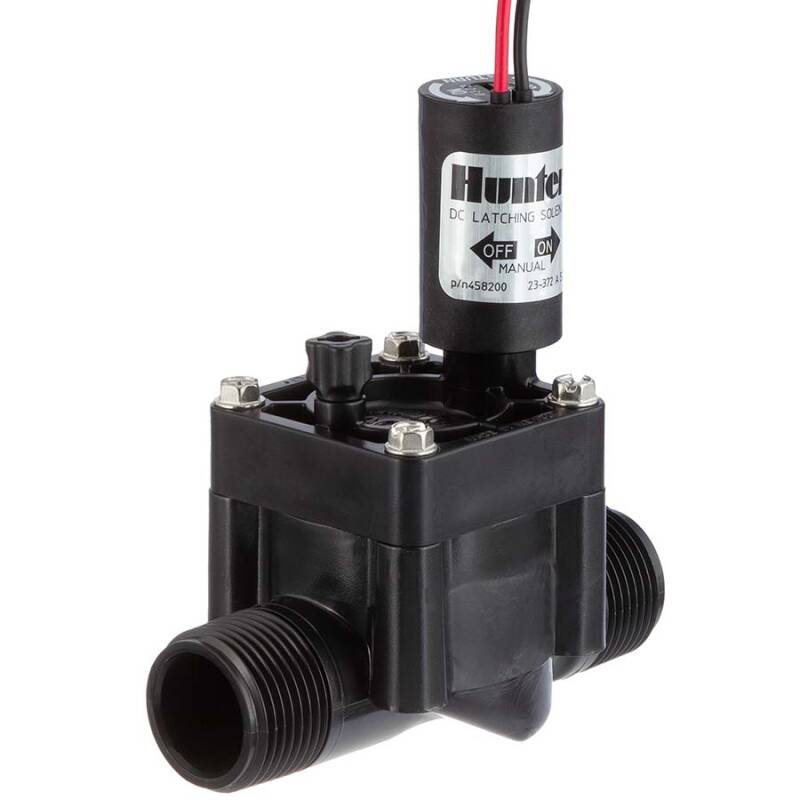

Hunter solenoid valve PGV 9 VDC 1" male thread
BW305D.100.A32
PGV-100-MM-B 1" Aussengewinde
120
9DC
NEIN
1" (33,25mm)
37,34 €*
pc.:

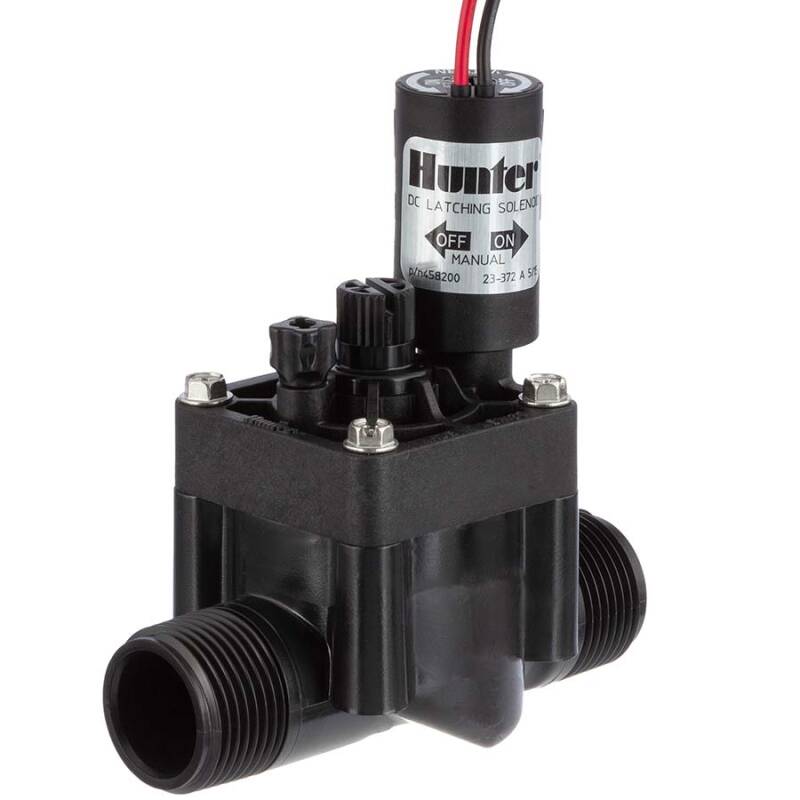

Hunter solenoid valve PGV 9 VDC 1" male thread with flow control
BW305D.101.A32
PGV-101-MM-B 1" Aussengewinde
120
9DC
JA
1" (33,25mm)
39,06 €*

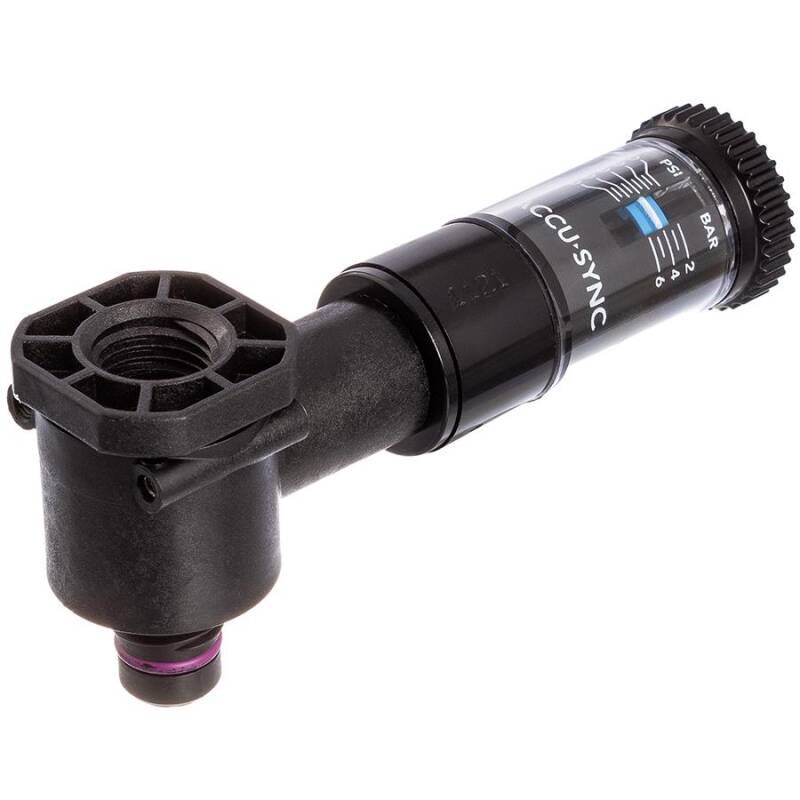

Hunter Accu Sync pressure regulator with adapter
BW305D.ACC.SYN
Druckregulator einstellbar von 2 bis 7 bar
114
---
---
---
63,27 €*
Hunter solenoid PGV 9 VDC
BW305D.D09.HNC
Magnetspule 9 DC P/N458200
---
---
---
---
24,22 €*
pc.:

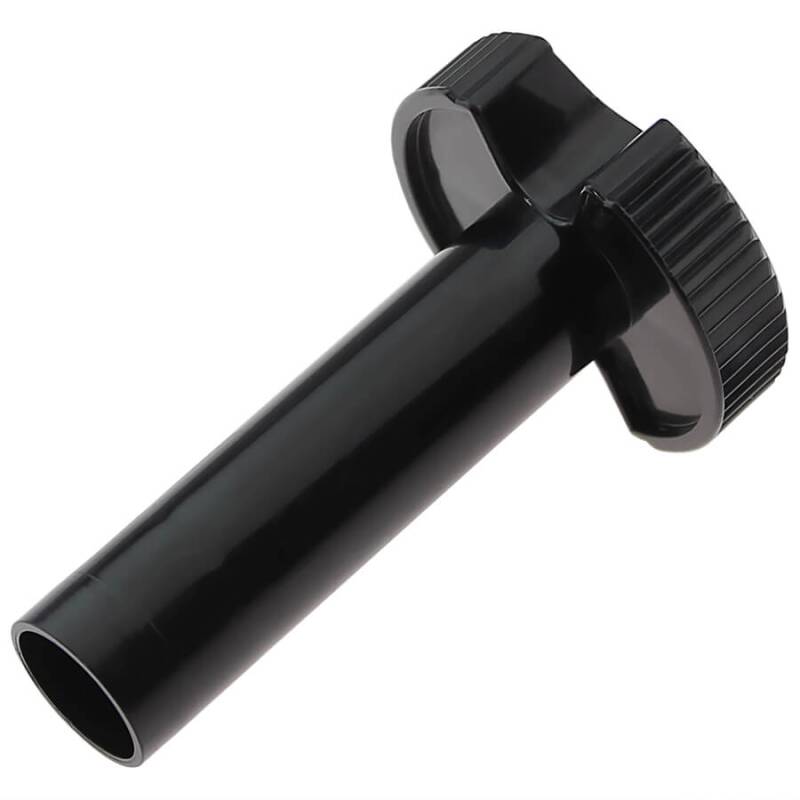

Hunter Valve PGV Key, FLOW CONTROL
BW305D.101.000
Einstellschlüssel
---
---
---
---
1,99 €*
pc.:

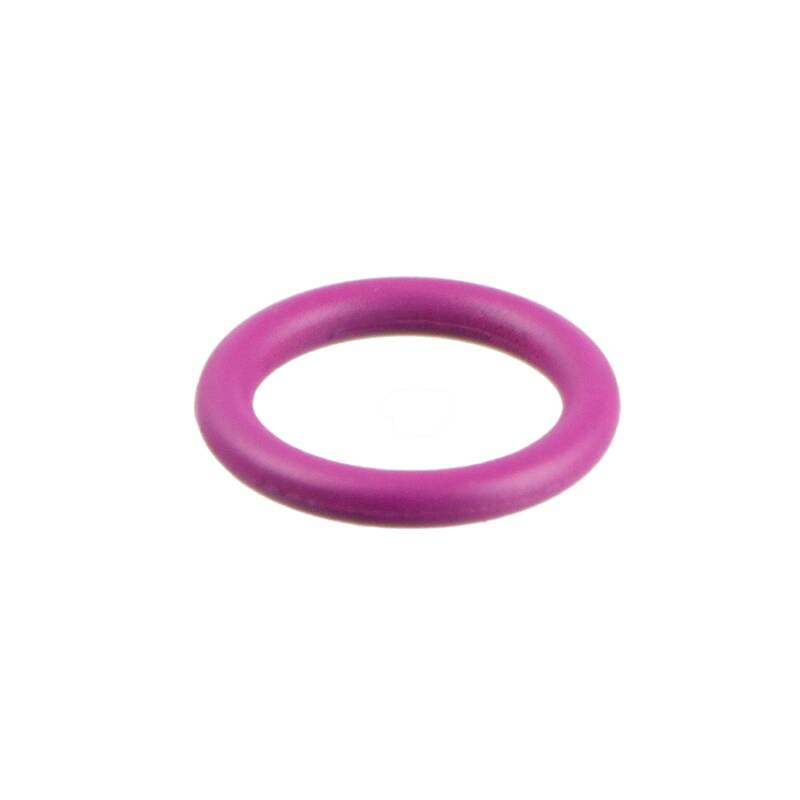

Hunter O-Ring solenoid
BW305D.000.999
Ersatzdichtung für Spule
---
---
---
---
1,29 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

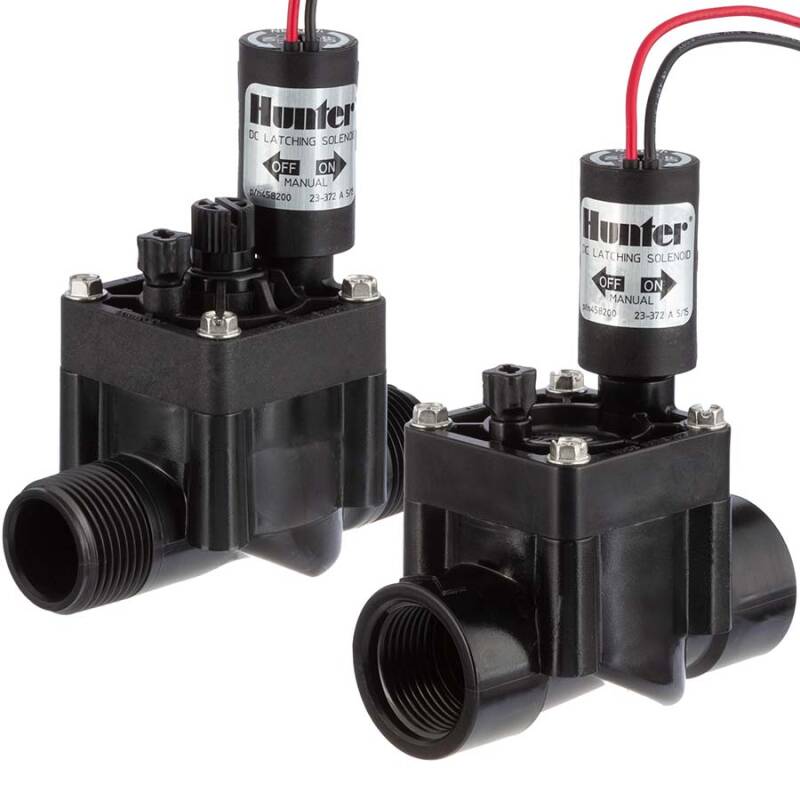

Hunter Solenoid Valve 9 DC

The durable Hunter PGV solenoid valve, with and without flow control, is equipped with the best features of Hunter's top valves and is designed to withstand the challenges of most private and smaller commercial green spaces. The 9 DC model is well-crafted and features a robust diaphragm that prevents operational failures under tough conditions. In our shop, you will find two versions of the Hunter PGV solenoid valves: the PGV-100 and the PGV-101. The PGV-101 version comes with flow control and differs from the PGV-100 version in this aspect.
With external thread as the PGV-100-MM-B version without flow control and the PGV-101-MM-B version with flow control.


Important: The solenoid valves are designed for controlling a pipeline in an irrigation system in connection with an irrigation controller. When using external power supplies, the voltage values must be observed.

A minimum inlet pressure of 1.4 bar is required.


Features of the Hunter Solenoid Valve

  • External and internal manual venting for quick and easy activation "at the valve"
  • Durable screwed protective cap for maximum strength
  • Construction with double diaphragm sealing for excellent leak-proofing
  • Effortless valve maintenance with secured valve cover screws
  • Low-flow capability, suitable for micro-irrigation as well
  • Encapsulated 9 DC solenoid coil with non-loosable plunger for easy service
  • Max. temperature: 60°C
  • Fail-safe closed

Technical Operating Data for the Hunter PGV Valve

  • Flow rate: 0.05 to 9m³/hour; 0.75 to 150l/min
  • Recommended pressure range: 1.5 to max. 10 Bar; 150 to 1000 kPa
  • Inlet pressure: 1.4 Bar

Application

Durable solenoid valves from Hunter are designed to withstand the demands and challenges of most private and smaller commercial green spaces. The models are mostly available with and without flow control. All models are made with high-quality craftsmanship and feature a robust diaphragm that prevents operational failures and withstands harsh conditions.



Accu Sync Pressure Regulator
Accu Sync Pressure Regulator/Pressure Reducer

Pressure regulation saves water and extends the lifespan of the irrigation system. Water savings are achieved through pressure regulation by operating each zone with the optimal pressure for the system equipment and application type. Accu Sync is a simple pressure regulator that is compatible with all Hunter control valves. With the adjustable model, the zone pressure can be set to any pressure between 1.5 and 7 Bar (150 to 700 kPa). In contrast, the fixed models provide transparency and can be easily installed in any system. In terms of reliability, the Accu Sync is unique. Its fiberglass-reinforced nylon construction makes it a pressure regulator robust enough to meet the demands of any project. Regardless of the selected model, all zones remain optimally adjusted with Accu Sync.

Operating Data

  • Pressure reduction to 1.5 to 7.0 Bar; 150 to 700 kPa
  • Static pressure: 10 Bar; 1000 kPa
  • Required dynamic pressure difference: 1.0 Bar; 100 kPa
  • Suitable for AC and DC solenoid valves
  • Works with all Hunter valves





DOWNLOAD Hunter Solenoid Valve PGV Installation
DOWNLOAD Hunter PGV and PGV JAR TOP Operating Data Cutsheet
DOWNLOAD The Thread Identification - or why 1" is not exactly 25.4mm
