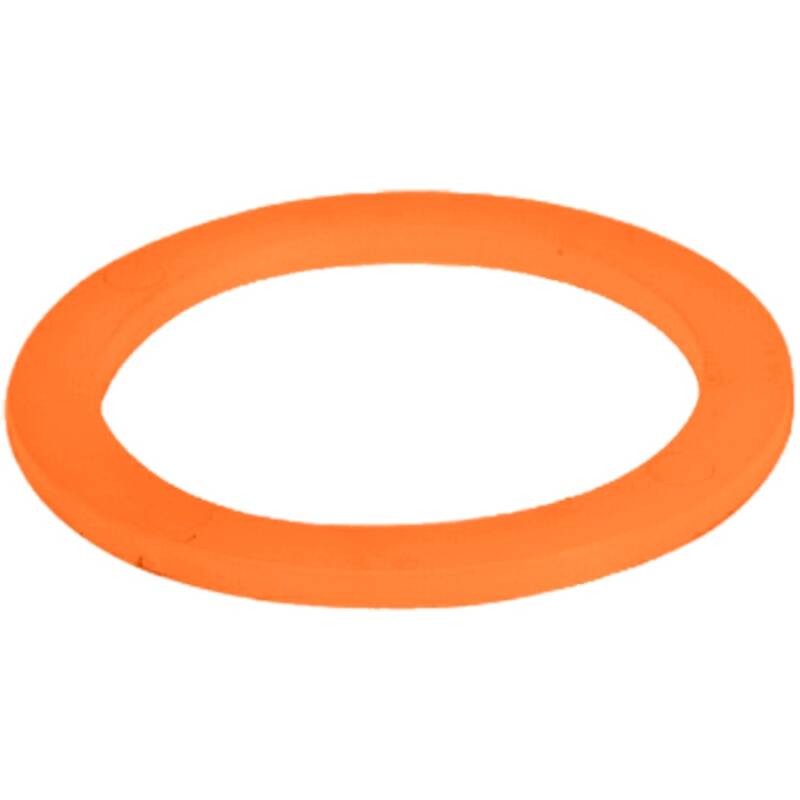

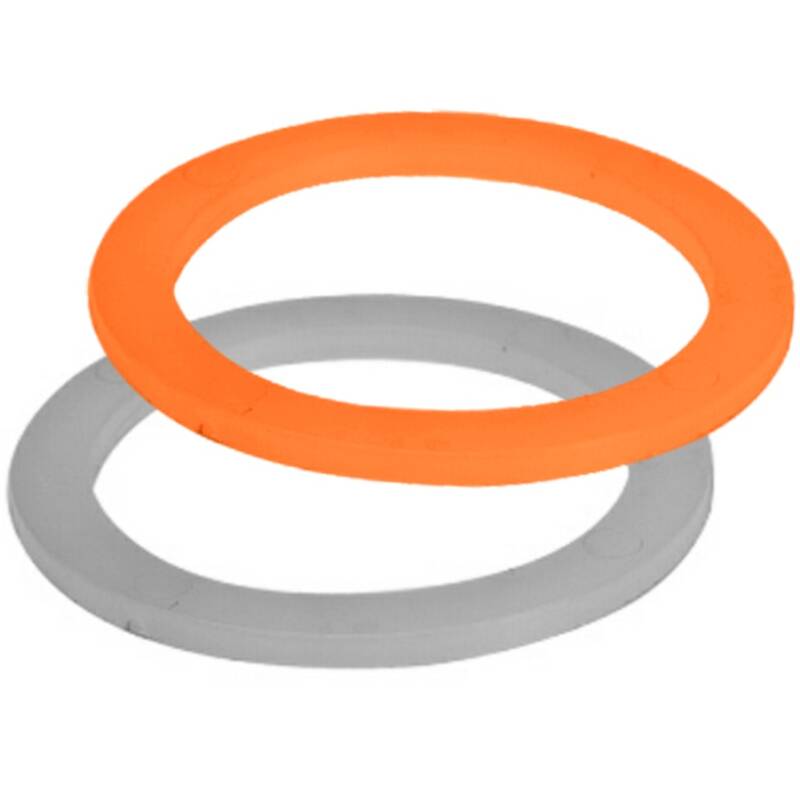

PE slip-ring gasket

from
0,23 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
D
d
S
Price
Quantity
PE slip-ring gasket
DI0007.000.020
für 1/2"
32
22
3
0,23 €*
pc.:
PE slip-ring gasket 3/4"
DI0007.000.025
für 3/4"
39
27
3
0,27 €*
pc.:

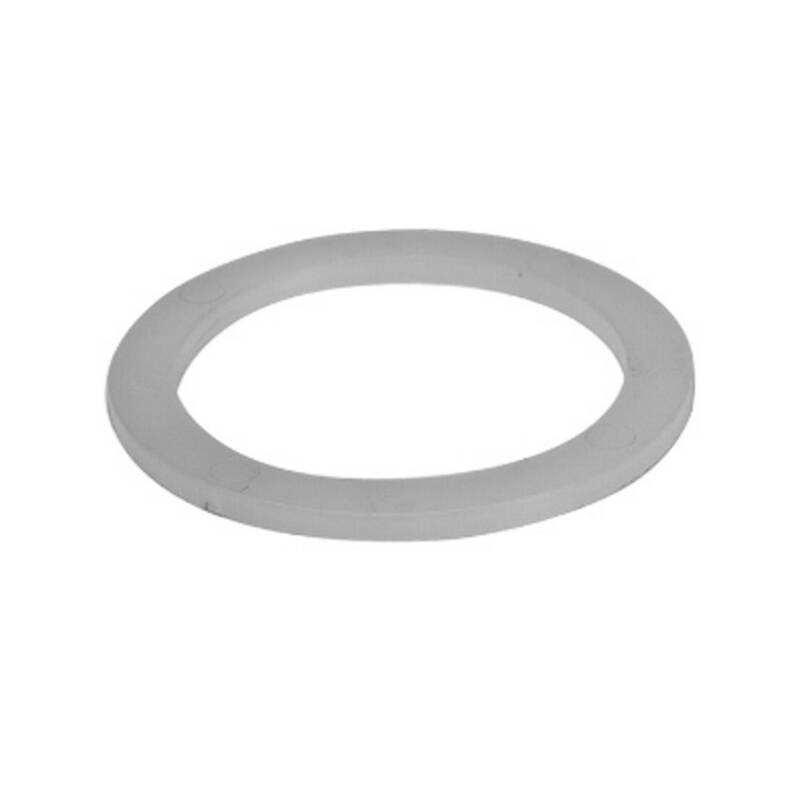

PE Gleitring für Durchführungen 3/4"
ED056
3/4"
40
27,5
3
0,27 €*
pc.:
PE slip-ring gasket
DI0007.000.032
für 1"
46
34
3
0,33 €*
pc.:
PE slip-ring gasket 1 1/4"
DI0007.000.040
für 1 1/4"
55
42,5
3
0,45 €*
pc.:
PE slide ring for feedthroughs 1 1/2"
DI0007.000.050
für 1 1/2"
65
48,5
4
0,61 €*
pc.:
PE slip-ring gasket
DI0007.000.055
für 1 3/4"
71
54
4
0,61 €*
pc.:
PE slip-ring gasket 2"
DI0007.000.063
für 2"
80
60,5
4
1,08 €*
pc.:
PE slip-ring gasket
DI0007.000.075
für 2 1/2"
92,5
76
4
1,13 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PE Gleitring für Tankdurchführung

HTC Tankdurchführung Hinweis PE Gleitring

PE Gleitring

Tankdurchführungen werden herstellerabhängig mit unterschiedlichen Dichtringen, Flachdichtungen etc. angeboten.
Tankdurchführungen von HTC Logosind mit einem PE Gleitring ausgestattet.
Der PE-Gleitring sorgt u.a. dafür, dass die Energie der Bewegung der Überwurfmutter beim Zudrehen gleichmäßig an die Tankwand o.ä. weitergegeben wird und Überwurfmutter beim zudrehen nicht an der Flachdichtung "klebt" und somit die Flachdichtung nicht durch die Drehbewegung negativ beeinflußt wird.
Ein nützliches Teil zur optimalen Verteilung der Drehkraft.



DOWNLOADRoHS Bestätigung HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
