Variants

Item no.
Variation
A
B
D max.
D min.
DN
L
L1
Weight
Price
Quantity
KL0500.032.013
3/4" x 13mm
34
32
14,5
12
8
75
43
18
0,49 €*
pc.:
KL0500.032.019
3/4" x 19mm
34
32
21
18,5
13,5
86
55
22
0,54 €*
pc.:
KL0500.037.025
1" x 25mm
41
37
26,5
25
23
97
58
39
0,65 €*
pc.:
KL0500.045.032
1 1/4" x 32mm
49
45
34
31
23
102
57
65
0,94 €*
pc.:
KL0500.053.032
1 1/2" x 32mm
58
53
34
31,5
22,5
110
61
86
0,94 €*
pc.:
KL0500.053.038
1 1/2" x 38mm
58
53
39,5
37,5
28
111,5
61
95
1,07 €*
pc.:
KL0500.063.050
2" x 50mm
70
63
53
50
41
127
69
143
2,09 €*
pc.:
KL0500.092.075
3" x 75mm
99
92
78
75
63
149
89
274
3,86 €*
pc.:
KL0500.119.100
4" x 100mm
129
119
101,5
97,5
84
185
117
619
7,51 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

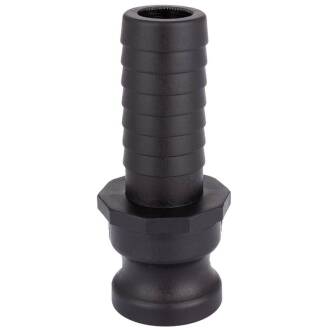

Kamlock PP faserverstärkt Typ E V-Teil Vaterteil mit Schlauchtülle

Die Kamlock Kupplungen, auch Hebelarmkupplung genannt, haben ihren Ursprung in den USA und sind sicherlich eine der meist verbreitesten Kupplungstypen weltweit. Grundlage war die Norm des amerikanischen Militärs.


Das Kamlock Schlauchkupplung Schnellkupplung Programm besticht durch sein einfaches Verschließsystem. Eine Familie, welche sich aus Vater- und Mutterteil logisch zusammensetzt und ergänzt und so universell in Landwirtschaft, Industrie und Privathaushalt bei ansprechenden Installationen Verwendung findet.


Die Auswahl der richtigen Komponenten ist ohne großes Fachwissen zu bewerkstelligen, da "Vater" und "Mutter" nur die identische Größe haben müssen - in unseren Angeboten muss immer das Maß B identisch sein. Anschlüsse mit Innen- oder Aussengewinde weisen das europäische BSP Rohrgewinde G auf und sind kompatibel zu allen Fittings mit diesem Zollgewinde (BSP G).


Typ E Stecker ist kombinierbar mit Typ B, C und D Kupplung sowie mit Abschlusskappe Typ DC.

Anschluss:
Typ E Vaterteil x Schlauchtülle
Gewinde:
BSP
Rohrgewinde

Das Whitworth-Gewinde, auch als Zoll-Gewinde bezeichnet wird heute als British Standard Thread (BSP) auf dem europäischem Festland angewendet.

Sir Joseph Whitworth führte es 1841 als ersten genormtes Gewinde in der Welt ein.

G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
1/2" - 1": max. 8 bar | 1 1/4" - 2": max. 6 bar
Material:
Polypropylen faserverstärkt
Farbe:
Schwarz UV-beständig
Beständigkeit:
beständig Agrarchemikalien, Flüssigdünger
  1. Stecker (Vaterteil) Polypropylen faserverstärkt
  2. Kupplung (Mutterteil) Polypropylen faserverstärkt
  3. Bolzen Stahl verzinkt
  4. Flachdichtung
    NBR
  5. Hebel V2A Edelstahl
  6. Ring Stahleloxiert
DOWNLOAD PP Polypropylen technische Charakteristik
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD RoHS Konformitätserklärung - HT CONNECT GmbH & Co. KG
