All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

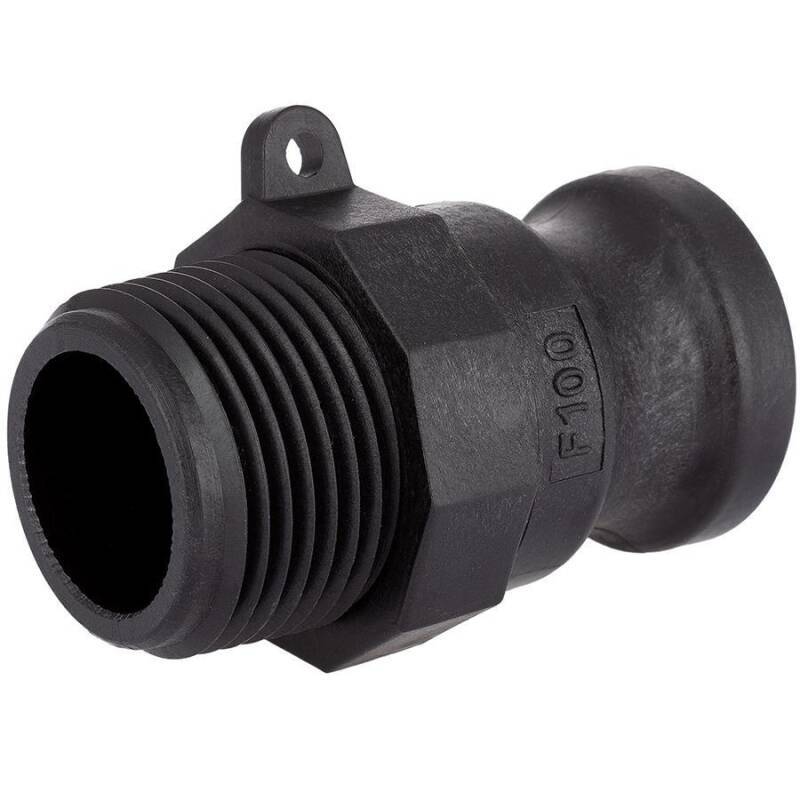

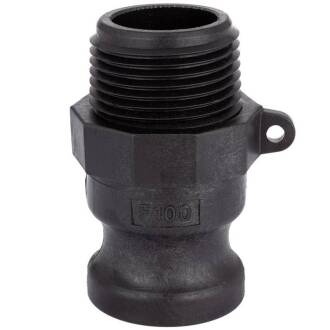

Kamlock PP Reinforced Type F Father-Part Male Part with External Thread
The Kamlock couplings, also known as lever arm couplings, originated in the USA and are certainly one of the most widely used coupling types worldwide. The basis was the standard of the US military.
The Kamlock hose coupling quick coupling program is distinguished by its simple closing mechanism. A family that logically consists of male and female parts, complementing each other, and thus finds universal use in agriculture, industry, and private households for attractive installations.
Selecting the right components can be done without much expertise, as the "male" and "female" parts only need to have identical sizes – in our offerings, the "B" size must always be identical. Connections with internal or external threads feature the European BSP pipe thread G and are compatible with all fittings with this thread type (BSP G).
Type F plug is compatible with Type B, C, and D couplings, as well as with end cap Type DC.
Connection:
Type F Male Part with External Thread
Thread:
BSP Pipe Thread ISO 228-1, non-self-sealing, sealed with Teflon tape or similar.
Temperature:
up to 60°C constant, temporarily 80°C
Working Pressure (PN):
1/2" - 1": max. 8 bar | 1 1/4" - 2": max. 6 bar
Material:
Reinforced Polypropylene
Color:
Black UV-resistant
- Plug (Male Part) Reinforced Polypropylene
- Coupling (Female Part) Reinforced Polypropylene
- Pin Galvanized Steel
- Flat Gasket NBR
- Lever V2A Stainless Steel
- Ring Anodized Steel
