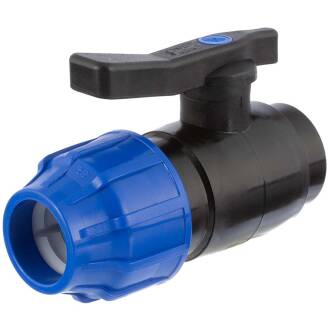

PP ball valve compression fitting x male thread with brass ball

SKU: PA0134
Auswahl Steuerzone / Lieferland
from
10,03 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
DN
G
H
L
M
Price
Quantity
PA0134.020.020
20mm x 1/2"
20
15
1/2" (20,96mm)
51,5
126,5
85
10,03 €*
pc:
PA0134.025.025
25mm x 3/4"
25
20
3/4" (26,44mm)
58
142
108
12,29 €*
pc:
PA0134.032.032
32mm x 1"
32
25
1" (33,25mm)
70
158
108
16,66 €*
pc:
PA0134.040.040
40mm x 1 1/4"
40
32
1 1/4" (41,91mm)
75
175
108
27,31 €*
pc:
PA0134.050.050
50mm x 1 1/2"
50
40
1 1/2" (47,81mm)
101
202
150
37,66 €*
pc:
PA0134.063.063
63mm x 2"
63
50
2" (59,61mm)
106
229
150
63,40 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PP ball valve brass ball clamp x male thread

PP polypropylene valves with compression fittings are used to connect polyethylene (PEBD, PEMD and HDPE) and PPR pipes quickly, easily and safely to supply pressurized (up to PN 16) and non-pressurized fluids. They are used in particular for drinking water supply in aqueducts and civil installations, irrigation, fire-fighting systems, geothermal systems, for transporting waste water and industrial water as well as compressed air. The ball is completely enclosed in its housing, which prevents stagnation that would affect the quality of the drinking water.

Connection:
Clamp x male thread
Thread:
BSP pipe thread G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, not self-sealing, sealing with hemp, sealing paste or similar.
Temperature:
-15°C to +80°C
Working pressure (PN):
max. PN 16 at 20°C, medium water
Drinking water regulations:
DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011
Housing material:
PP polypropylene
Material ball and shaft:
Brass CW617N (suitable for drinking water pipes)
Seal:
PTFE (Teflon)
Color:
Black, union nut blue

Plastic Alfa Arbeitstemperatur und Durchflussrate

DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
