All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

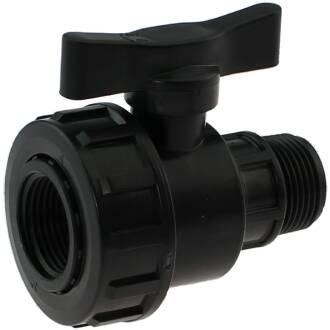

PP polypropylene ball valve, female-to-male thread
Ideal as a drain cock on a depressurized or low-pressure system (pond, pool solar system, IBC container system, tank, canister, etc.)
Connection:
Internal x external thread
Thread:
BSP pipe thread G, not self-sealing, seal with Teflon tape or similar.
Temperature:
0°C to 60°C, briefly up to 80°C. Medium: water
Ball seal:
HDPE
O-ring:
NBR
Color:
Black
Application:
Important: The thread of the union nut on each ball valve or other fitting cannot be combined with threaded fittings and is intended only for screwing onto the ball valve. This thread is not standardized and varies from manufacturer to manufacturer
Important: When the ball valve is shut off, only loosen the union nut when it is not under pressure, otherwise the ball holder will not be fixed
Tip: A ball valve made of PP polypropylene offers advantages in terms of low weight, UV resistance and use at higher temperatures: the ideal ball valve for use in UV radiation or warmer water, such as when used on a pool solar heater in connection with a swimming pool or solar hose
- suitable for transporting drinking water, wine, beverages and other nutritious liquids
- absolutely non-toxic, odorless and tasteless
- resistant to inorganic salts in aqueous solutions, weak organic acids and alkalis, alcohol and some oils
- very good mechanical properties. Resistant to washing chemicals and similar
- protects as an electrically insulating material against electrochemical corrosion and perforation caused by stray currents
- weather and UV resistant
- Material: Polypropylene PPH, PPC, FV-PA
- Temperature range: 0°C to 60°C, briefly 80°C
