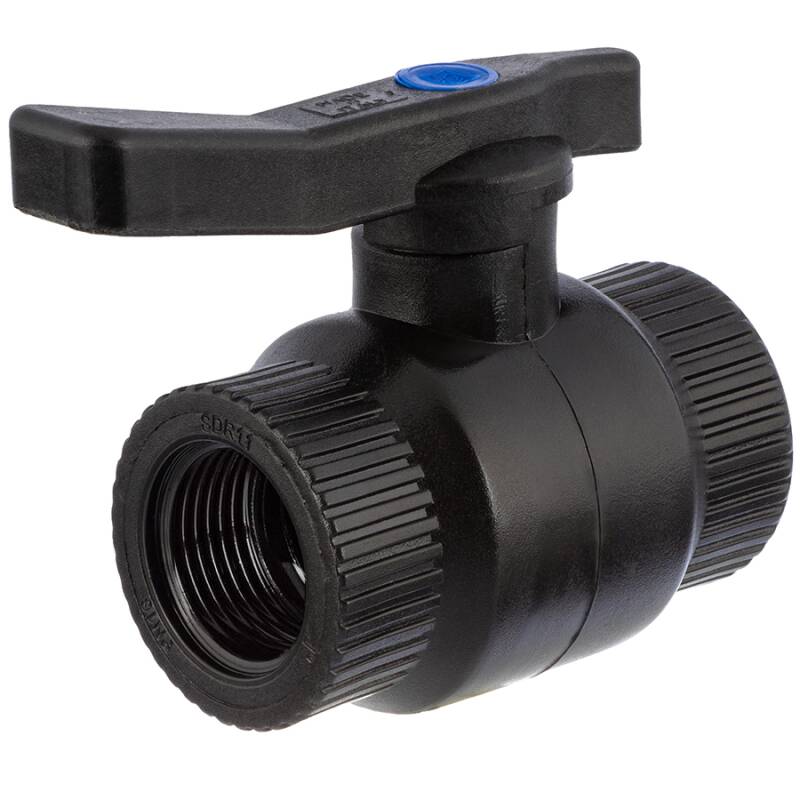

PP ball valve with female thread and brass ball

7,31 €

including 19% VAT., plus shipping

Item number: PA0130

How to measure a threaded fitting

Item no.	Variation	H	L	M	Ø	Weight	Price	Quantity
PA0130.000.020	1/2"	51,5	68,5	85	1/2" (20,96mm)	111	7,31 €^*	pc.:
PA0130.000.025	3/4"	58	78	108	3/4" (26,44mm)	8,83 €^*	pc.:
PA0130.000.032	1"	70	92,5	108	1" (33,25mm)	303	11,52 €^*	pc.:
PA0130.000.040	1 1/4"	75	101	108	1 1/4" (41,91mm)	21,16 €^*	pc.:
PA0130.000.050	1 1/2"	101	117	150	1 1/2" (47,80mm)	30,54 €^*	pc.:
PA0130.000.063	2"	106	136	150	2" (59,61mm)	1158	35,74 €^*	pc.:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PP Kugelhahn Messingkugel 2fach Innengewinde

Anschluss:

2fach Innengewinde

Gewinde:

BSP G, , Abdichtung mit Teflonband o.ä.

Zertifikat:

KIWA

Kugel:

Messingkugel verchromt

Temperatur:

bis 80°C

Arbeitsdruck ():

max. 16 bar bei 20°C

Material:

PP Polypropylen

Farbe:

Schwarz

Arbeitsdruck max. 16 bar (240 psi) bei 20°C - voller Durchlass
Betriebstemperatur max. 80°C
für Trinkwasser und nährende Flüssigkeiten, Wein etc.) geeignet - KIWA Zertifizierung
wetter-, UV- und Ozon-stabil
verchromte Messingkugel - kratzsicher auch bei Schmutzwasser
nach internationalen Standards gefertigt: ISO 9393-1:2004, ISO 9393-2:2005, UNI EN 10226-1, -2:2006
konform mit den Normen UNI EN 712, UNI EN 713,UNI EN 715, ISO 14236, UNI EN 10226-1,-2, ANSI/ASME B1.20.1 - UNI EN 1092-1
konform mit den Standards UNI 9561, UNI EN 712, UNI EN 713,UNI EN 715, ISO 14236, UNI EN 10226-1,-2, ANSI/ASME B1.20.1 - UNI EN 1092-1- ANSI, UNI 9561
für jederzeit lösbare Klemmverbindungen mit Hart-Rohr (PE-Rohr, PVC-Rohr) und PVC Flexschlauch

Steckverbindung PPCV/PPGF

Schraube Stahl

PPGF Handgriff

Messing Stift

O-Ring

Körper PPGF

verchromte Messingkugel

O-Ring PTFE

PP Klemm Fittings für den universellen Einsatz bei Brauchwasser, Trinkwasser im privatem Bereich, Transport von nährenden Lösungen sowie industriellen Anforderungen
