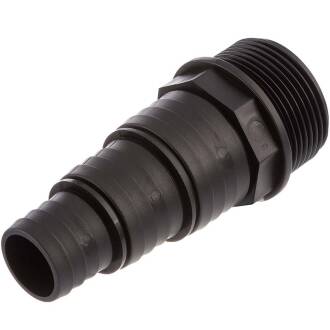

PP graduated hose tail with male thread

from
1,80 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Item no.
Variation
DN
DN(1)
DN(2)
E
G1
H
L
Price
Quantity
PF0805.020.019
1/2" x 19/13/10mm
19
13
10
27
1/2" (20,96mm)
97
14,5
1,80 €*
pc:
PF0805.025.025
3/4" x 25/19/13mm
25
20
13
32,5
3/4" (26,44mm)
98,5
16
1,95 €*
pc:
PF0805.032.025
1" x 25/20/13mm
25
20
13
44
1" (33,25mm)
96
17
2,56 €*
pc:
PF0805.032.032
1" x 32/25/19mm
32
25
19
40
1" (33,25mm)
101
18,5
2,40 €*
pc:
PF0805.040.038
1 1/4" x 38/32/25mm
38
32
25
47
1 1/4" (41,91mm)
103,5
21
2,78 €*
pc:
PF0805.050.038
1 1/2" x 38/32/25mm
38
32
25
54
1 1/2" (47,80mm)
103,5
21
4,45 €*
pc:
PF0805.050.040
1 1/2" x 40/32/25mm
40
32
25
58
1 1/2" (47,80mm)
146
19
8,29 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PP Stufenschlauchtülle Aussengewinde x Tülle 3stufig

Anschluss:
Aussengewinde x Stufenschlauchtülle 3stufig
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
0°C bis 80°C
Arbeitsdruck (PN):
max. 6 bar bei 20°C
Material:
PP Polypropylen glasfaserverstärkt
Farbe:
Schwarz ähnl. RAL 9011
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig
DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD RoHS Konformitätserklärung - Bucchi s.R.l.
