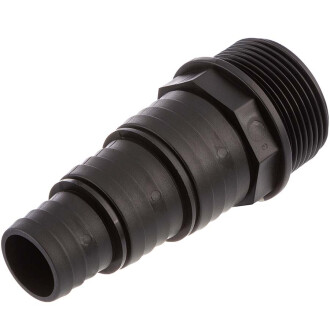

PP Step Hose Nozzle with External Thread

SKU: PF0805
Auswahl Steuerzone / Lieferland
from
1,80 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
DN
DN(1)
DN(2)
E
G1
H
L
Price
Quantity
PF0805.020.019
1/2" x 19/13/10mm
19
13
10
27
1/2" (20,96mm)
97
14,5
1,80 €*
pc:
PF0805.025.025
3/4" x 25/19/13mm
25
20
13
32,5
3/4" (26,44mm)
98,5
16
1,98 €*
pc:
PF0805.032.025
1" x 25/20/13mm
25
20
13
44
1" (33,25mm)
96
17
3,72 €*
pc:
PF0805.032.032
1" x 32/25/19mm
32
25
19
40
1" (33,25mm)
101
18,5
2,40 €*
pc:
PF0805.040.038
1 1/4" x 38/32/25mm
38
32
25
47
1 1/4" (41,91mm)
103,5
21
2,78 €*
pc:
PF0805.050.038
1 1/2" x 38/32/25mm
38
32
25
54
1 1/2" (47,80mm)
103,5
21
4,45 €*
pc:
PF0805.050.040
1 1/2" x 40/32/25mm
40
32
25
58
1 1/2" (47,80mm)
146
19
8,29 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PP Step Hose Nozzle with External Thread x Nozzle 3-Step

Connection:
External Thread x 3-Step Hose Nozzle
Thread:
BSP Pipe Thread G, non-self-sealing, sealing with Teflon tape or similar.
Temperature:
0°C to 80°C
Operating Pressure (PN):
max. 6 bar at 20°C medium water
Material:
PP Polypropylene Reinforced
Color:
Black similar to RAL 9011
  • Completely non-toxic, odorless, and tasteless
  • Suitable for the transport of drinking water, wine, beverages, and other nourishing liquids
  • Resistant to inorganic salts in aqueous solutions, weak organic acids and alkalis, alcohol, and partially oils
  • Very good mechanical properties against washing chemicals, etc.
  • Protects as an electrically insulating material against electrochemical corrosion and perforation caused by stray currents
  • Weather, ozone, and UV resistant
DOWNLOAD Polypropylene PP Temperature/Pressure Diagram
DOWNLOAD Thread Identification - or why 1" is not 25.4mm
DOWNLOAD Chemical Resistance of Plastics
DOWNLOAD RoHS Declaration - Bucchi s.R.l.
