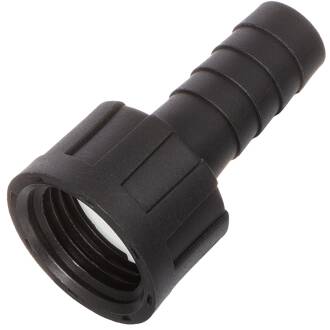

PP hose tail with female thread and nut

from
1,15 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Product picture
Item no.
Variation
D
DN
E
G
H
L(a)
L(1)
Price
Quantity
PP hose tail with female thread and nut
PF0807.012.007
1/4" x 7mm
4
7
20
1/4" (13,16mm)
38
17
8,5
1,76 €*
pc:
PP hose tail with female thread and nut
PF0807.016.009
3/8" x 9mm
5
9
23
3/8" (16,66mm)
47
22
9,5
1,95 €*
pc:
PP hose tail with female thread and nut
PF0807.016.010
3/8" x 10mm
6
10
23
3/8" (16,66mm)
45
22
10
1,95 €*
pc:
PP hose tail with female thread and nut
PF0807.016.012
3/8" x 12mm
7,5
12
23
3/8" (16,66mm)
47,5
27
9,5
1,95 €*
pc:
PP hose tail with female thread and nut
PF0807.020.010
1/2" x 10mm
8
10
28
1/2" (20,96mm)
50
25
10
2,19 €*
pc:
PP hose tail with female thread and nut
PF0807.020.013
1/2" x 13mm
8,5
13
27,5
1/2" (20,96mm)
49
25
9,5
1,15 €*
pc:
PP hose tail with female thread and nut
PF0807.020.016
1/2" x 16mm
10
16
27,5
1/2" (20,96mm)
58,5
30,5
10
1,23 €*
pc:
PP hose tail with female thread and nut
PF0807.025.012
3/4" x 12mm
7,5
12
33
3/4" (26,44mm)
53
25
11
1,32 €*
pc:
PP hose tail with female thread and nut
PF0807.025.013
3/4" x 13mm
8,5
13
33
3/4" (26,44mm)
49,5
25
11,5
1,32 €*
pc:
PP hose tail with female thread and nut
PF0807.025.016
3/4" x 16mm
10
16
33
3/4" (26,44mm)
56,5
30,5
11
1,39 €*
pc:
PP hose tail with female thread and nut
PF0807.025.019
3/4" x 19mm
14
19
33
3/4" (26,44mm)
59
30
11
1,39 €*
pc:
PP hose tail with female thread and nut
PF0807.025.020
3/4" x 20mm
13
20
33
3/4" (26,44mm)
55,5
30,5
11
1,39 €*
pc:
PP hose tail with female thread and nut
PF0807.032.019
1" x 19mm
14
19
40
1" (33,25mm)
60
30
12
1,63 €*
pc:
PP hose tail with female thread and nut
PF0807.032.020
1" x 20mm
13
20
40,5
1" (33,25mm)
57
30,5
11,5
1,63 €*
pc:
PP hose tail with female thread and nut
PF0807.032.025
1" x 25mm
19
25
40,5
1" (33,25mm)
63,5
36
12
1,68 €*
pc:
PP hose tail with female thread and nut
PF0807.040.020
1 1/4" x 20mm
13
20
51
1 1/4" (41,91mm)
61
30,5
12,5
2,07 €*
pc:
PP hose tail with female thread and nut
PF0807.040.025
1 1/4" x 25mm
19
25
51
1 1/4" (41,91mm)
63,5
36
11,5
2,34 €*
pc:
PP hose tail with female thread and nut
PF0807.040.032
1 1/4" x 32mm
24
32
51
1 1/4" (41,91mm)
64,5
36
11,5
2,37 €*
pc:
PP hose tail with female thread and nut
PF0807.050.038
1 1/2" x 38mm
32
38
57
1 1/2" (47,80mm)
81
43
12
3,86 €*
pc:
PP hose tail with female thread and nut
PF0807.050.040
1 1/2" x 40mm
33
40
57,5
1 1/2" (47,80mm)
82
43
12
3,86 €*
pc:
PP hose tail with female thread and nut
PF0807.063.050
2" x 50mm
42
50
71
2" (59,61mm)
84,5
44
12
5,11 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PP-Schlauchtülle Überwurfmutter x Tülle

Anschluss:
Überwurfmutter Innengewinde x Schlauchtülle
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung Tülle über Flachdichtung
Temperatur:
0°C bis 80°C
Arbeitsdruck (PN):
max. 6 bar bei 20°C
Material:
PP Polypropylen glasfaserverstärkt
Dichtung:
Flachdichtung EPDM (lebensmittelecht)
Farbe:
Grau bzw. Schwarz (siehe Einzelbild), Dichtung Farbe Weiss
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig
DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD RoHS Konformitätserklärung - Bucchi s.R.l.

Others

PF0807.012.007

1/4" x 7mm .STEP-file

PF0807.016.009

3/8" x 9mm .STEP-file

PF0807,016.010

3/8" x 10mm .STEP-file

PF0807.016.012

3/8" x 12mm .STEP-file

PF0807.020.010

1/2" x 10mm .STEP-file

PF0807.020.013

1/2" x 13mm .STEP-file

PF0807.020.016

1/2" x 16mm .STEP-file

PF0807.025.010

3/4" x 10mm .STEP-file

PF0807.025.012

3/4" x 12mm .STEP-file

PF0807.025.013

3/4" x 13mm .STEP-file

PF0807.025.016

3/4" x 16mm .STEP-file

PF0807.025.019

3/4" x 19mm .STEP-file

PF0807.025.020

3/4" x 20mm .STEP-file

PF0807.032.019

1" x 19mm .STEP-file

PF0807.032.020

1" x 20mm .STEP-file

PF0807.032.025

1" x 25mm .STEP-file

PF0807.040.020

1 1/4" x 20mm .STEP-file

PF0807.040.025

1 1/4" x 25mm .STEP-file

PF0807.040.032

1 1/4" x 32mm .STEP-file

PF0807.050.038

1 1/2" x 38mm .STEP-file

PF0807.050.040

1 1/2" x 40mm .STEP-file

PF0807.063.050

2" x 50mm .STEP-file
