All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

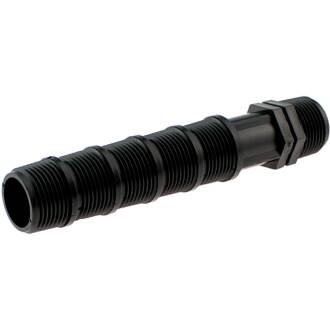

PP Polypropylene Extension Pipe, Adjustable, Double Nipple with 2x External Thread
Connection:
2x External Thread
Thread:
BSP Pipe Thread G, non-self-sealing, seal with Teflon tape or similar.
Temperature:
0°C to 80°C
Working Pressure (PN):
Max. 10 bar at 20°C
Material:
PP Polypropylene reinforced
Color:
Black
Double Nipple Adjustable - Always the Right Length
Individually adjustable in five steps for the ideal length










- Absolutely non-toxic, odorless, and tasteless
- Suitable for the transport of drinking water, wine, beverages, and other nutrient-rich liquids
- Resistant to inorganic salts in aqueous solutions, weak organic acids and alkalis, alcohols, and partially oils
- Very good mechanical properties against washing chemicals, etc.
- Protects as an electrically insulating material against electrochemical corrosion and perforation caused by stray currents
- Weather, ozone, and UV resistant
DOWNLOAD Polypropylene PP Temperature/Pressure Diagram
DOWNLOAD The Thread Identification - or why 1" is not exactly 25.4mm
DOWNLOAD Chemical Resistance of Plastics
DOWNLOAD RoHS Conformity Declaration - Bucchi s.R.l.
