All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

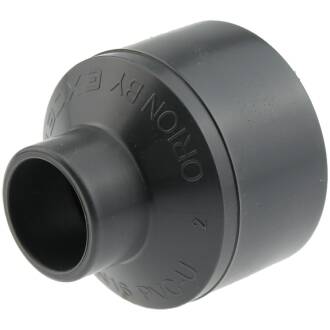

PVC-U reducing socket, solvent cement socket/socket x solvent cement socket
| glueing socket/ glueing spigot x glueing socket | |
| temperature: | up to 45°C constant, 60°C short-term |
| working pressure (PN): | max. 16 bar at 20°C |
| Material: | pVC-U |
| Color: | gray |
 |
Injection mold sectionThe section point for PVC-U fittings cannot always be placed in locations that are not immediately visible. |
Example of use: Reducing coupler 40/50 x 25mm
Left: You reduce a pipe A-ø 40mm to a pipe A-ø 25mmRight: You reduce a coupler I-ø 50mm to a pipe A-ø 25mm
DOWNLOAD PVC-U technical characteristics
DOWNLOAD Gluing PVC-U pipes and fittings
DOWNLOAD the thread key - or why 1" is not 25.4mm
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External features of injection-molded fittings
DOWNLOAD RoSH confirmation – Coraplax CH PVC-U fittings and valves
DOWNLOAD Harmlessness Contact with drinking water and food - Coraplax PVC-U Fittings
