All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

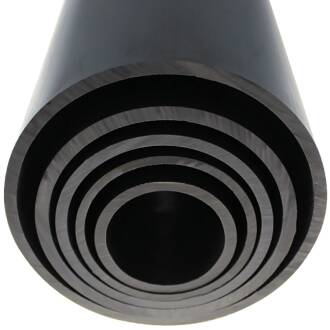

PVC-U Pipe Industrial Pipe Grey 110 x 6.6mm - PN 16 bar
OD:
110mm
Wall thickness:
min. 6.6mm
Temperature:
up to 45°C continuous, short-term 60°C
Working pressure:
EN = EN 1452-2
Material:
PVC-U
Colour:
Grey
Note: Nominal pressure up to 90mm, ISO 4065 based on design coefficient C = 2.5. Nominal pressure from 110mm, ISO 4065 based on design coefficient C = 2.0.
- Dimensions according to EN 1452-2
- Delivery length +/- 1%
- 1m length without socket
- 2m length without socket
- 5m length with socket
- The unit DN results from the wall thickness and is to be regarded according to DIN 8062 as nominal plus tolerance and not a usable dimension
- Due to production processes, streaks or slight scratches may occur
Our quality - no compromises
- exclusively virgin material - no recycled material
- LEAD FREE - free from lead or other heavy metals
- Top quality at a top price
Shipping cost information Germany 1m pipes
:
from 2 - 6 pipes shipping costs 7.90 EUR gross
7 - 12 pipes shipping costs 15.80 EUR gross
13 - 18 pipes shipping costs 23.70 EUR gross
19 - 24 pipes shipping costs 31.60 EUR gross
25 - 30 pipes shipping costs 39.50 EUR gross
31 - 36 pipes shipping costs 47.40 EUR gross
37 - 42 pipes shipping costs 55.30 EUR gross
43 - 48 pipes shipping costs 63.20 EUR gross
49 - 54 pipes shipping costs 71.10 EUR gross
55 - 60 pipes shipping costs 79.00 EUR gross
61 - 66 pipes shipping costs 86.90 EUR gross
67 - 72 pipes shipping costs 94.80 EUR gross
73 - 78 pipes shipping costs 102.70 EUR gross
79 - 84 pipes shipping costs 110.60 EUR gross
85 - 90 pipes shipping costs 118.50 EUR gross
91 - 96 pipes shipping costs 126.40 EUR gross
97 - 102 pipes shipping costs 134.30 EUR gross
from 103 pipes shipping costs 139.90 EUR gross
Shipping cost information Germany 2m pipes :
1 - 3 pipes shipping costs 7.90 EUR gross
4 - 6 pipes shipping costs 15.80 EUR gross
7 - 9 pipes shipping costs 23.70 EUR gross
10 - 12 pipes shipping costs 31.60 EUR gross
13 - 15 pipes shipping costs 39.50 EUR gross
16 - 18 pipes shipping costs 47.40 EUR gross
19 - 21 pipes shipping costs 55.30 EUR gross
22 - 24 pipes shipping costs 63.20 EUR gross
25 - 27 pipes shipping costs 71.10 EUR gross
28 - 30 pipes shipping costs 79.00 EUR gross
31 - 33 pipes shipping costs 86.90 EUR gross
34 - 36 pipes shipping costs 94.80 EUR gross
37 - 39 pipes shipping costs 102.70 EUR gross
40 - 42 pipes shipping costs 110.60 EUR gross
43 - 45 pipes shipping costs 118.50 EUR gross
46 - 48 pipes shipping costs 126.40 EUR gross
49 - 51 pipes shipping costs 134.30 EUR gross
from 52 pipes shipping costs 139.90 EUR gross
